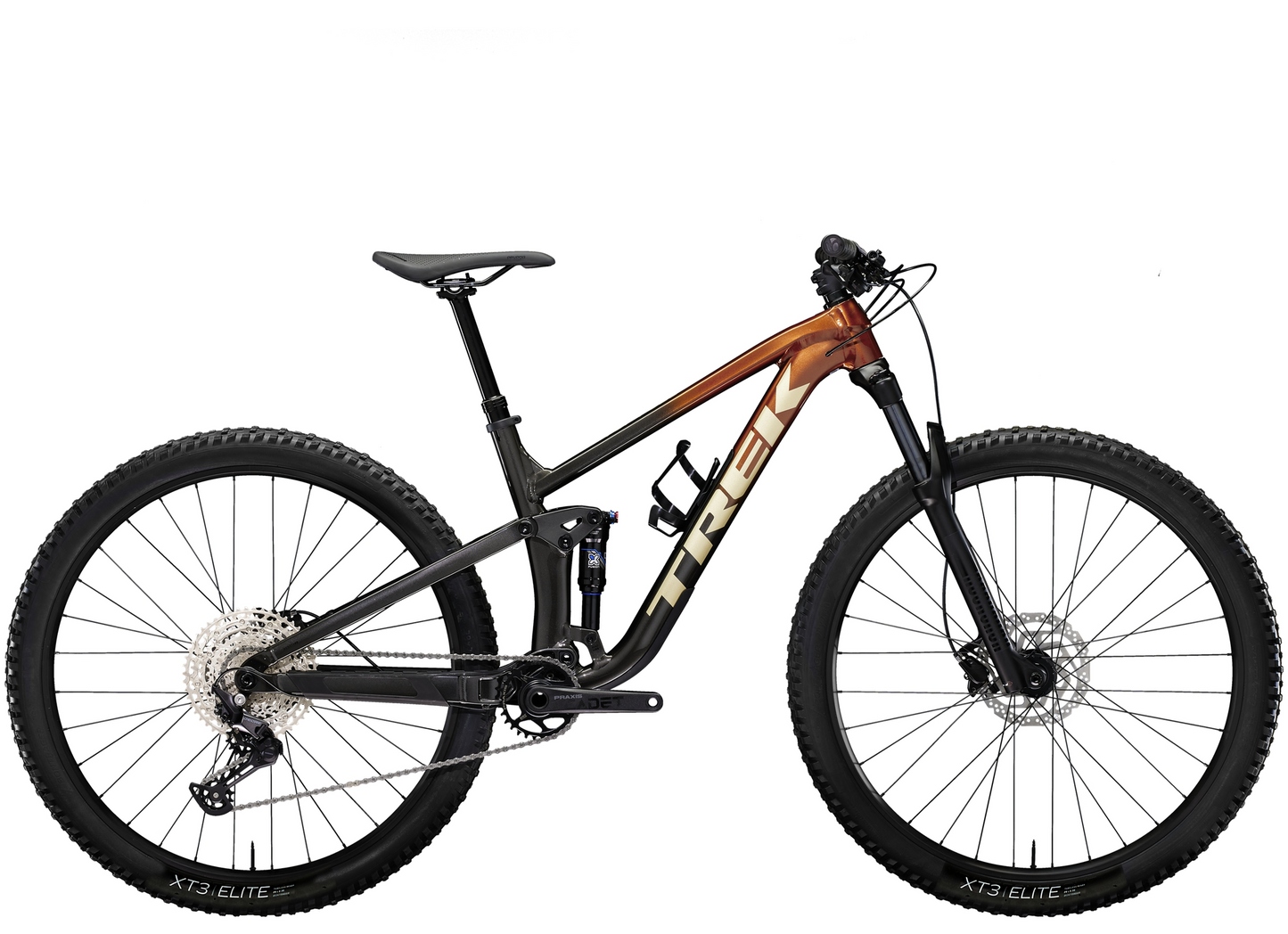

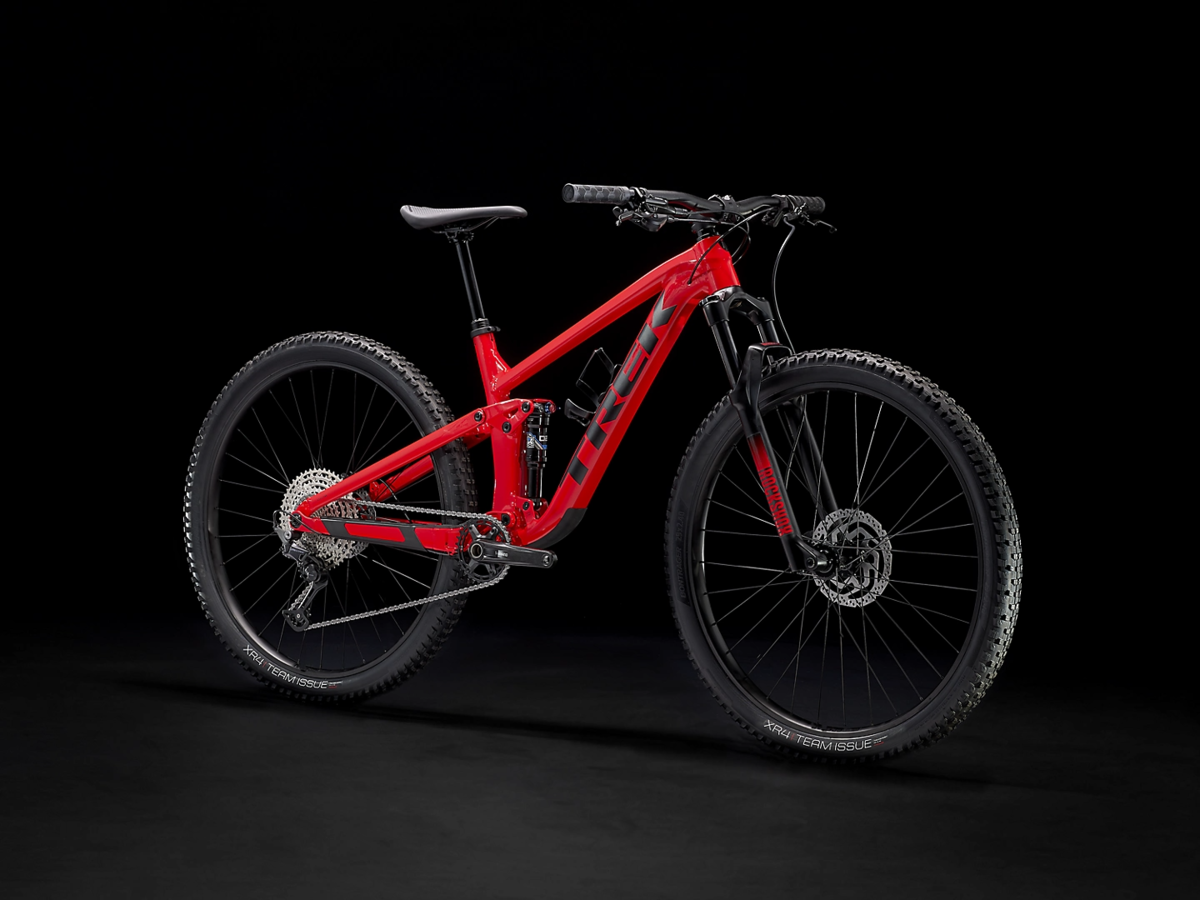

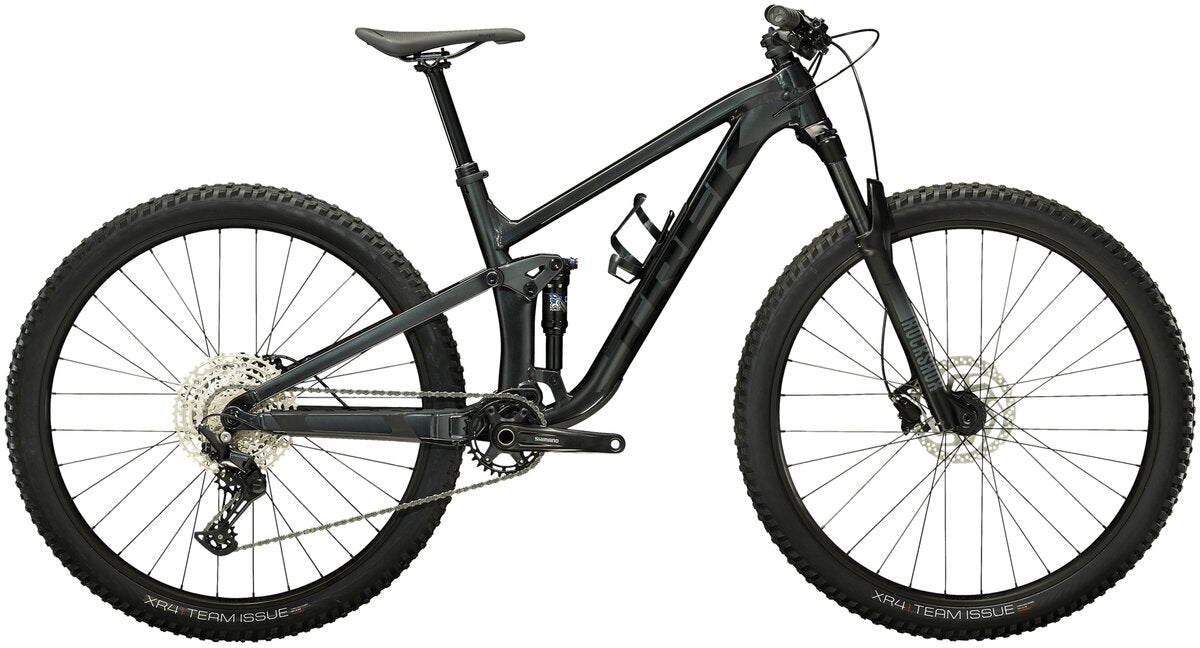

Trek Top Fuel 5
A Confident Trail Bike for New Riders
The Trek Top Fuel 5 is a full-suspension trail bike designed to offer beginner to intermediate riders a stable, smooth ride on various terrains. With its durable aluminum frame and user-friendly features, this bike is perfect for those looking to explore new trails with confidence and control.
Key Features:
- Alpha Aluminum Frame: Built to last, the aluminum frame is lightweight and responsive, making it easy to handle on both steep climbs and technical descents.
- RockShox Recon RL Fork: Featuring 120mm of travel, this fork delivers reliable performance, smoothing out bumps and obstacles for a comfortable ride.
- SRAM SX Eagle Drivetrain: The 12-speed SRAM SX Eagle drivetrain ensures efficient shifting across a wide range of gears, ideal for both beginner and intermediate riders.
- Mino Link Adjustable Geometry: Easily tweak the bike’s geometry to suit your riding style and terrain for improved handling on any trail.
- Bontrager Connection Wheels: Sturdy, tubeless-ready wheels that offer a balance of durability and performance for everyday trail adventures.
- Responsive Braking: The Shimano hydraulic disc brakes deliver consistent, powerful braking performance in all weather conditions.
Explore with Confidence
The Top Fuel 5 is perfect for riders who are new to trail riding but want a reliable, full-suspension bike to handle challenging terrain. Its solid construction and balanced performance make it an excellent entry-level choice for trail adventures.
Features:
- Frame Material: Aluminum
- Suspension: Full-Suspension (120mm front/120mm rear)
- Rider Skill Level: Beginner to Intermediate
- Terrain Focus: Trail Riding, Cross-Country
- Component Quality: Entry-Level
- Technology and Innovations: Basic Features
- Weight: Standard (Aluminum Frame)
- Wheel Size: 29"
- Travel: Mid Travel (120mm front/120mm rear)
- Geometry: Steep head tube (~67 degrees)
- Drivetrain: 1x Drivetrain
- Brakes: Hydraulic Disc Brakes
- Dropper Post: Yes
- Tire Width: Standard (2.3" - 2.5")
- Tubeless-Ready: Yes
- Pedal Type: Clipless-ready
- Internal Cable Routing: Yes
Sizing
Geometry
| Frame size number | 15.5" | 15.5" | 17.5" | 17.5" | 18.5" | 18.5" | 19.5" | 19.5" | 21.5" | 21.5" | 23.0" | 23.0" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame size letter | S | S | M | M | ML | ML | L | L | XL | XL | XXL | XXL |
| Geometry position | High | Low | High | Low | High | Low | High | Low | High | Low | High | Low |
| Wheel size | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| A — Seat tube | 39.5 | 39.5 | 42 | 42 | 43.5 | 43.5 | 45 | 45 | 50 | 50 | 54 | 54 |
| B — Seat tube angle | 70.4° | 70.0° | 70.4° | 70.0° | 70.4° | 70.0° | 70.4° | 70.0° | 70.4° | 70.0° | 70.4° | 70.0° |
| Effective seat tube angle | 76.4° | 76.0° | 76.4° | 76.0° | 76.4° | 76.0° | 76.4° | 76.0° | 76.4° | 76.0° | 76.4° | 76.0° |
| C — Head tube length | 10 | 10 | 10 | 10 | 10.5 | 10.5 | 11 | 11 | 12.5 | 12.5 | 13.5 | 13.5 |
| D — Head angle | 66.4° | 66.0° | 66.4° | 66.0° | 66.4° | 66.0° | 66.4° | 66.0° | 66.4° | 66.0° | 66.4° | 66.0° |
| E — Effective top tube | 56.7 | 56.8 | 59.7 | 59.8 | 61.4 | 61.5 | 63 | 63.1 | 65.3 | 65.4 | 67.5 | 67.6 |
| F — Bottom bracket height | 34.3 | 33.8 | 34.3 | 33.8 | 34.3 | 33.8 | 34.3 | 33.8 | 34.3 | 33.8 | 34.3 | 33.8 |
| G — Bottom bracket drop | 3.1 | 3.6 | 3.1 | 3.6 | 3.1 | 3.6 | 3.1 | 3.6 | 3.1 | 3.6 | 3 | 3.6 |
| H — Chainstay length | 43.4 | 43.5 | 43.4 | 43.5 | 43.4 | 43.5 | 43.4 | 43.5 | 43.4 | 43.5 | 43.4 | 43.5 |
| I — Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| J — Trail | 11.5 | 11.8 | 11.5 | 11.8 | 11.5 | 11.8 | 11.5 | 11.8 | 11.5 | 11.8 | 11.5 | 11.8 |
| K — Wheelbase | 115 | 115.1 | 118 | 118.1 | 119.7 | 119.8 | 121.4 | 121.5 | 124 | 124.1 | 126.5 | 126.5 |
| L — Standover | 71.9 | 71.5 | 74 | 73.5 | 74.5 | 74 | 75 | 74.5 | 76 | 75.5 | 77 | 76.5 |
| M — Frame reach | 42.4 | 42 | 45.4 | 45 | 46.9 | 46.5 | 48.4 | 48 | 50.4 | 50 | 52.4 | 52 |
| N — Frame stack | 59.2 | 59.5 | 59.2 | 59.5 | 59.7 | 60 | 60.1 | 60.5 | 61.5 | 61.8 | 62.4 | 62.7 |
Specs
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel |
|---|---|

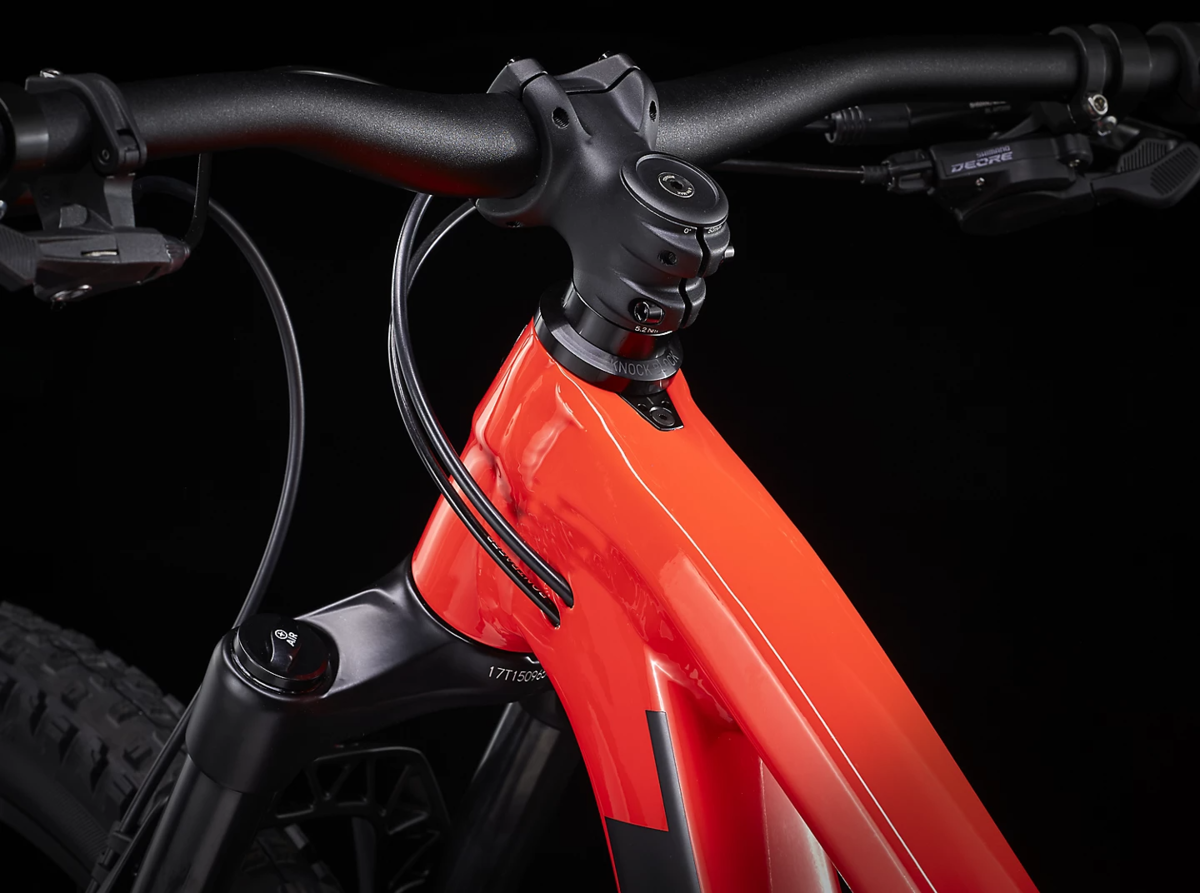

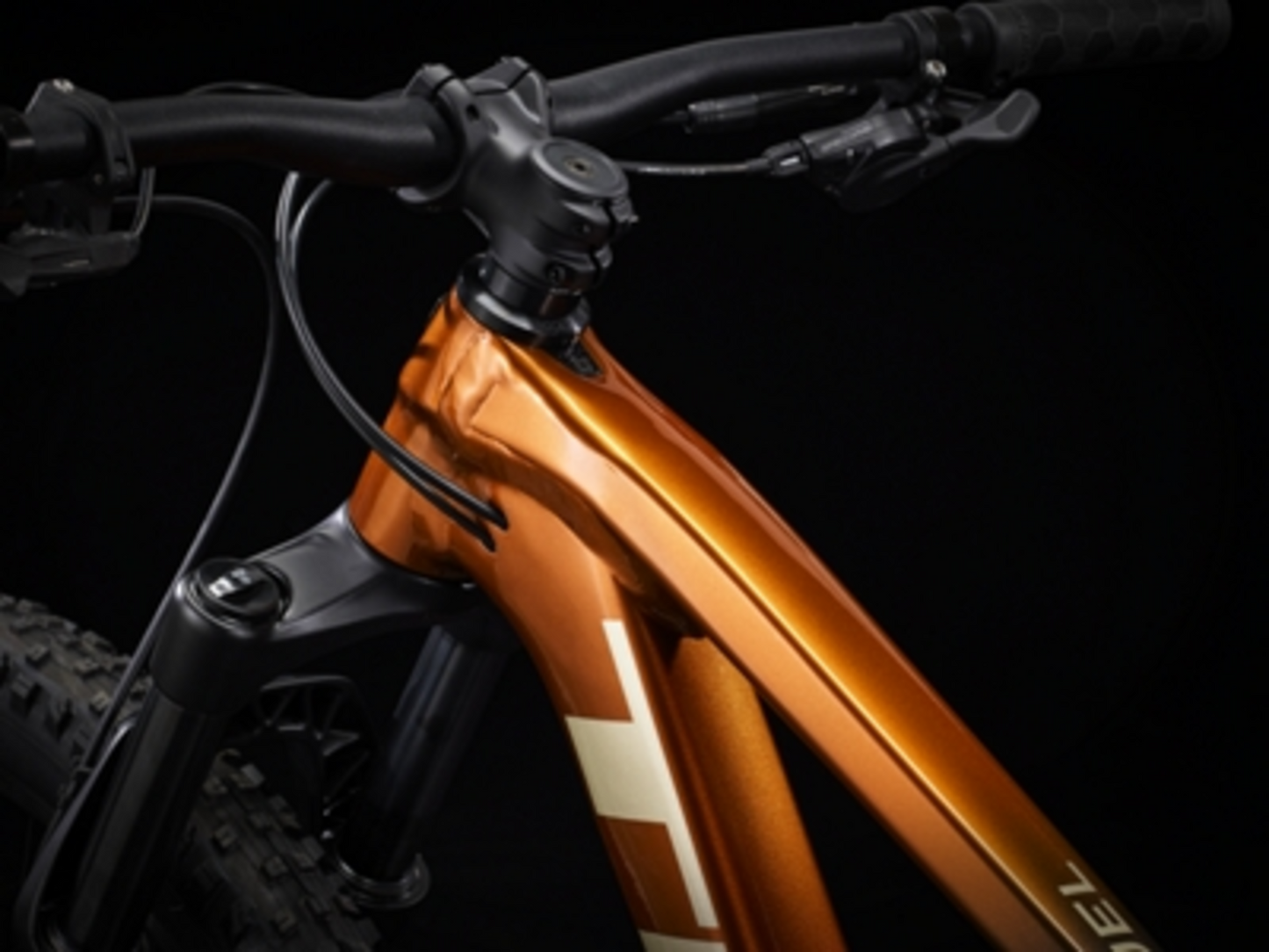

| Stem | Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length |
| Chain | Shimano Deore M6100, 12 speed |

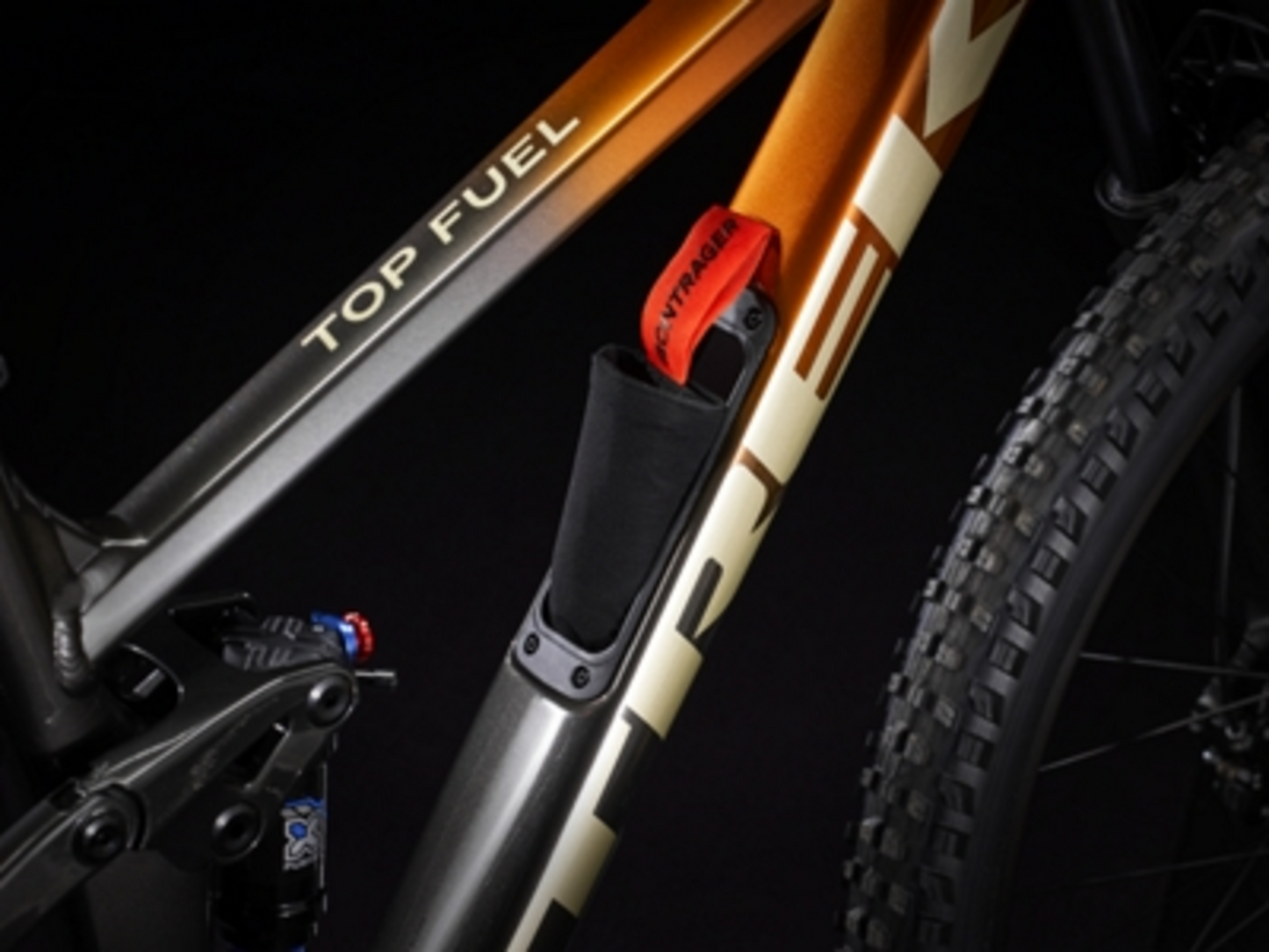

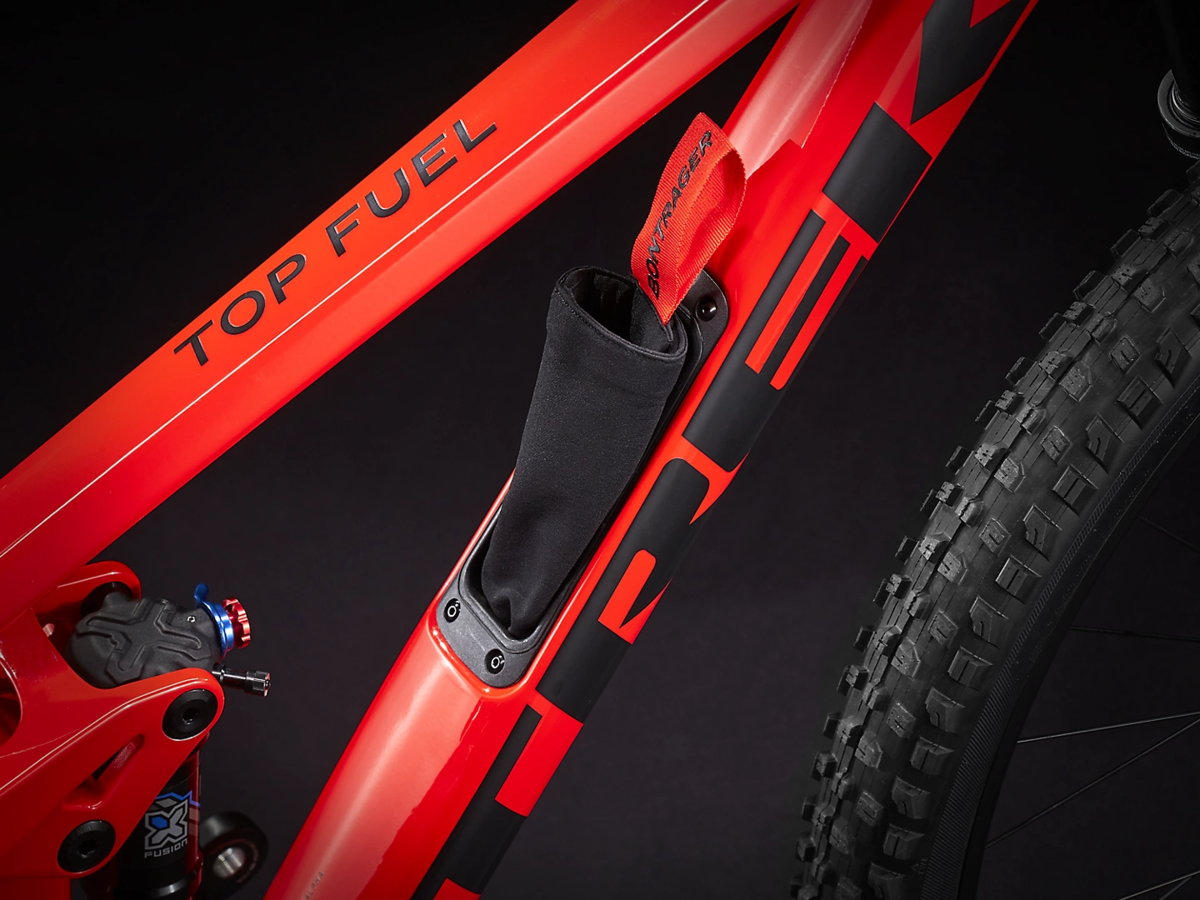

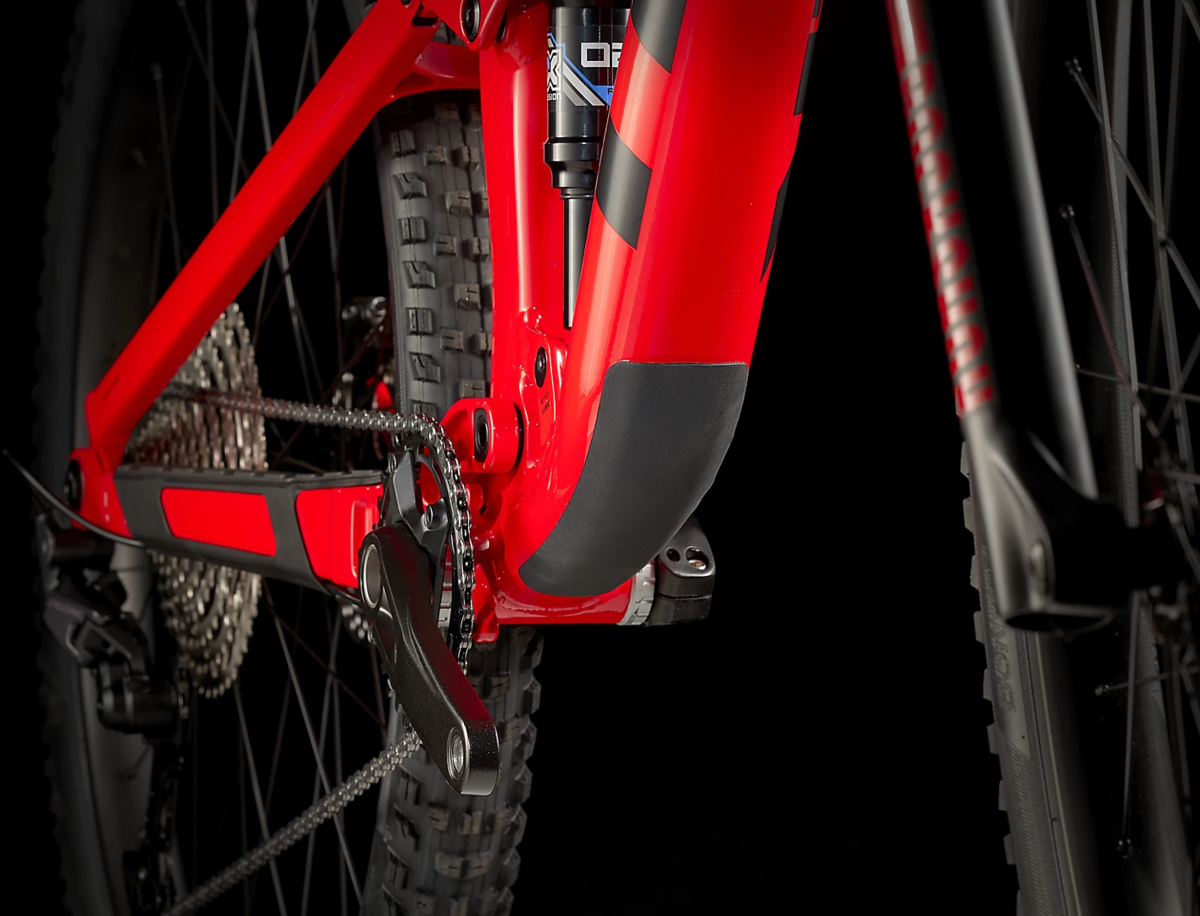

| Frame | Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel |

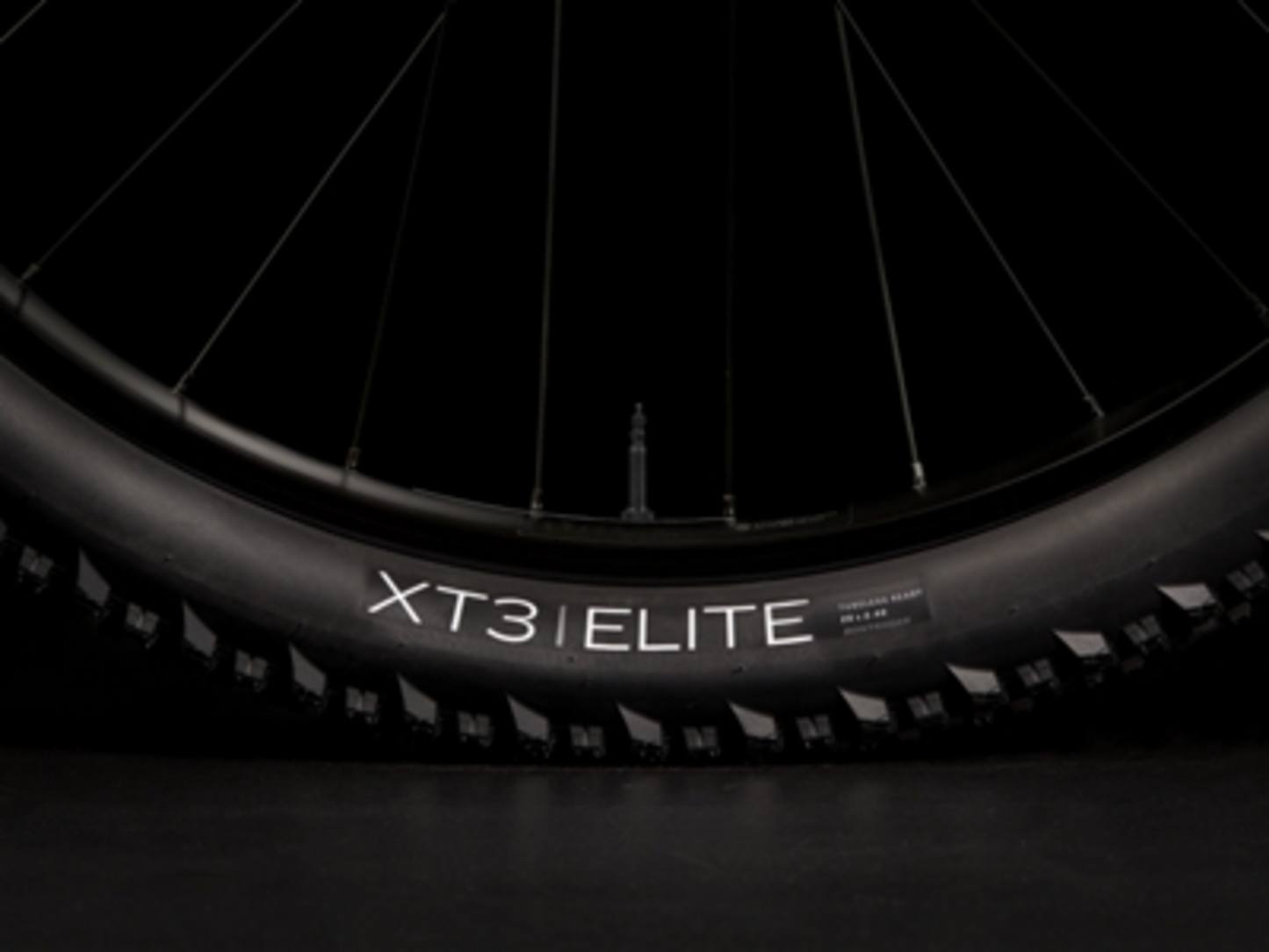

| Tires | Bontrager XT3 Elite, wire bead, 60 tpi, 29x2.40'' |

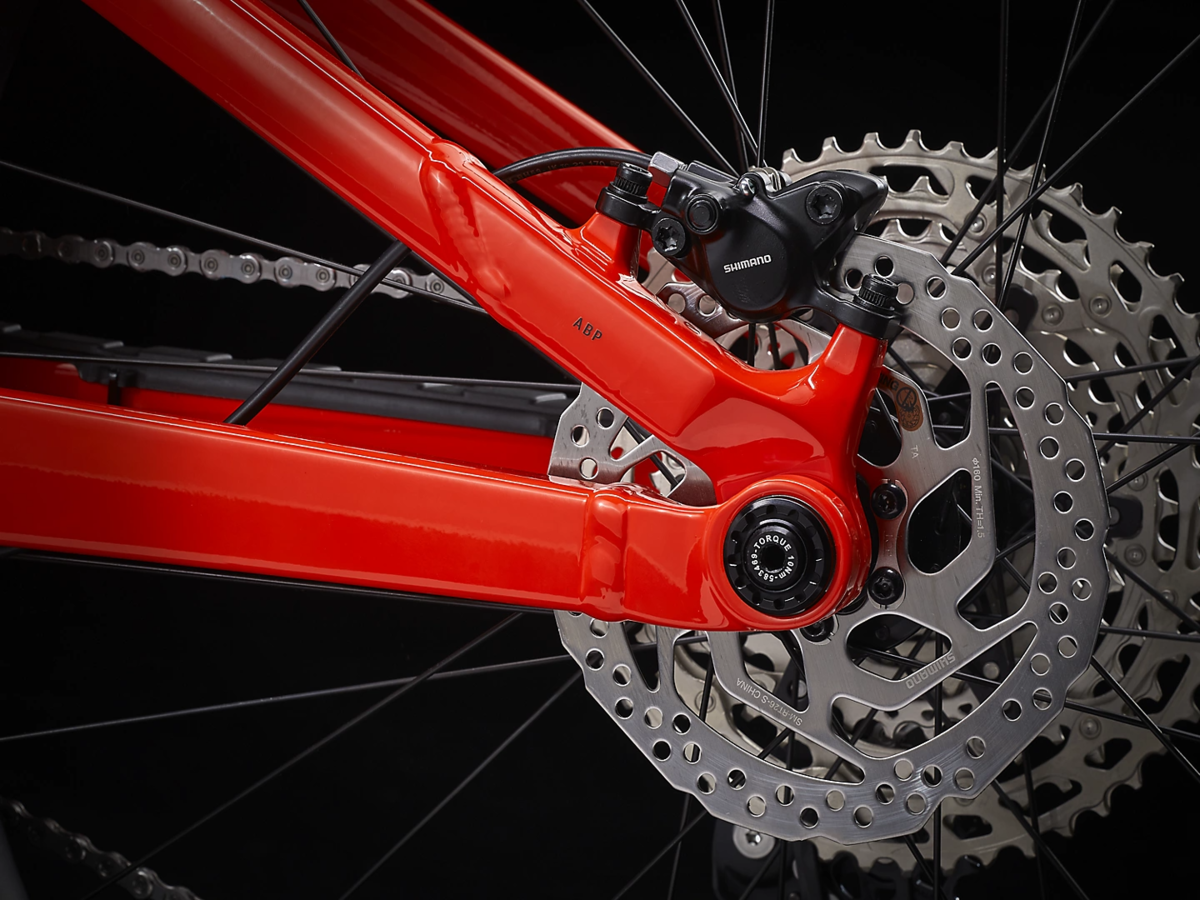

| Brakes | Shimano MT200 hydraulic disc |
| Rotors | Shimano RT26, 6-bolt,180mm // Shimano RT26, 6-bolt,160mm |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Headset | Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |

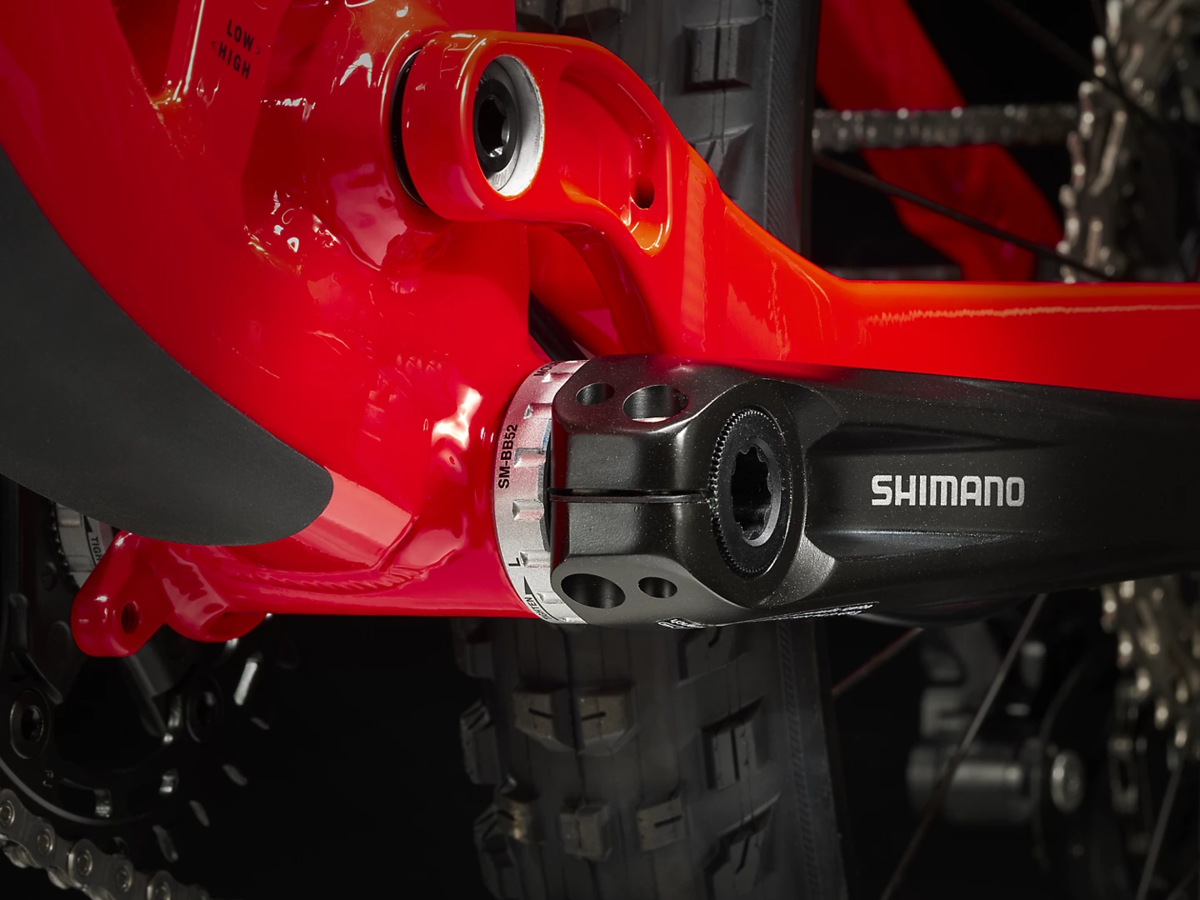

| Crankset | Shimano MT512, 30T ring, 55mm chainline, 170mm length |
| Seatpost | TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length |
| Shifters | Shimano Deore M6100, 12 speed |
| Handlebars | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |

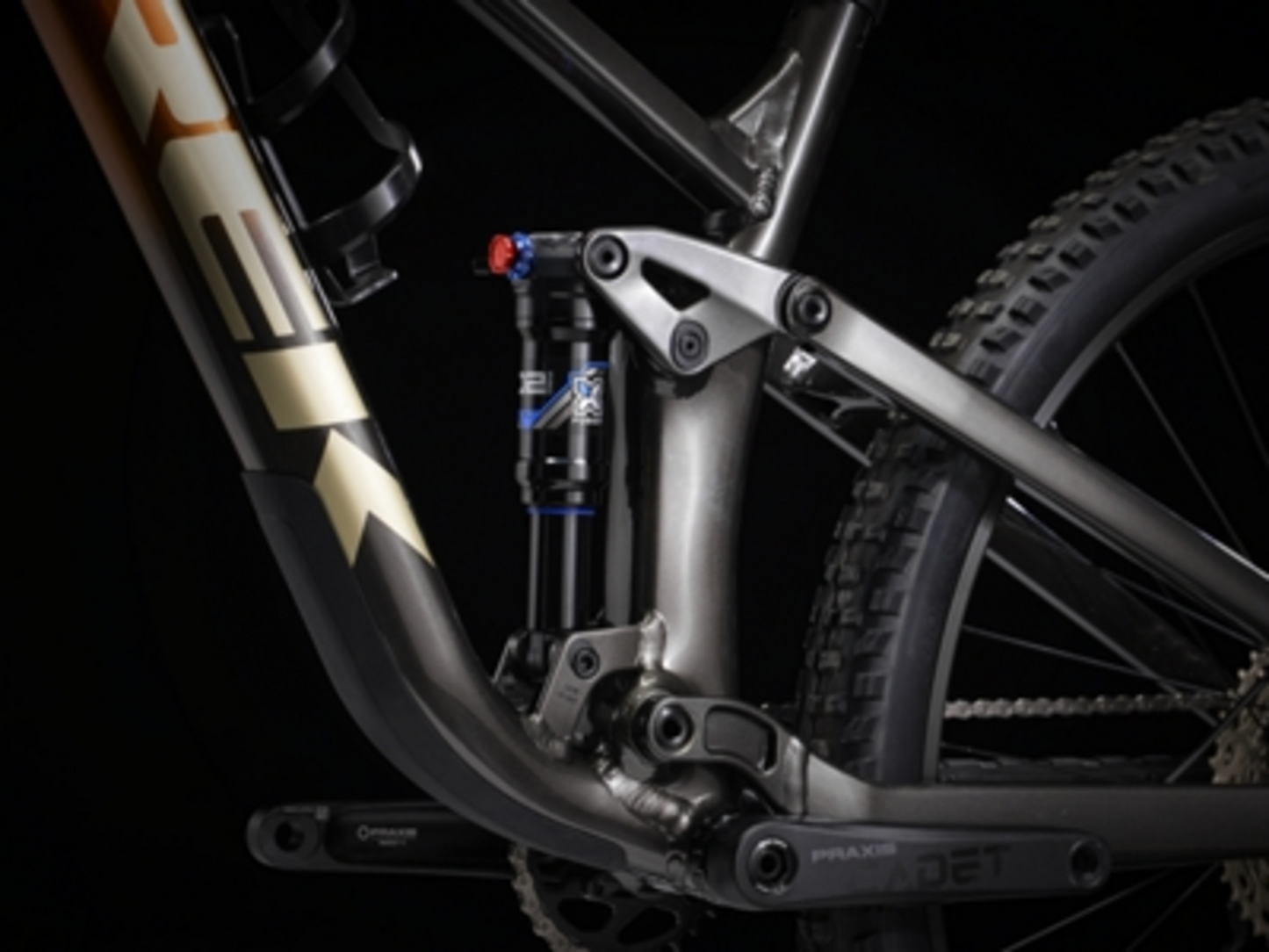

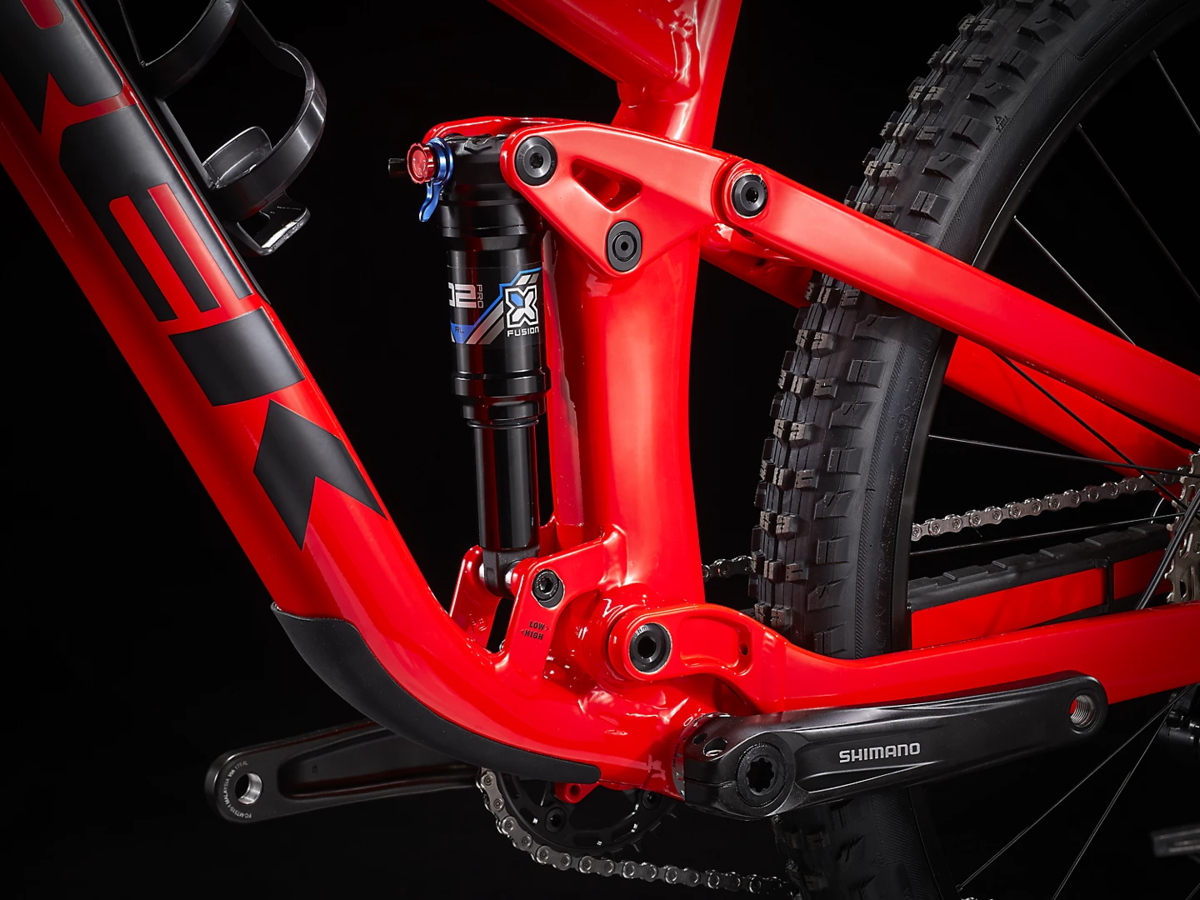

| Rear Shock | X-Fusion Pro 2, 2-position damper, 185mm x 50mm |
| Tape/Grips | Bontrager XR Trail Comp, nylon lock-on |
| Bottom Bracket | Shimano BB-MT501 BSA |

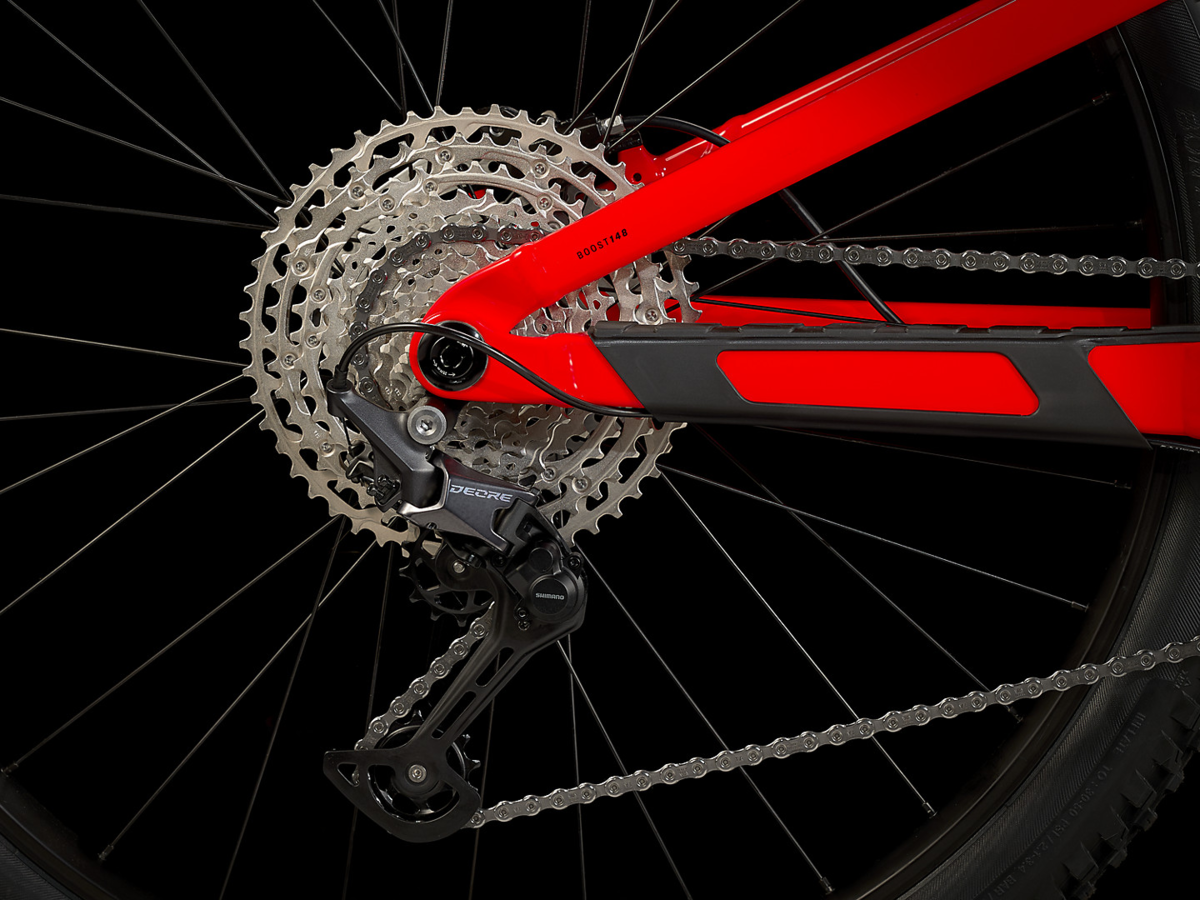

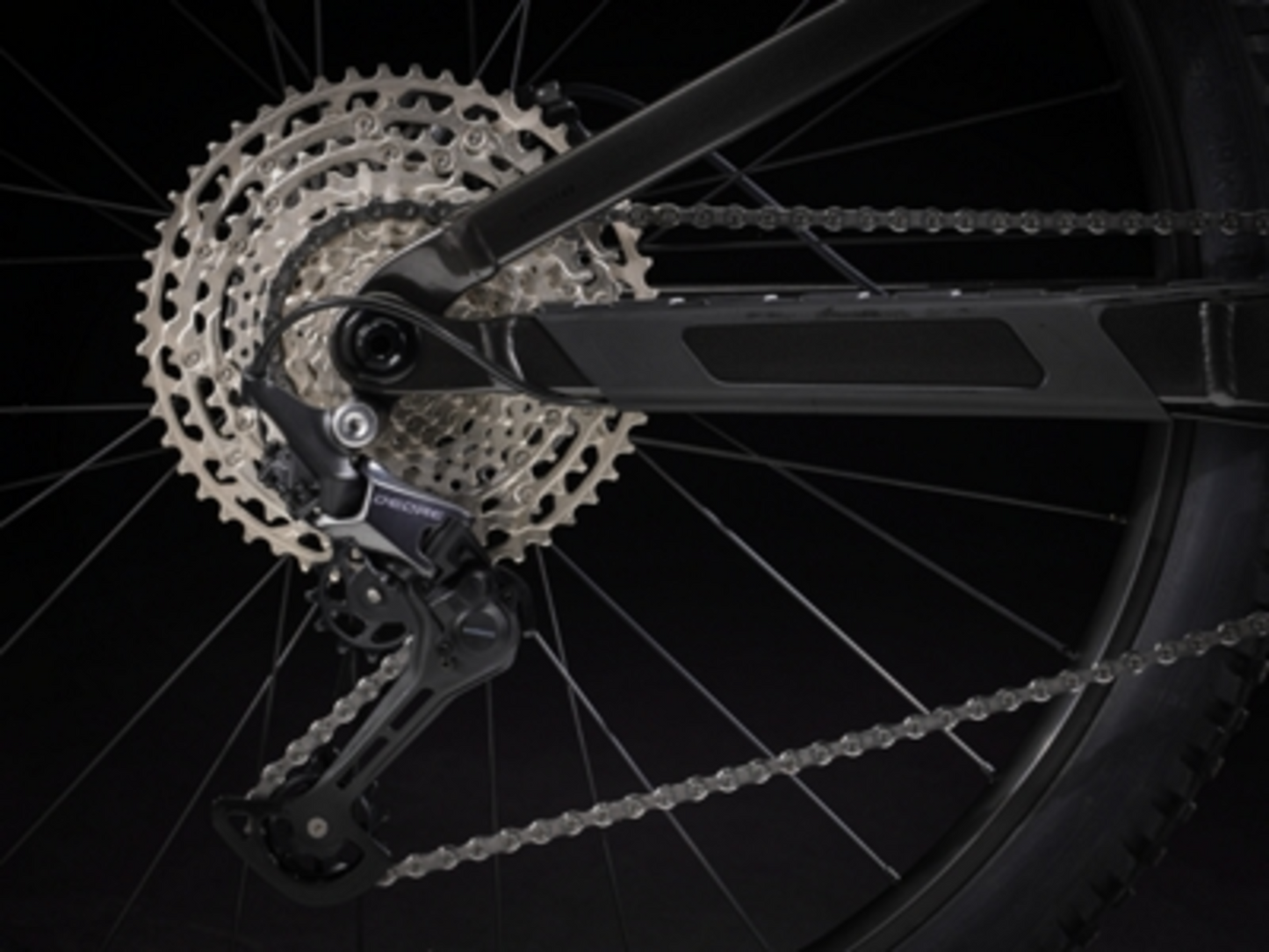

| Rear Derailleur | Shimano Deore M6100, long cage |
| Cassette/Freewheel | Shimano Deore M6100, 10-51, 12 speed |
* Subject to change without notice.
