Product Details

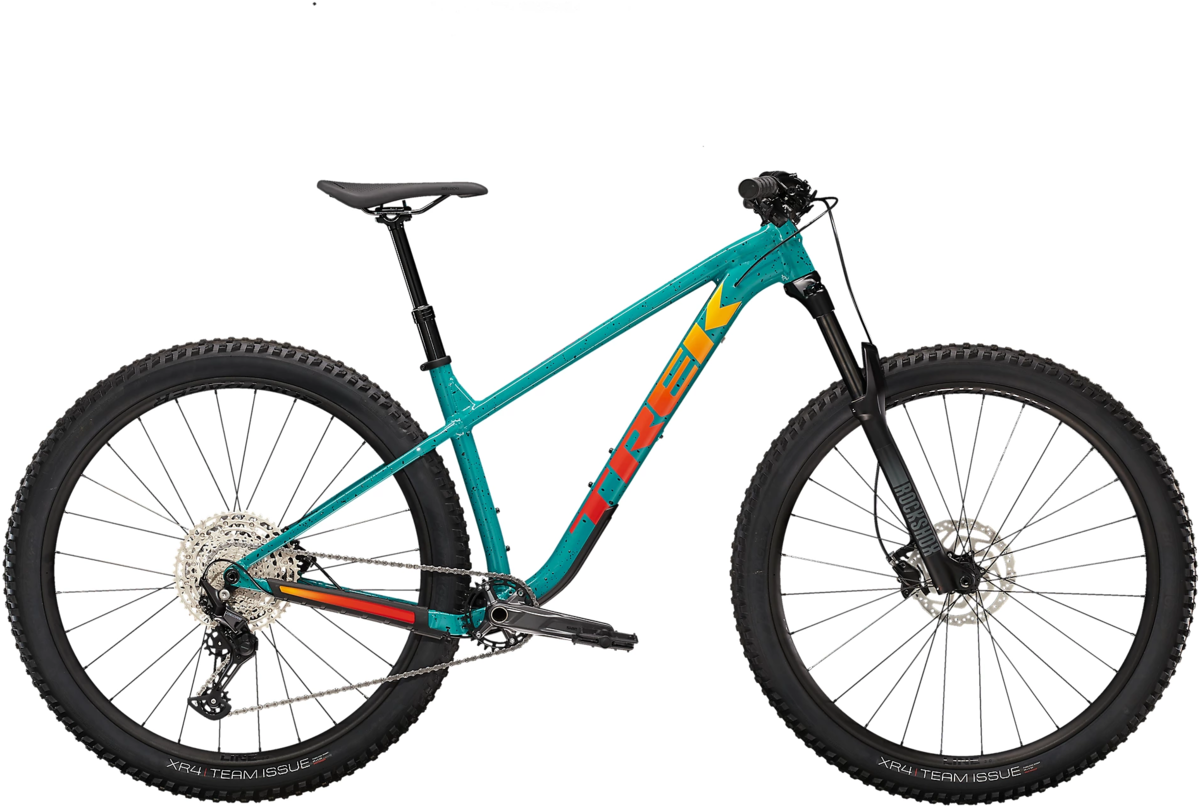

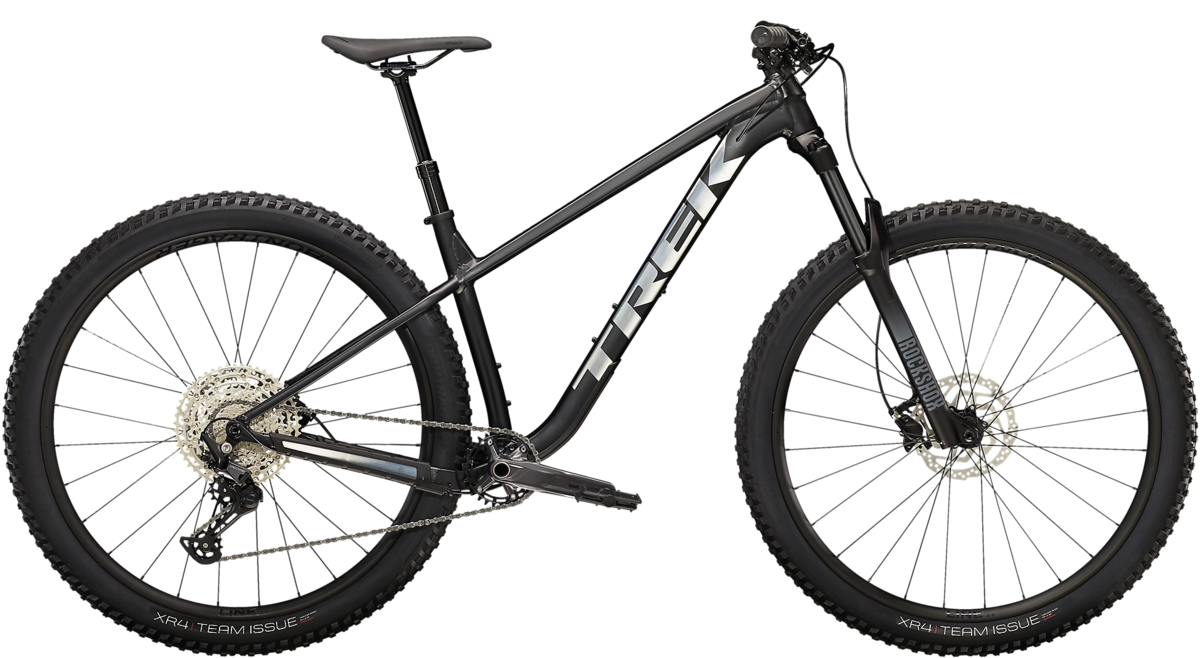

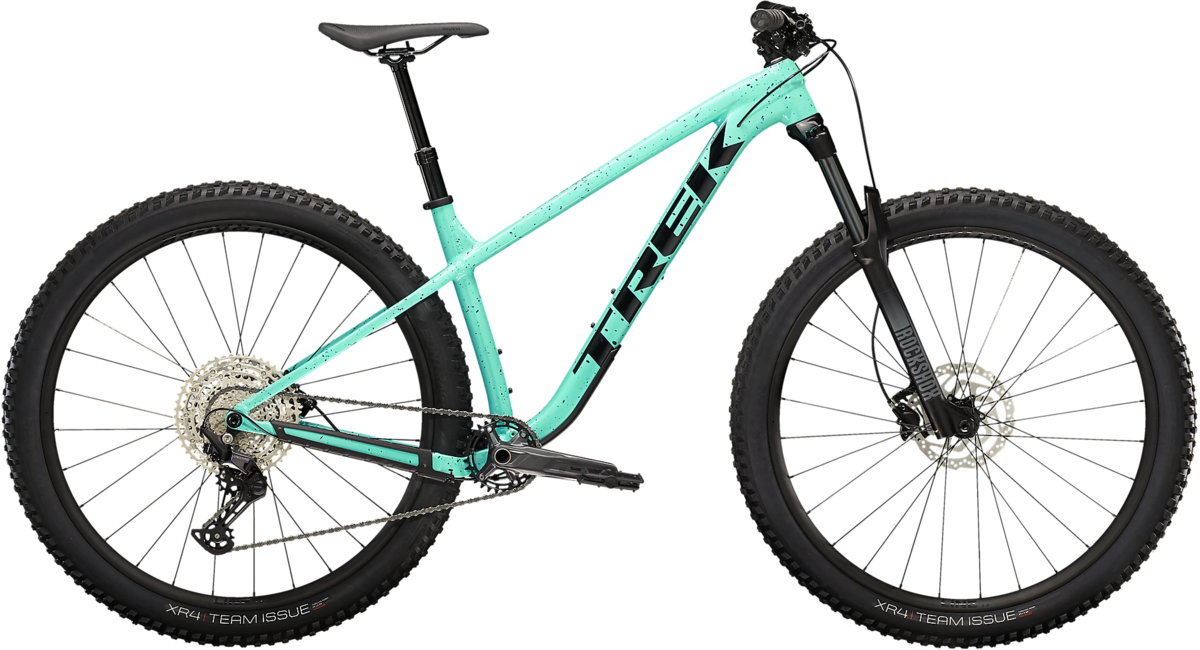

Trek Roscoe 7
Hit the Trails with Versatility and Confidence
The Trek Roscoe 7 is the ultimate hardtail for beginner to intermediate riders looking for a versatile and confident trail companion. With its lightweight aluminum frame and 140mm front suspension, the Roscoe 7 delivers a fun and responsive ride on moderate trails.
Key Features:
- Alpha Aluminum Frame: The lightweight aluminum frame provides durability and responsiveness, allowing for agile handling on a variety of trails.
- RockShox Recon RL Fork: The 140mm travel fork absorbs rough terrain, giving you more control on technical trails.
- Shimano Deore Drivetrain: The 12-speed Shimano Deore drivetrain offers reliable shifting performance, perfect for a range of trail conditions.
- Bontrager Line 30 Wheels: Tubeless-ready 29" wheels provide superior traction and control, giving you confidence on challenging terrain.
- Hydraulic Disc Brakes: Shimano hydraulic disc brakes offer dependable stopping power, no matter the weather or trail conditions.
Perfect for Fun and Exploration
The Roscoe 7 is ideal for riders who want to build their skills on moderate trails. Its responsive handling, durable components, and confidence-inspiring design make it a great choice for trail enthusiasts looking to push their limits.
Features:
- Frame Material: Aluminum
- Suspension: Hardtail (140mm front)
- Rider Skill Level: Beginner to Intermediate
- Terrain Focus: Moderate Trails
- Component Quality: Mid-Range
- Technology and Innovations: Standard Modern Features
- Weight: Standard (Aluminum Frame)
- Wheel Size: 29"
- Travel: Mid Travel (140mm front)
- Geometry: Slightly Slack head tube (~66 degrees)
- Drivetrain: 1x Drivetrain
- Brakes: Hydraulic Disc Brakes
- Dropper Post: Yes
- Tire Width: Wide Tires (2.6" - 2.8")
- Tubeless-Ready: Yes
- Pedal Type: Flat or Clipless-ready
- Internal Cable Routing: Yes
Sizing
Geometry
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A. Reach | 39cm | 41.5cm | 44cm | 45.5cm | 47cm | 49.5cm |
| B. Stack | 59.1cm | 62.6cm | 63.5cm | 63.9cm | 64.4cm | 66.6cm |
| C. Standover | 72.9cm | 74.1cm | 74.8cm | 74.2cm | 75.5cm | 76.5cm |
| D. Effective Top Tube | 55.2cm | 58.6cm | 61.4cm | 63cm | 64.6cm | 67.7cm |
| E. Head Tube Angle | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° |
| F. Head Tube Length | 9cm | 9cm | 10cm | 10.5cm | 11cm | 13.5cm |
| G. Seat Tube Angle | 73.1° | 73.1° | 73.1° | 73.1° | 73.1° | 73.1° |
| H. Seat Tube Length | 34cm | 36cm | 42cm | 43.5cm | 45cm | 50cm |
| I. Bottom Bracket Height | 31.85cm | 32.15cm | 32.15cm | 32.15cm | 32.15cm | 32.15cm |
| J. Bottom Bracket Drop | 4.5cm | 6.1cm | 6.1cm | 6.1cm | 6.1cm | 6.1cm |
| K. Fork Rake/Offset | 4.2cm | 4.2cm | 4.2cm | 4.2cm | 4.2cm | 4.2cm |
| L. Trail | 12.2cm | 13.1cm | 13.1cm | 13.1cm | 13.1cm | 13.1cm |
| M. Wheelbase | 112cm | 115.1cm | 118.1cm | 119.8cm | 121.5cm | 125cm |
| O. Chainstay Length | 43cm | 43cm | 43cm | 43cm | 43cm | 43cm |
| Effective Seat Tube Angle | 74.7°cm | 74.7°cm | 74.7°cm | 74.7°cm | 74.7°cm | 74.7°cm |
| Wheelsize | 27.5" | 29" | 29" | 29" | 29" | 29" |
Specs

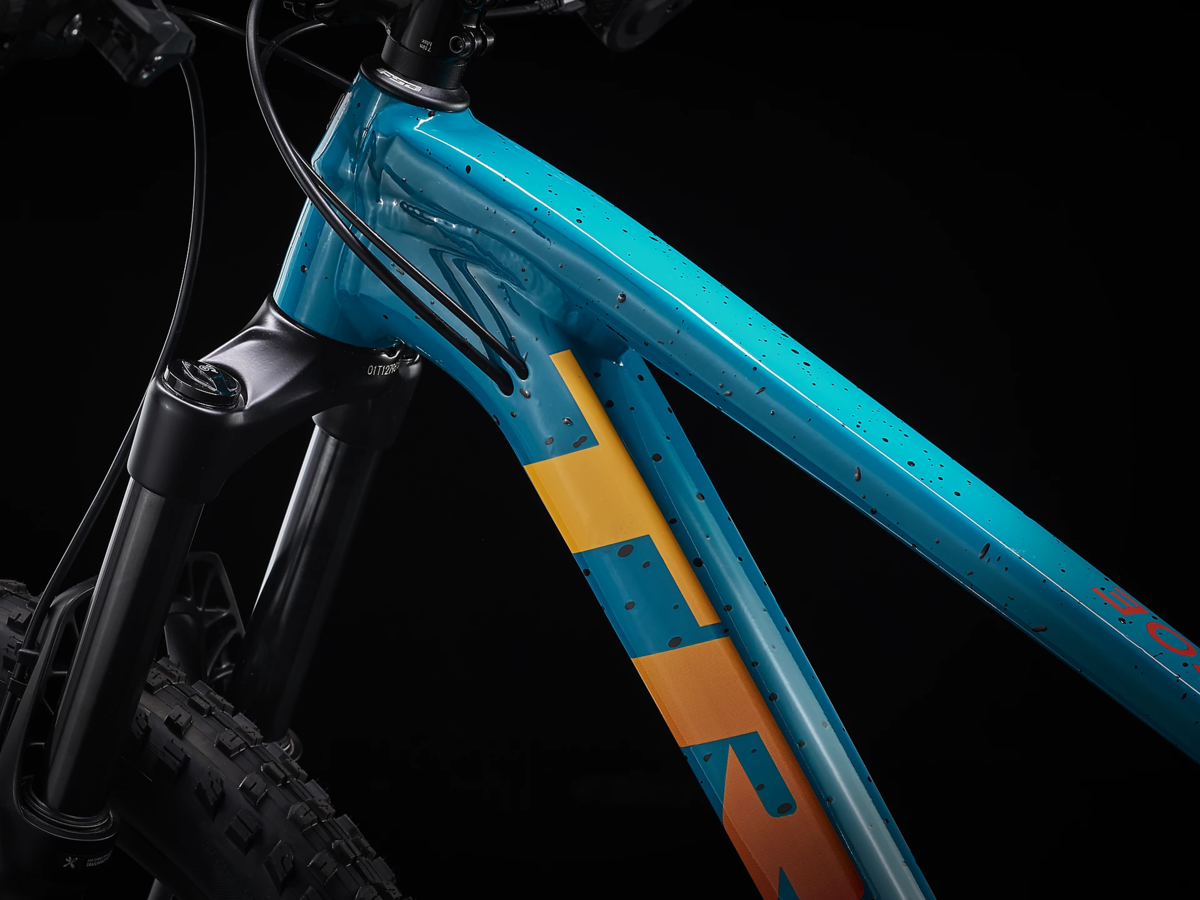

| Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148 |
|---|---|
| Fork |
RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, Boost110, Maxle Stealth, 140mm travel Size XS: 37mm offset Size S, M, M/L, L, XL: 42mm offset |
| Rims | Bontrager Line 30, Tubeless Ready, 28-hole, presta valve |
| Hubs |
Front: Shimano MT400, centerlock, Boost110, 15mm thru axle Rear: Shimano MT510, centerlock, Boost148, 12mm thru axle, Bontrager Switch thru axle, removable lever |
| Spokes | 14g stainless steel |
| Axles |
Front: 15x110mm Rear: 12x148mm |
| Tires |

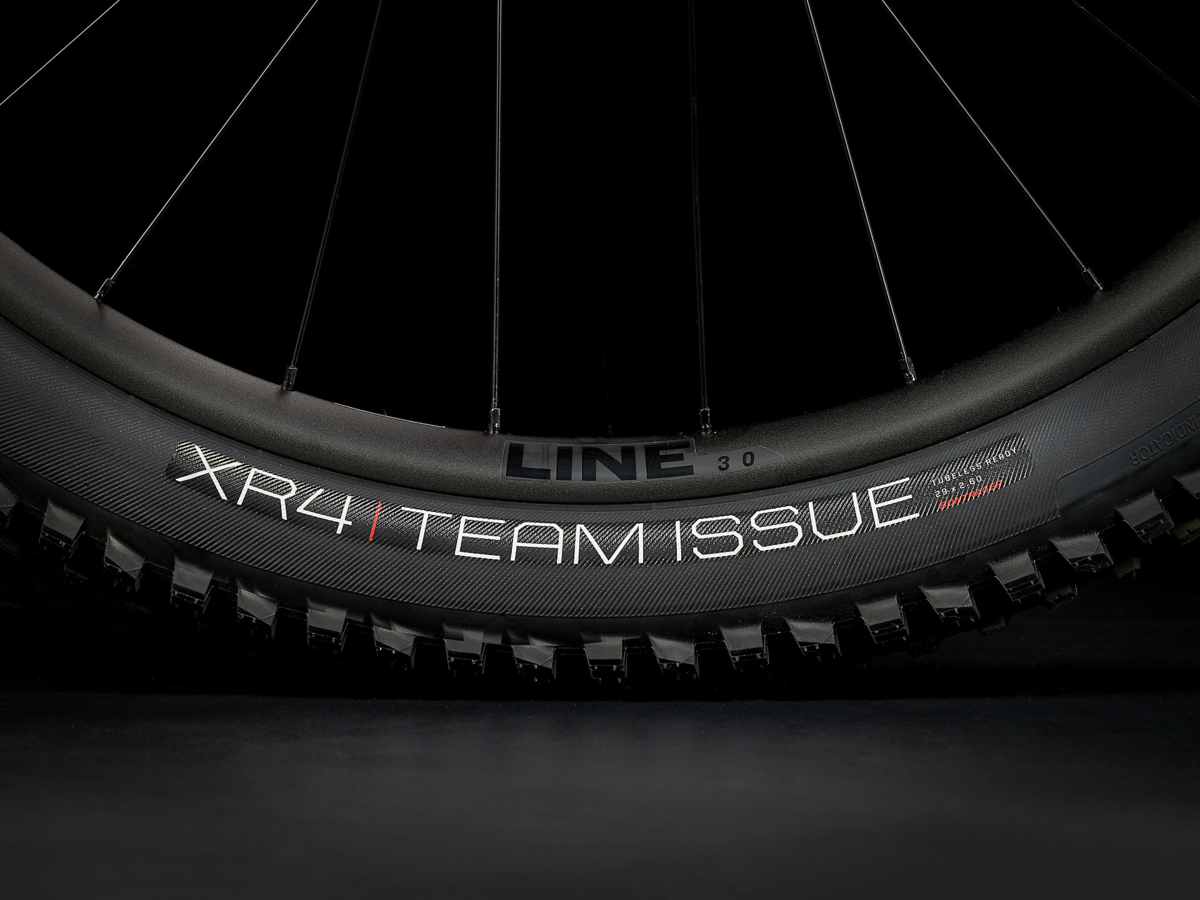

Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi Size XS: 27.5x2.60'' Sizes S, M, M/L, L, XL: 29x2.60'' |
| Bottom Bracket | Shimano SM-BB52, 73mm, threaded external bearing |
| Crankset |

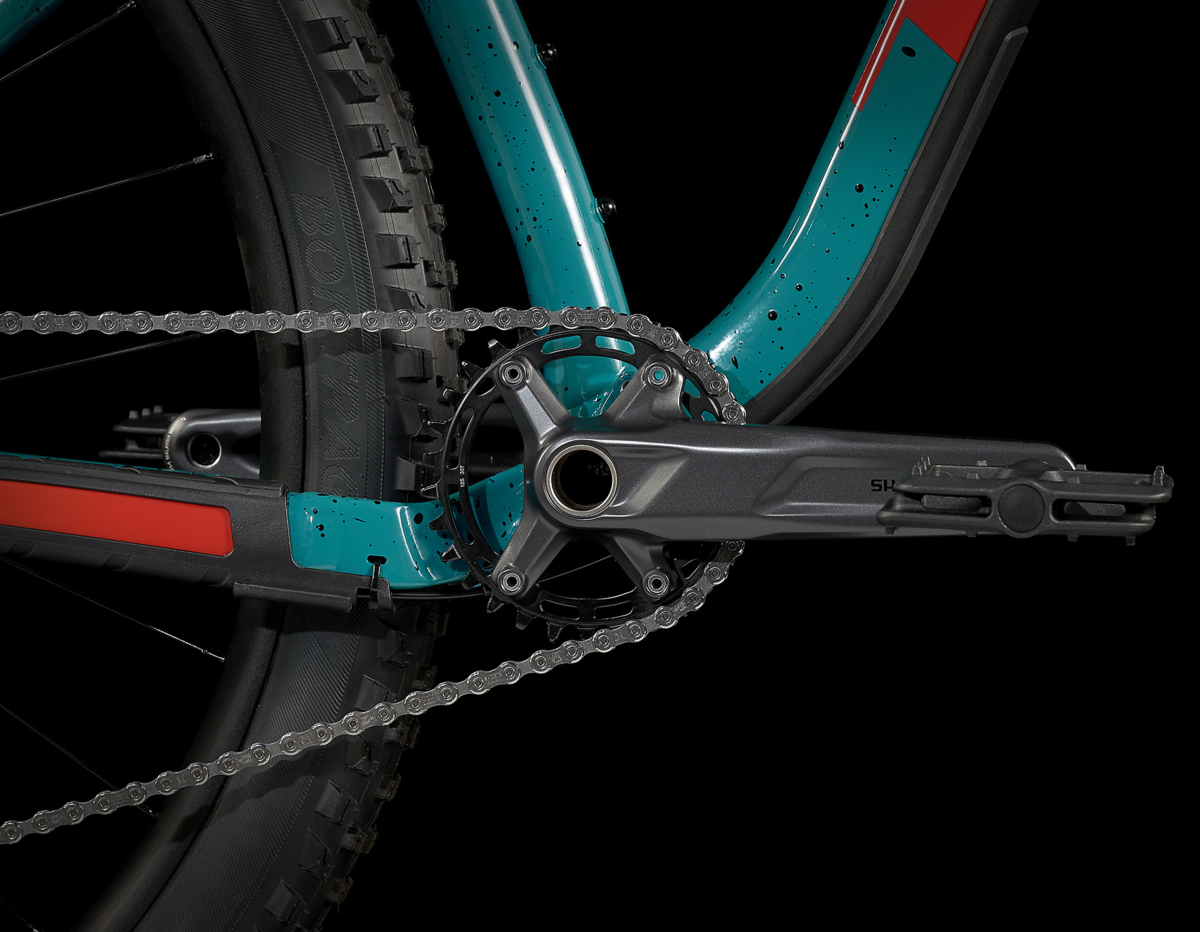

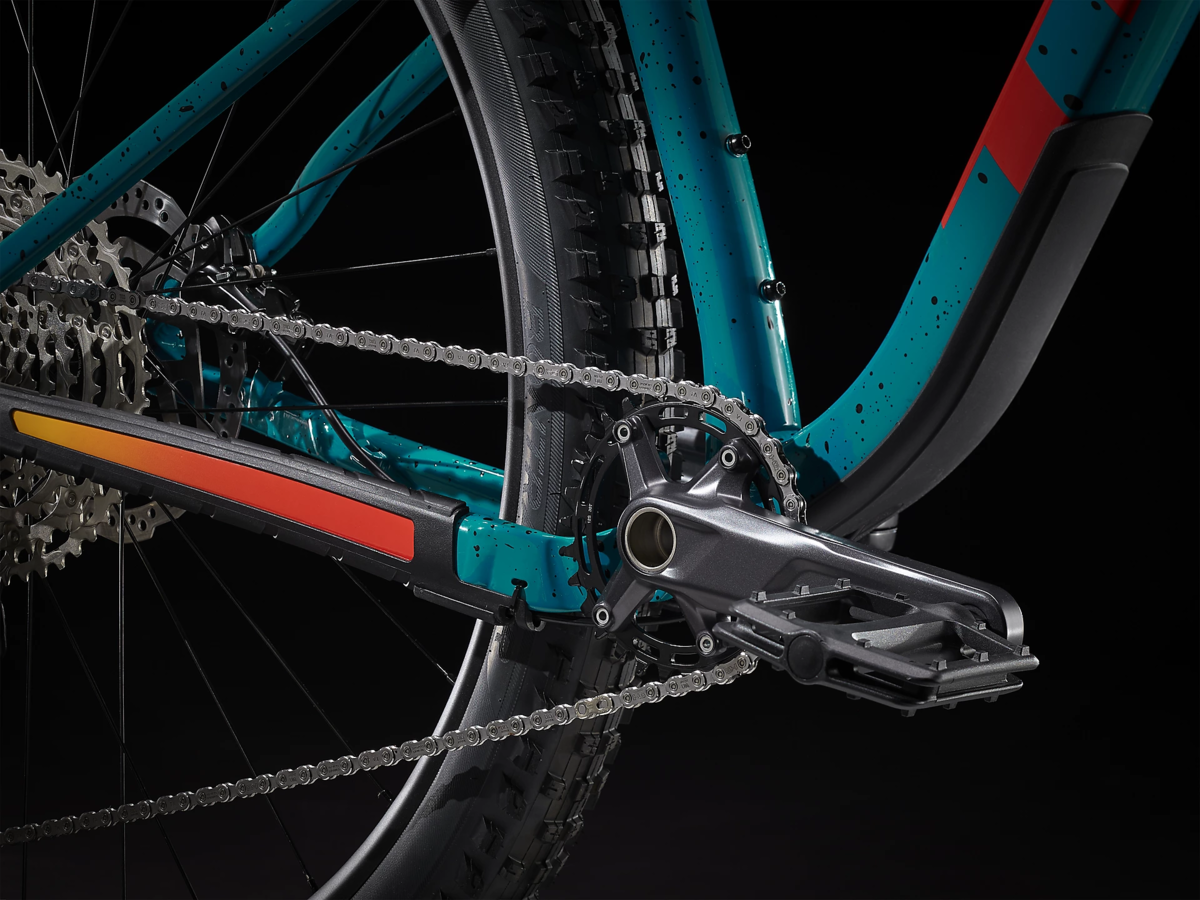

Shimano MT511, 30T steel ring, Boost (52mm chainline) Sizes XS, S, M, M/L, L: 170mm length Size XL: 175mm length |
| Shifters | Shimano Deore M6100, 12 speed |

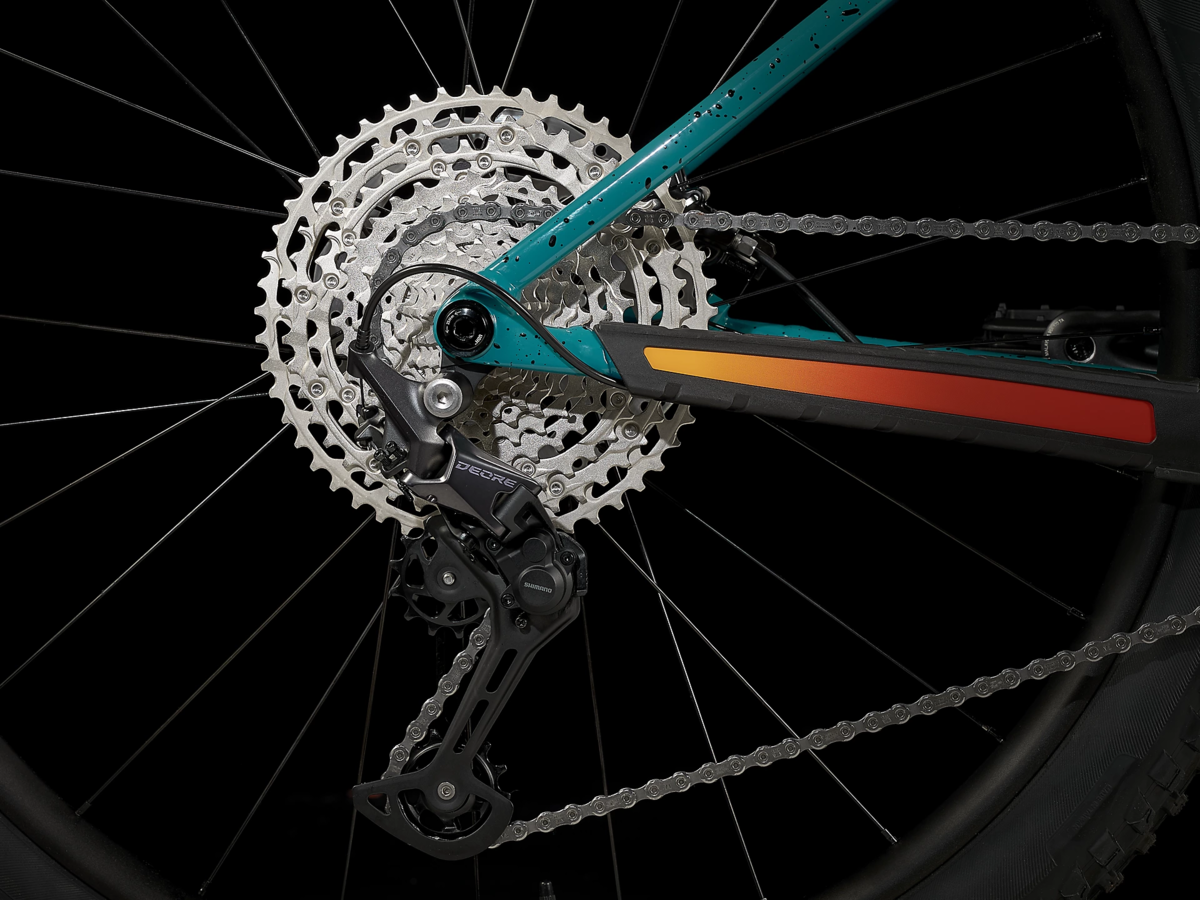

| Rear Derailleur | Shimano Deore M6100, long cage |

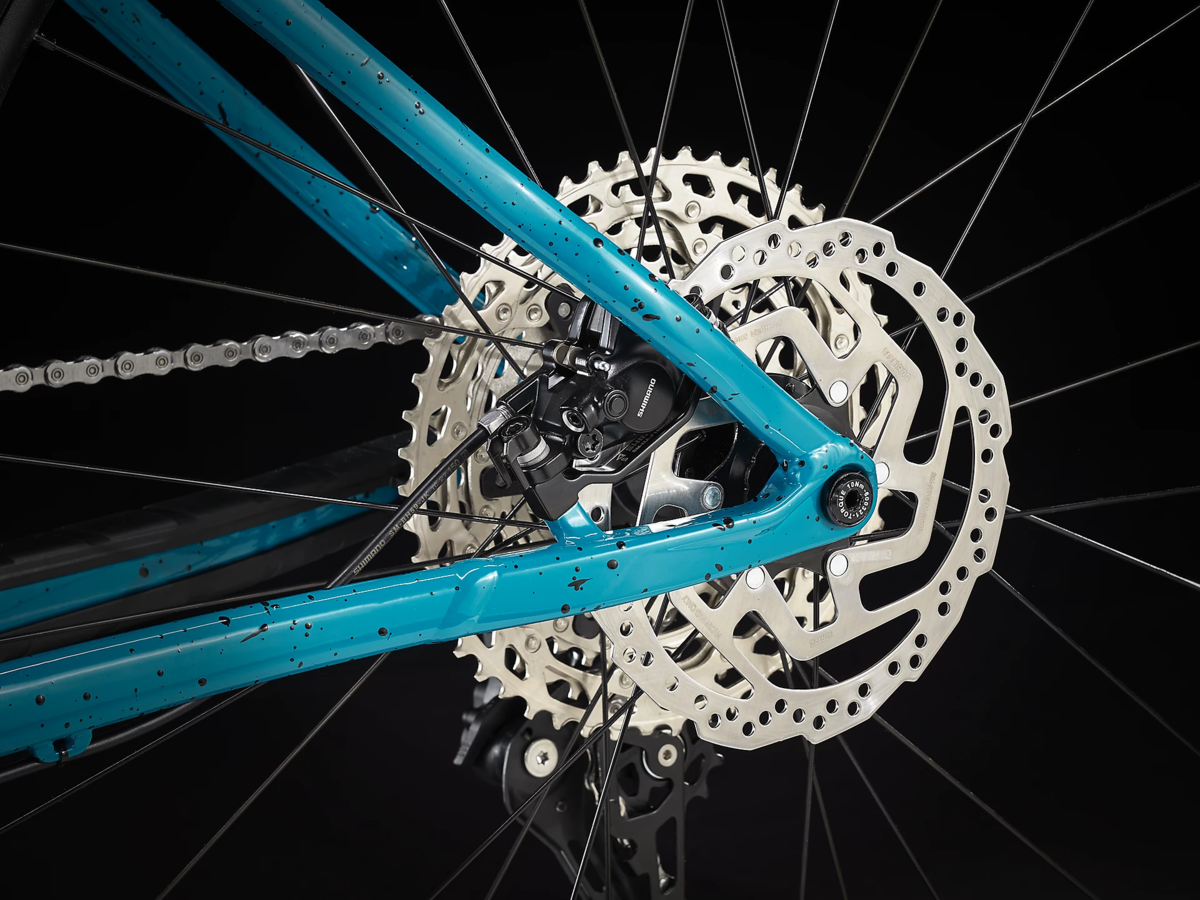

| Cassette/Freewheel | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Brakes | Shimano MT200 hydraulic disc |
| Rotors | Shimano RT10, centerlock, 180mm |

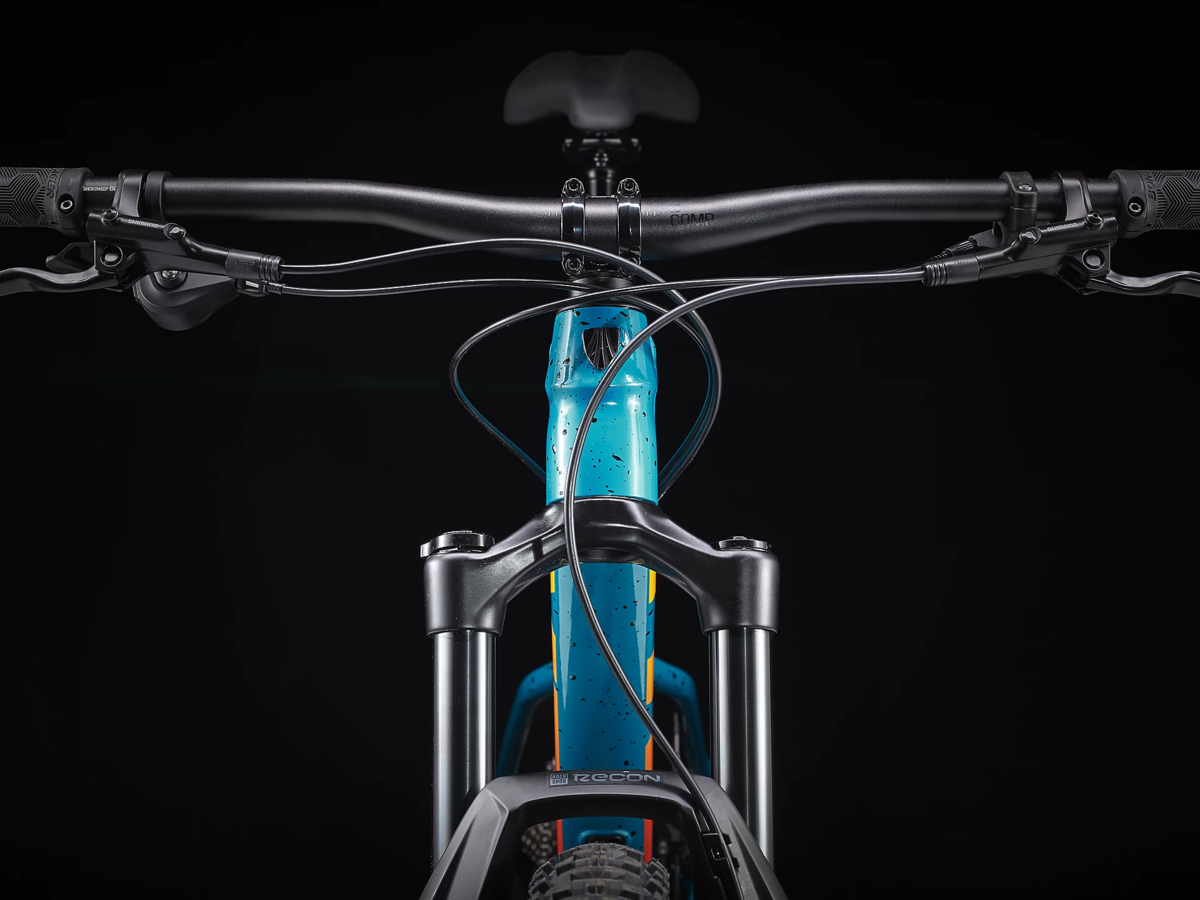

| Handlebars |
Bontrager alloy, 31.8mm, 15mm rise Size XS, S: 750mm width Sizes M, M/L, L, XL: 780mm width |
| Stem |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree Sizes XS, S: 35mm length Sizes M, M/L, L, XL: 50mm length |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Seatpost |

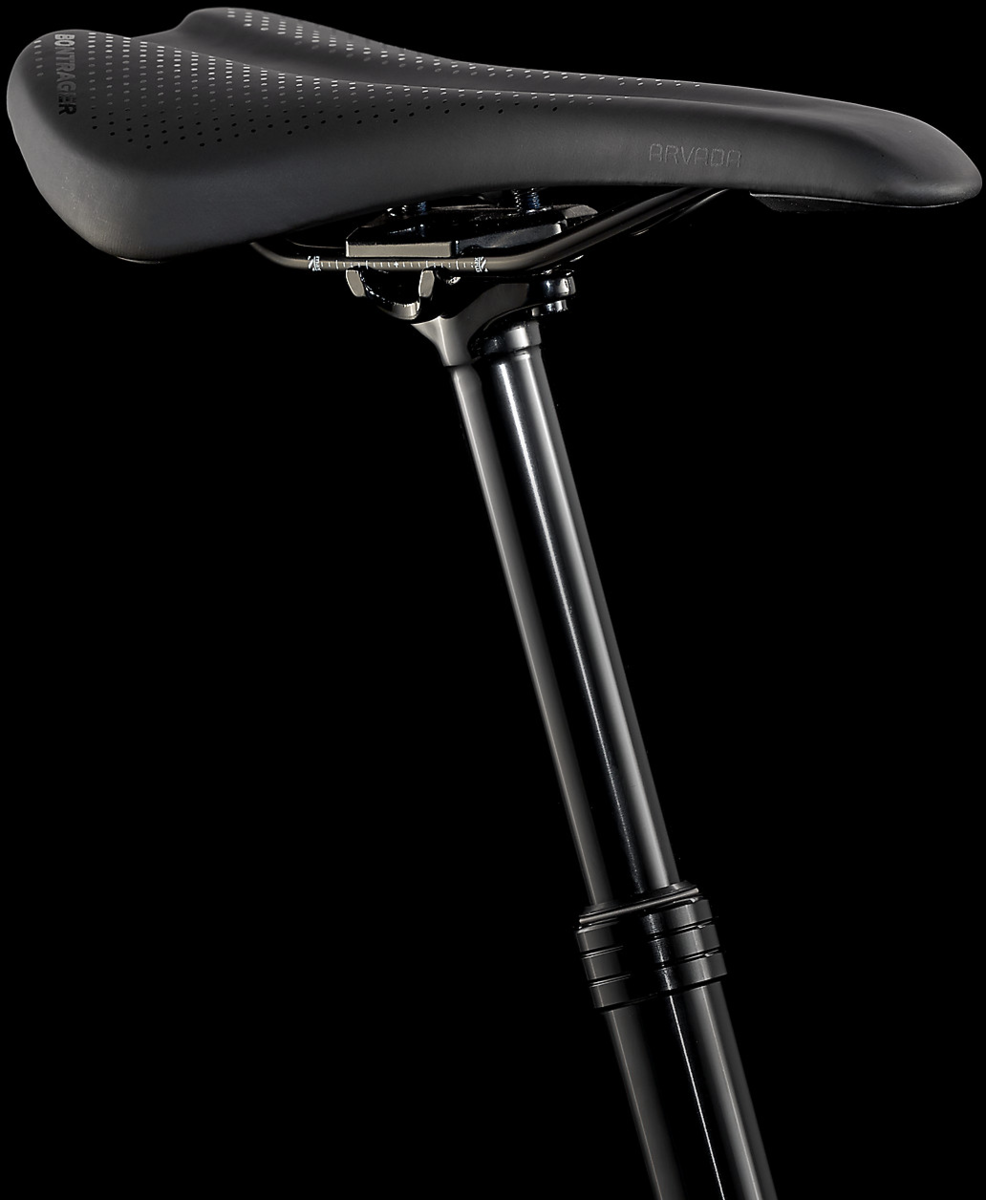

TranzX JD-YSP18, internal routing, 31.6mm Size XS, S: 100mm travel, 361mm length Size M: 130mm travel, 425mm length Size M/L, L, XL: 150mm travel, 445mm length |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Pedals | VP-536 nylon platform |
| Accessories & Extras | Bontrager TLR sealant, 6oz, Bontrager TLR valve, 50mm |
* Subject to change without notice.
