Product Details

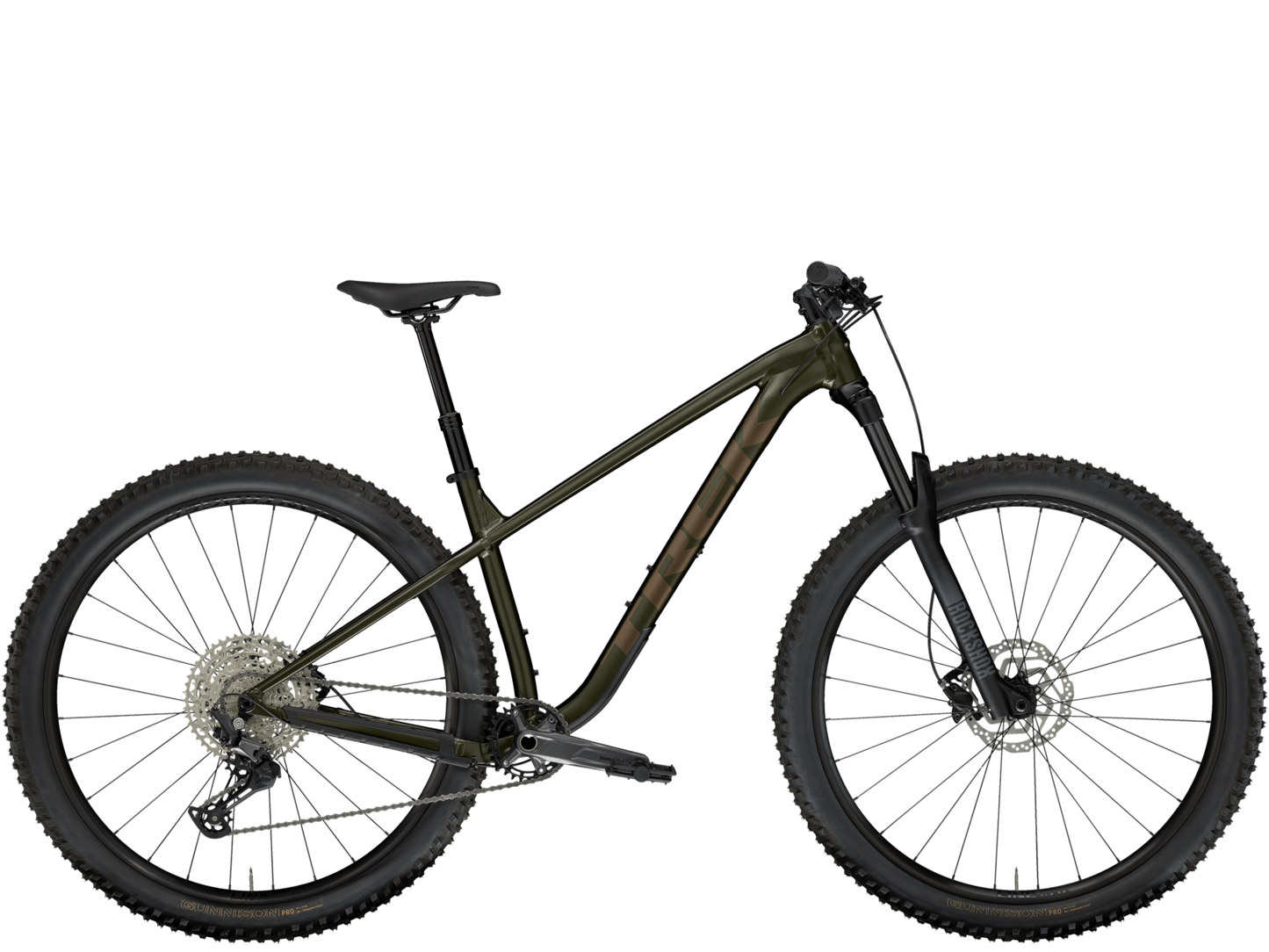

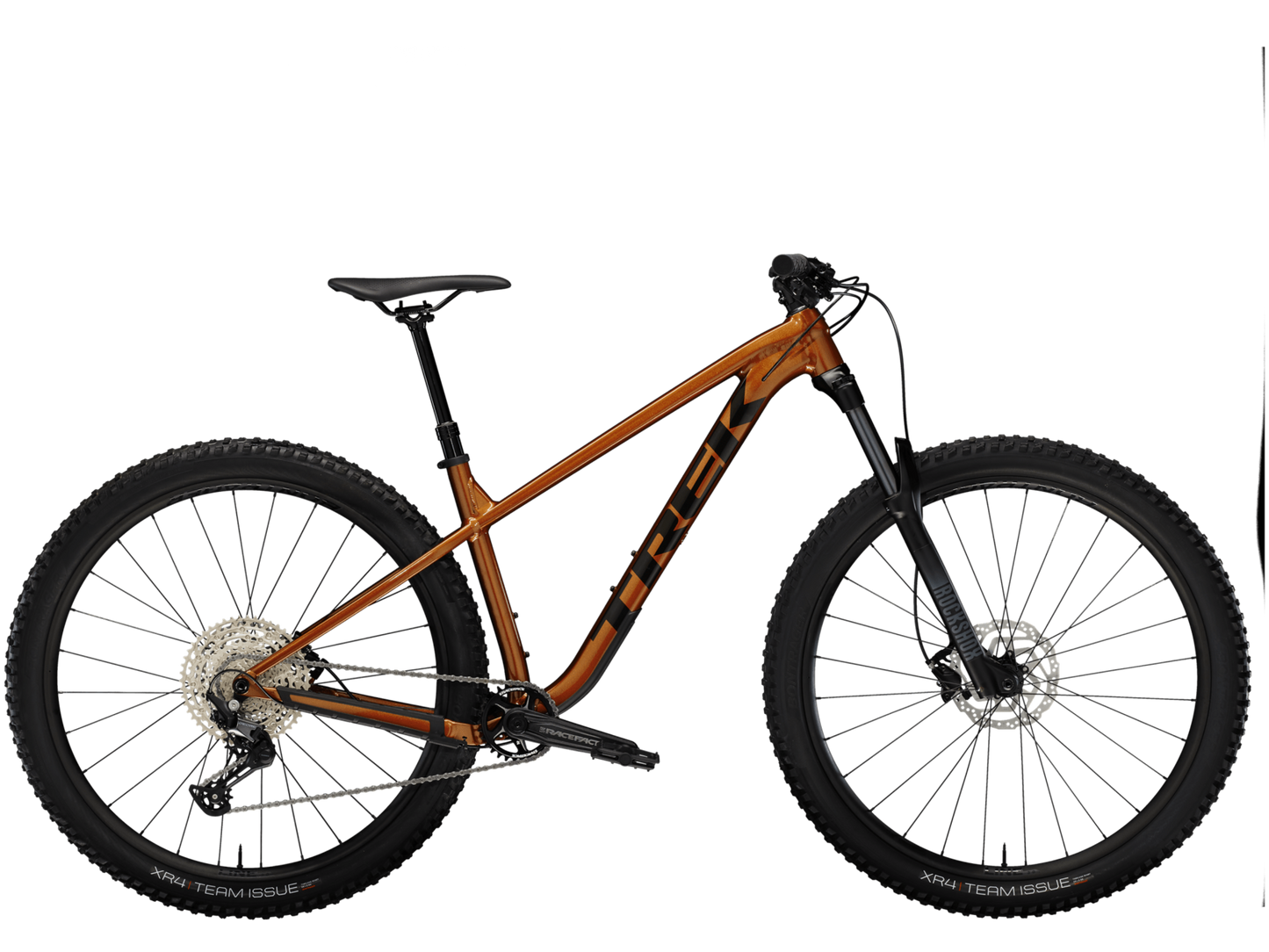

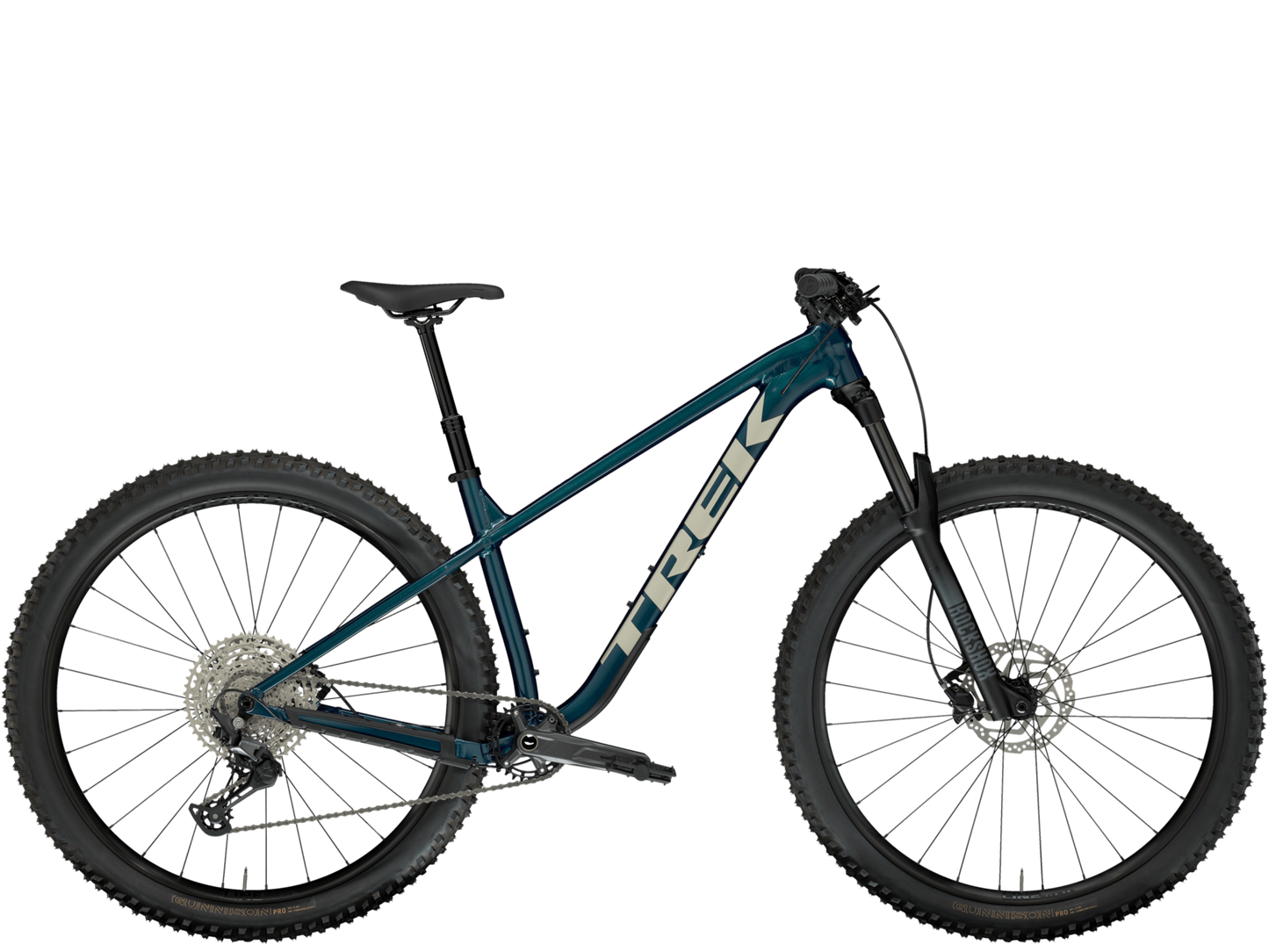

Trek Roscoe 7
Hit the Trails with Versatility and Confidence
The Trek Roscoe 7 is the ultimate hardtail for beginner to intermediate riders looking for a versatile and confident trail companion. With its lightweight aluminum frame and 140mm front suspension, the Roscoe 7 delivers a fun and responsive ride on moderate trails.
Key Features:
- Alpha Aluminum Frame: The lightweight aluminum frame provides durability and responsiveness, allowing for agile handling on a variety of trails.

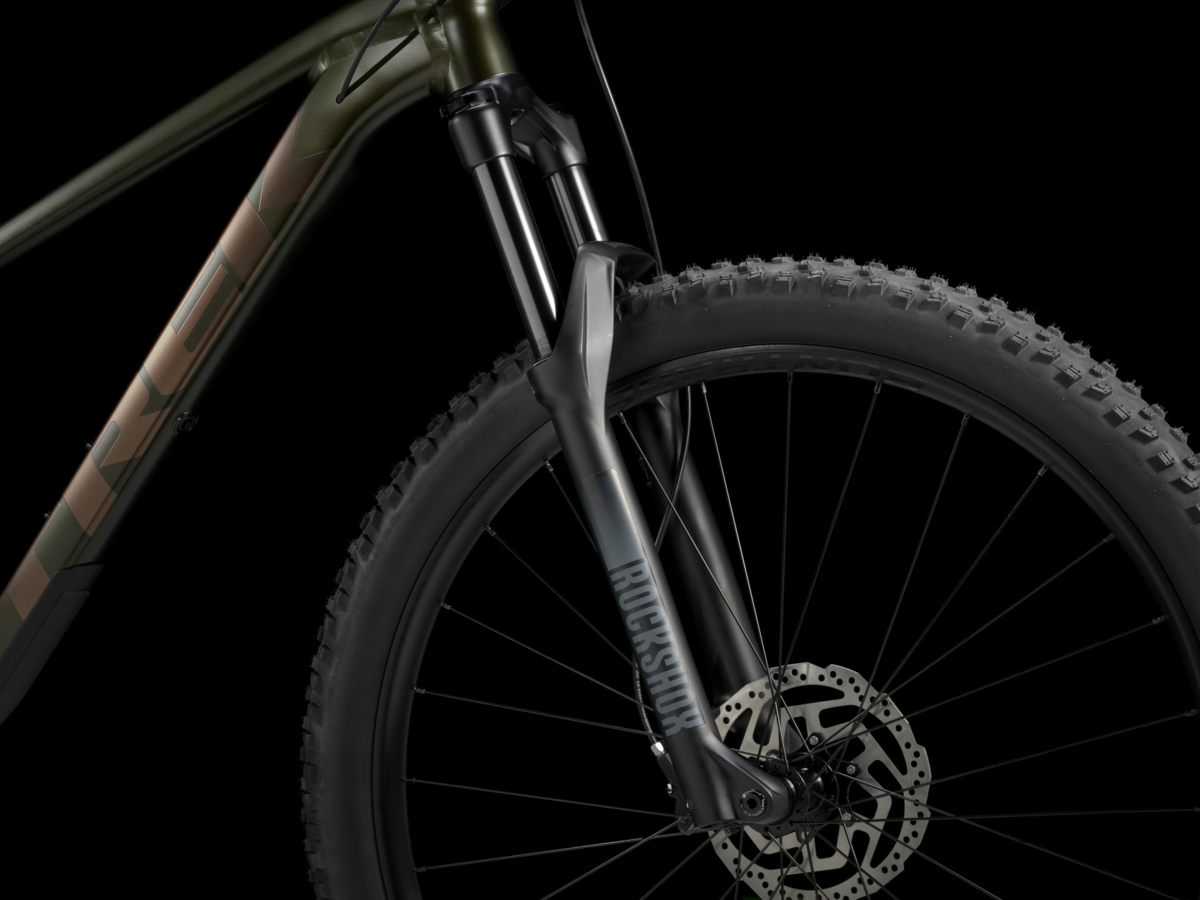

- RockShox Recon RL Fork: The 140mm travel fork absorbs rough terrain, giving you more control on technical trails.
- Shimano Deore Drivetrain: The 12-speed Shimano Deore drivetrain offers reliable shifting performance, perfect for a range of trail conditions.
- Bontrager Line 30 Wheels: Tubeless-ready 29" wheels provide superior traction and control, giving you confidence on challenging terrain.
- Hydraulic Disc Brakes: Shimano hydraulic disc brakes offer dependable stopping power, no matter the weather or trail conditions.
Perfect for Fun and Exploration
The Roscoe 7 is ideal for riders who want to build their skills on moderate trails. Its responsive handling, durable components, and confidence-inspiring design make it a great choice for trail enthusiasts looking to push their limits.
Features:
- Frame Material: Aluminum
- Suspension: Hardtail (140mm front)
- Rider Skill Level: Beginner to Intermediate
- Terrain Focus: Moderate Trails
- Component Quality: Mid-Range
- Technology and Innovations: Standard Modern Features
- Weight: Standard (Aluminum Frame)
- Wheel Size: 29"
- Travel: Mid Travel (140mm front)
- Geometry: Slightly Slack head tube (~66 degrees)
- Drivetrain: 1x Drivetrain
- Brakes: Hydraulic Disc Brakes
- Dropper Post: Yes
- Tire Width: Wide Tires (2.6" - 2.8")
- Tubeless-Ready: Yes
- Pedal Type: Flat or Clipless-ready
- Internal Cable Routing: Yes
Sizing
Geometry
| Frame size | X-Small | Small | Medium | Medium / Large | Large | X-Large |
|---|---|---|---|---|---|---|
| Wheel size | 27.5" | 29" | 29" | 29" | 29" | 29" |
| A - Seat tube (cm) | 34 | 36 | 42 | 43.5 | 45 | 50 |
| B - Seat tube angle | 73.1° | 73.1° | 73.1° | 73.1° | 73.1° | 73.1° |
| Effective seat tube angle | 74.7° | 74.7° | 74.7° | 74.7° | 74.7° | 74.7° |
| C - Head tube length (cm) | 9 | 9 | 10 | 10.5 | 11 | 13.5 |
| D - Head angle | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° |
| E - Effective top tube (cm) | 55.2 | 58.6 | 61.4 | 63 | 64.6 | 67.7 |
| F - Bottom bracket height (cm) | 31.9 | 32.1 | 32.1 | 32.2 | 32.1 | 32.2 |
| G - Bottom bracket drop (cm) | 4.5 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 |
| H - Chainstay length (cm) | 43 | 43 | 43 | 43 | 43 | 43 |
| I - Offset (cm) | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| J - Trail (cm) | 12.2 | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 |
| K - Wheelbase (cm) | 112 | 115.1 | 118.1 | 119.8 | 121.5 | 125 |
| L - Standover (cm) | 72.9 | 74.1 | 74.8 | 74.2 | 75.5 | 76.5 |
| M - Frame reach (cm) | 39 | 41.5 | 44 | 45.5 | 47 | 49.5 |
| N - Frame stack (cm) | 59.1 | 62.6 | 63.5 | 63.9 | 64.4 | 66.6 |
Specs

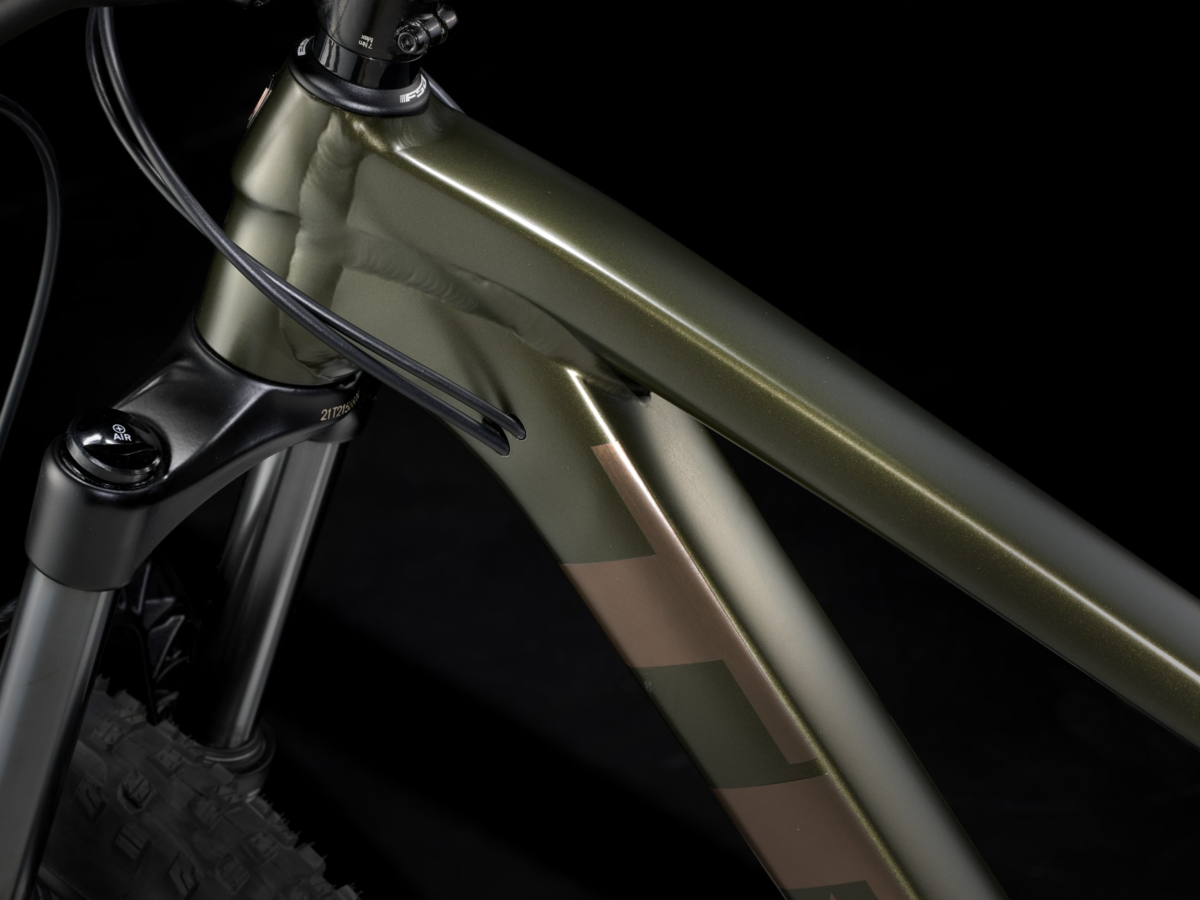

| Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148, 12mm thru axle |
|---|---|
| Fork |
Size: XS RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, 37mm offset, Boost110, Maxle Stealth, 140mm travel Size: S, M, M/L, L, XL RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel |
| Rims | Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve |
| Hubs |
Front: Shimano TC500 alloy, centerlock, 110x15mm thru axle Rear: Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Tires |
Size: XS Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60'' Size: S, M, M/L, L, XL Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60'' |
| Bottom Bracket |
Shimano SM-BB52, 73mm, threaded external bearing Shimano BB-MT501 BSA |

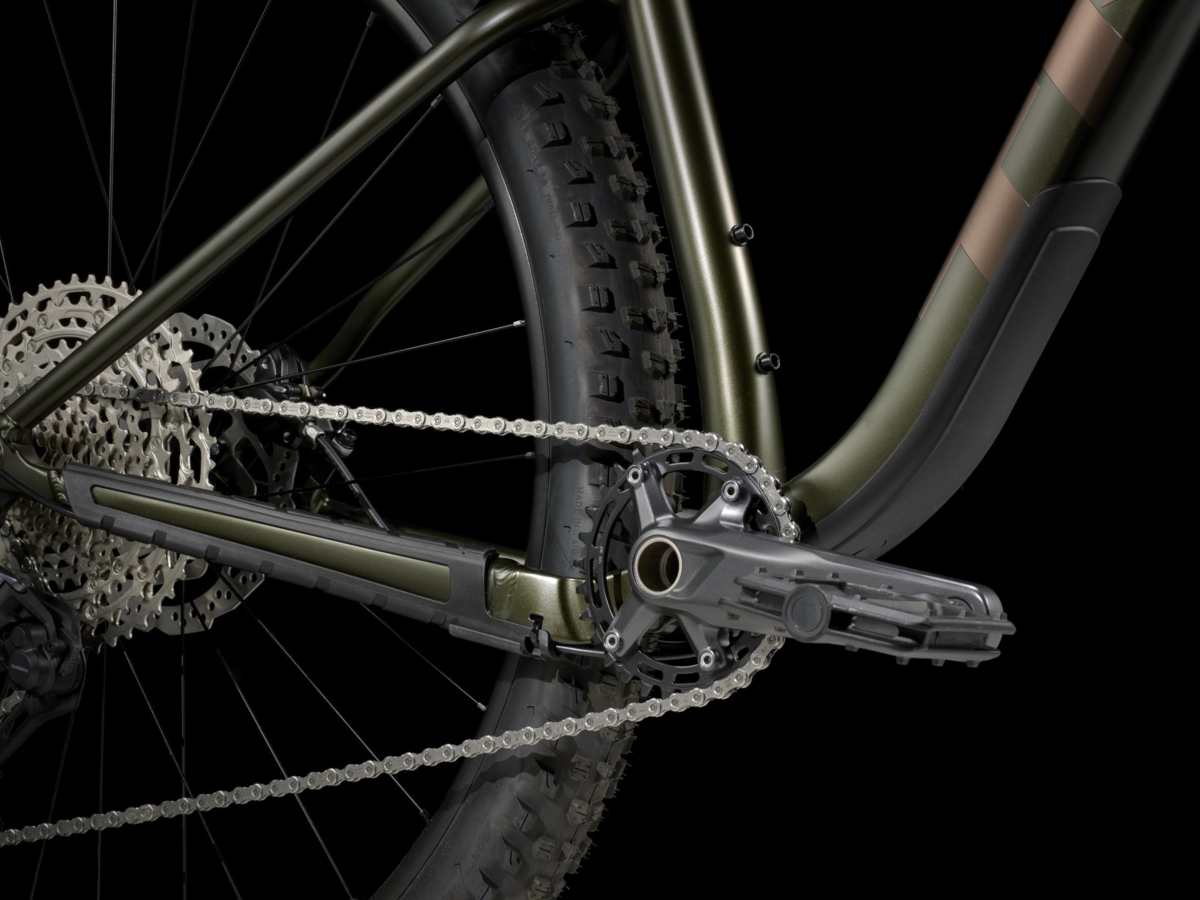

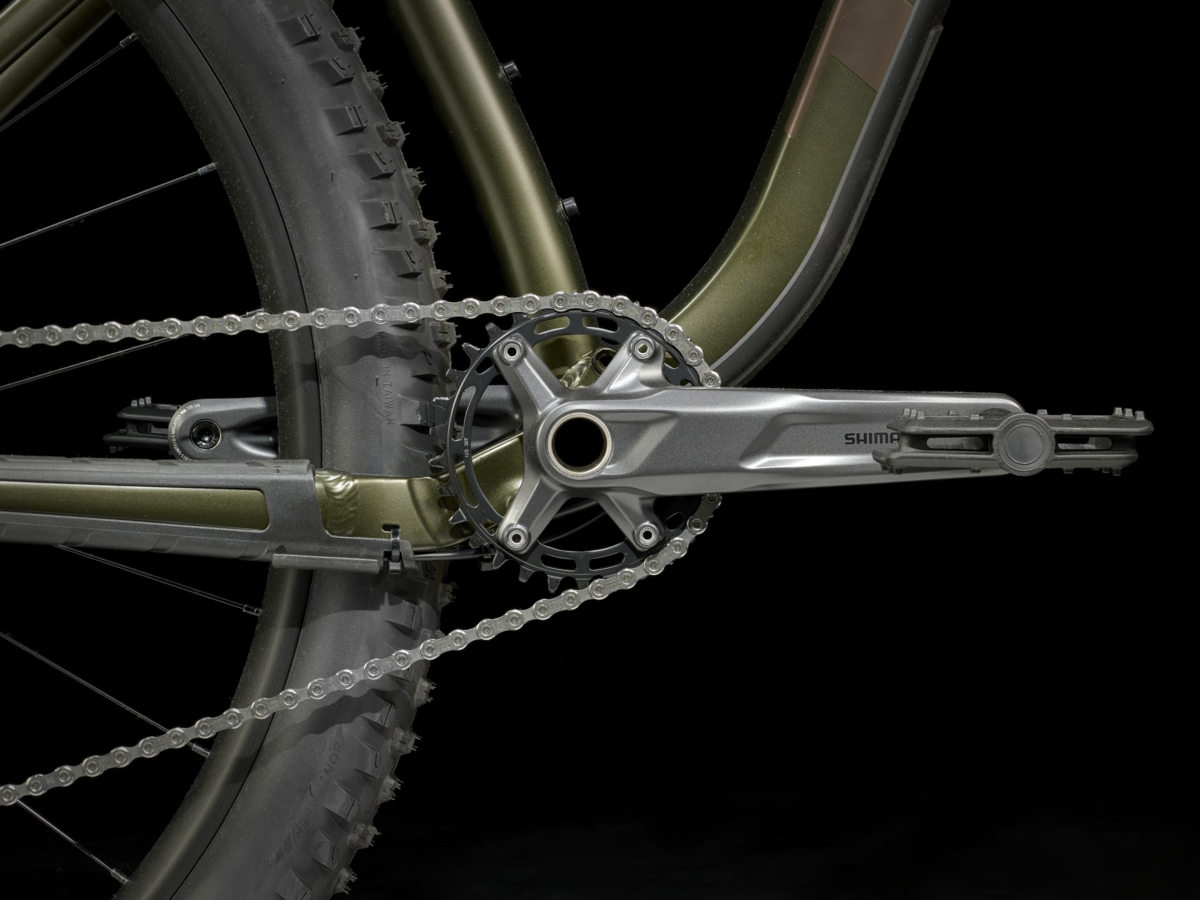

| Crankset | Shimano MT511, 30T steel ring, 52mm chainline |
| Shifters | Shimano Deore M6100, 12 speed |
| Rear Derailleur | Shimano Deore M6100, long cage |
| Cassette/Freewheel | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |

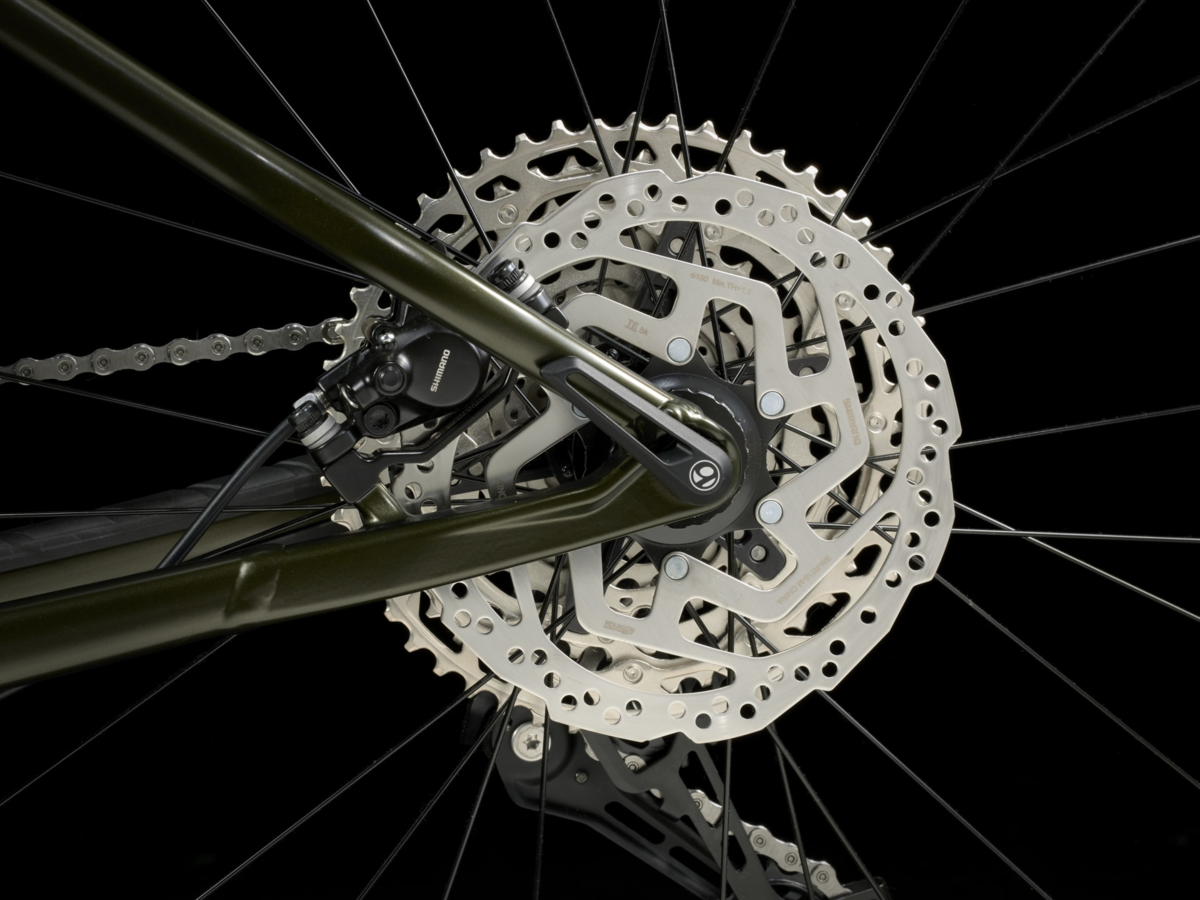

| Brakes | Shimano MT200 hydraulic disc |
| Rotors | Shimano RT10, centerlock, 180mm |

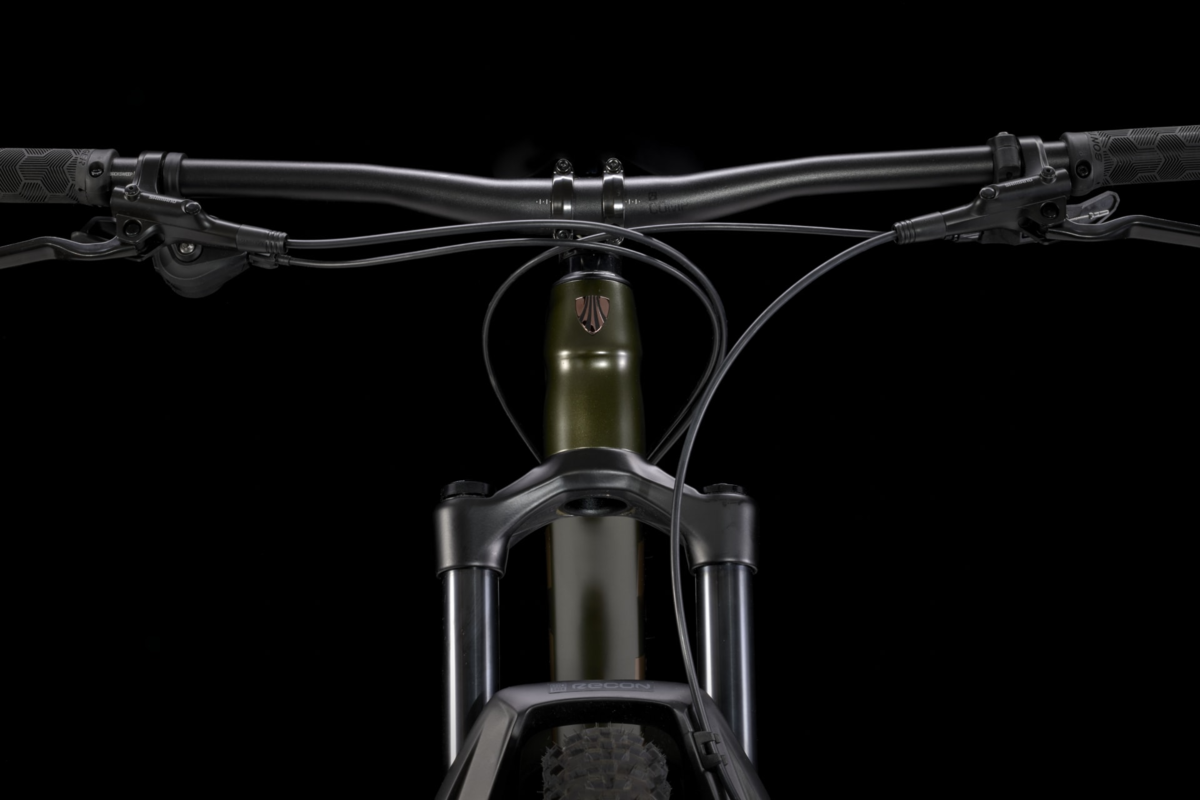

| Handlebars |
Size: XS, S Bontrager alloy, 31.8mm, 15mm rise, 750mm width Size: M, M/L, L, XL Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width |
| Tape/Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem |
Size: XS, S Bontrager Comp, 31.8mm, 7 degree, 35mm length Size: M, M/L, L, XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Headset | FSA IS-2, 1-1/8'' top, 1.5'' bottom |
| Seatpost | TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm |
| Saddle |
Bontrager Verse P3, steel rails Bontrager Verse Short, stainless steel rails |
| Pedals | VP-536 nylon platform |
* Subject to change without notice.
