1 7

Trek

Trek Madone SL 5 Gen 8 2025

Trek Madone SL 5 Gen 8 2025

$3,499.99 USD
$3,499.99 USD
Sale Sold out
Color: Hex Blue
Size

Wheel Size: 700c
  • Due to supply-chain issues, Specs are subject to change without notice.
View full details

Product Details

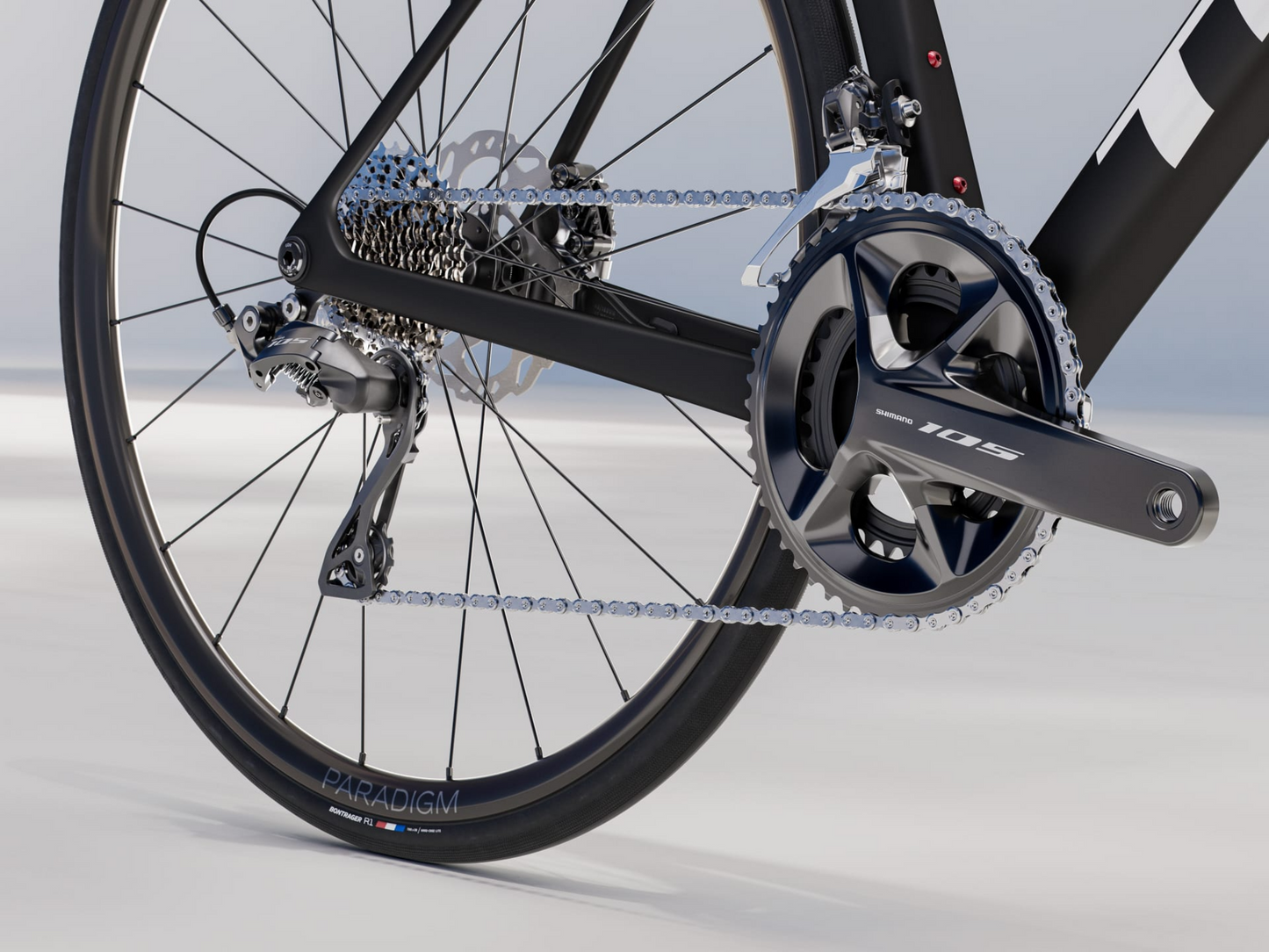

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents. A Shimano 105 groupset keeps the price down while still delivering clean mechanical shifting you can trust.

- Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
- A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
- You get clean and reliable shifting without breaking the bank with Shimano's workhorse groupset – 105
- Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics

Sizing

Rider HeightInseam
XS143 - 158 cm 67 - 74 cm
XS4'8" - 5'2" 26" - 29"
S158 - 162 cm 74 - 76 cm
S5'2" - 5'4" 29" - 30"
M162 - 173 cm 76 - 81 cm
M5'4" - 5'8" 30" - 32"
ML173 - 179 cm 81 -84 cm
ML5'8" - 5'10" 32" - 33"
L179 - 188 cm 84 - 88 cm
L5'10" - 6'2" 33" 35"
XL188 - 213 cm 88 - 100 cm
XL6'2" - 7'0" 35" - 39"

Geometry

Frame sizeXSSMMLLXL
Wheel size700c 700c700c700c700c700c
A — Seat tube (CM)40.4 4447.651.254.860.9
B — Seat tube angle73.8 73.873.673.473.473.4
C — Head tube length (CM)10 12.113.61517.220.1
D — Head angle71.6 72.272.973.573.873.9
E — Effective top tube (CM)51.7 53.254.555.756.858.4
G — Bottom bracket drop (CM)7.2 7.2776.86.8
H — Chainstay length (CM)41 41414141.141.2
I — Offset (CM)5 4.54.5444
J — Trail (CM)6.1 6.25.85.95.75.7
K — Wheelbase (CM)97.1 97.698.19899100.7
L — Standover (CM)70.9 7476.879.482.586.9
M — Frame reach (CM)37 37.838.438.939.440.2
N — Frame stack (CM)50.7 5354.656.258.261
Saddle rail height min (w/short mast) (CM)54.9 58.562.165.769.375.4
Saddle rail height max (w/short mast) (CM)61.2 64.868.47275.681.7
Saddle rail height min (w/tall mast) (CM)59.2 62.866.47073.679.7
Saddle rail height max (w/tall mast) (CM)65.4 6972.676.279.885.9

Specs

Hubs Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rims Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Stem Trek RCS Pro, -7 degree, 80mm length
Chain Shimano SLX M7100, 12 speed
Frame 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing,
removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Tires Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Rotors Shimano RT70, centerlock, 160mm
Saddle Bontrager Aeolus Comp, steel rails, 155mm width
Crankset Shimano 105 R7100, 50/34, 165mm length
Seatpost Madone aero carbon seatpost, 0mm offset, short length
Shifters Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed
Handlebars Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Bottom Bracket Praxis, T47 threaded, internal bearing
Front Derailleur Shimano 105 R7100, braze-on, down swing
Cassette/Freewheel Shimano 105 7101, 11-34, 12 speed
Fork Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Rear Derailleur Shimano 105 R7100, 36T max cog

* Subject to change without notice.
