Product Details

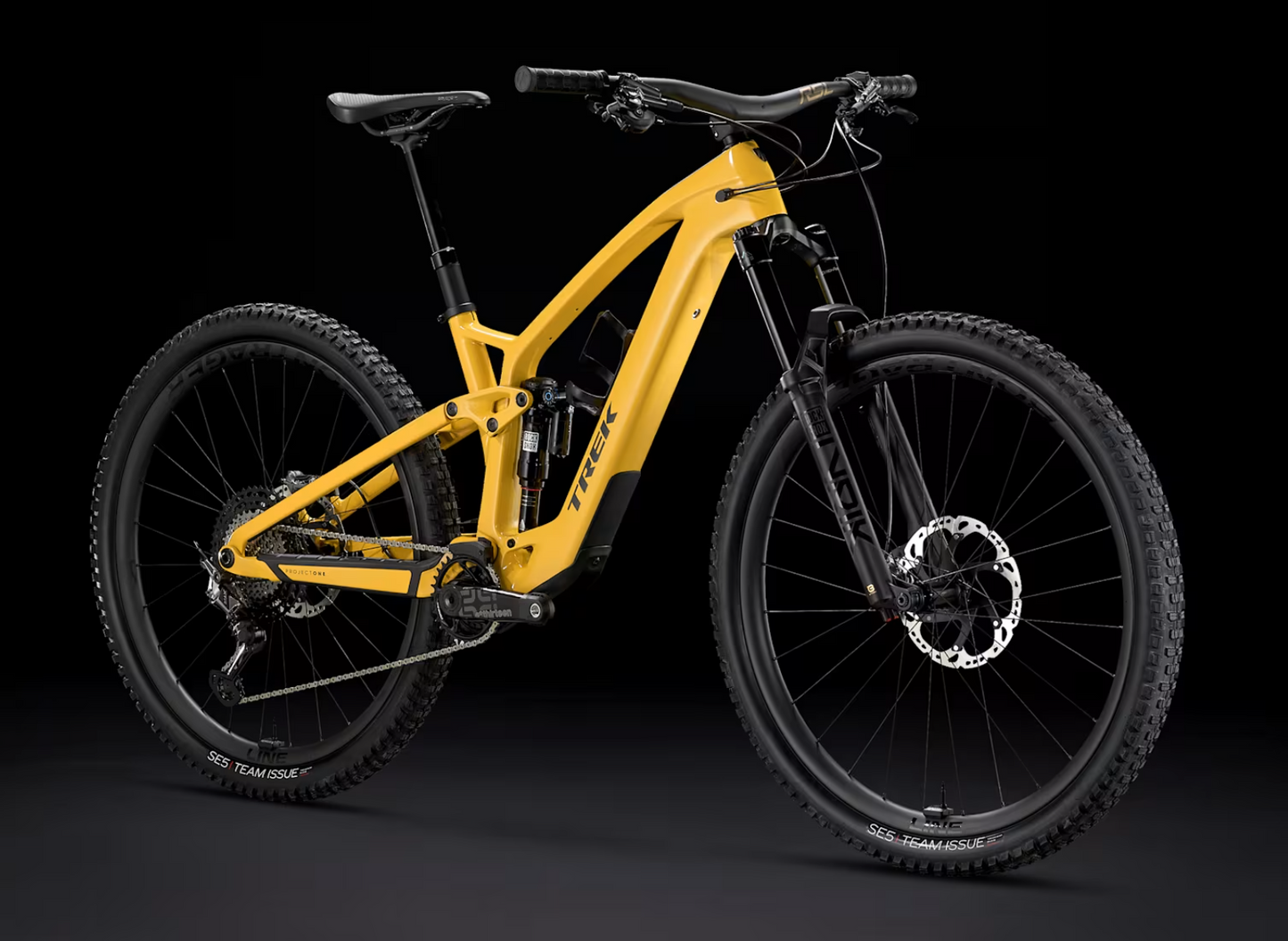

The Trek Fuel EXe 9.9 XTR is a cutting-edge electric mountain bike that seamlessly blends traditional trail bike agility with advanced e-bike technology. Its OCLV Mountain Carbon frame houses a discreet 360Wh battery, powering the innovative TQ-HPR50 motor. This harmonic pin-ring transmission system delivers a natural-feeling assist, enhancing your ride without overpowering it. The bike's suspension system features a 150mm travel RockShox Lyrik Ultimate fork and a 140mm travel RockShox Super Deluxe Ultimate rear shock, both equipped with AirWiz technology for precise pressure monitoring. A Shimano XTR 12-speed drivetrain ensures smooth and reliable shifting, while Bontrager Line Pro 30 carbon wheels paired with SE5 Team Issue tires provide exceptional traction and durability. Additional features include a Bontrager RSL integrated handlebar/stem for optimal control, a Line Elite Dropper post for on-the-fly saddle adjustments, and Quarq TyreWiz monitors to keep your tire pressure dialed. With a weight of approximately 18.38 kg (40.53 lbs) for a medium frame size, the Fuel EXe 9.9 XTR offers a harmonious blend of power and performance for the discerning trail rider.
| Feature | Specification |
|---|---|
| Frame Material | OCLV Mountain Carbon |
| Suspension Travel | 150mm Front (RockShox Lyrik Ultimate with AirWiz) / 140mm Rear (RockShox Super Deluxe Ultimate with AirWiz) |
| Drivetrain | Shimano XTR M9100, 12-speed |
| Wheels | Bontrager Line Pro 30, OCLV Mountain Carbon |
| Tires | Bontrager SE5 Team Issue, Tubeless Ready, 29x2.50" |
| Brakes | Shimano XTR M9120 4-piston hydraulic disc |
| Motor | TQ-HPR50, 50 Nm torque, 250W continuous power |
| Battery | TQ 360Wh, integrated and removable |
| Display | TQ LED with Bluetooth & ANT+ connectivity |
| Weight | Approx. 18.38 kg (40.53 lbs, Medium frame size) |
Specs
* Subject to change without notice.
