Product Details
Category: Electric Mountain Bike
Description:

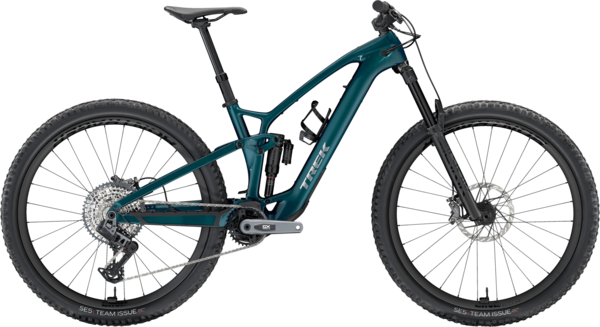

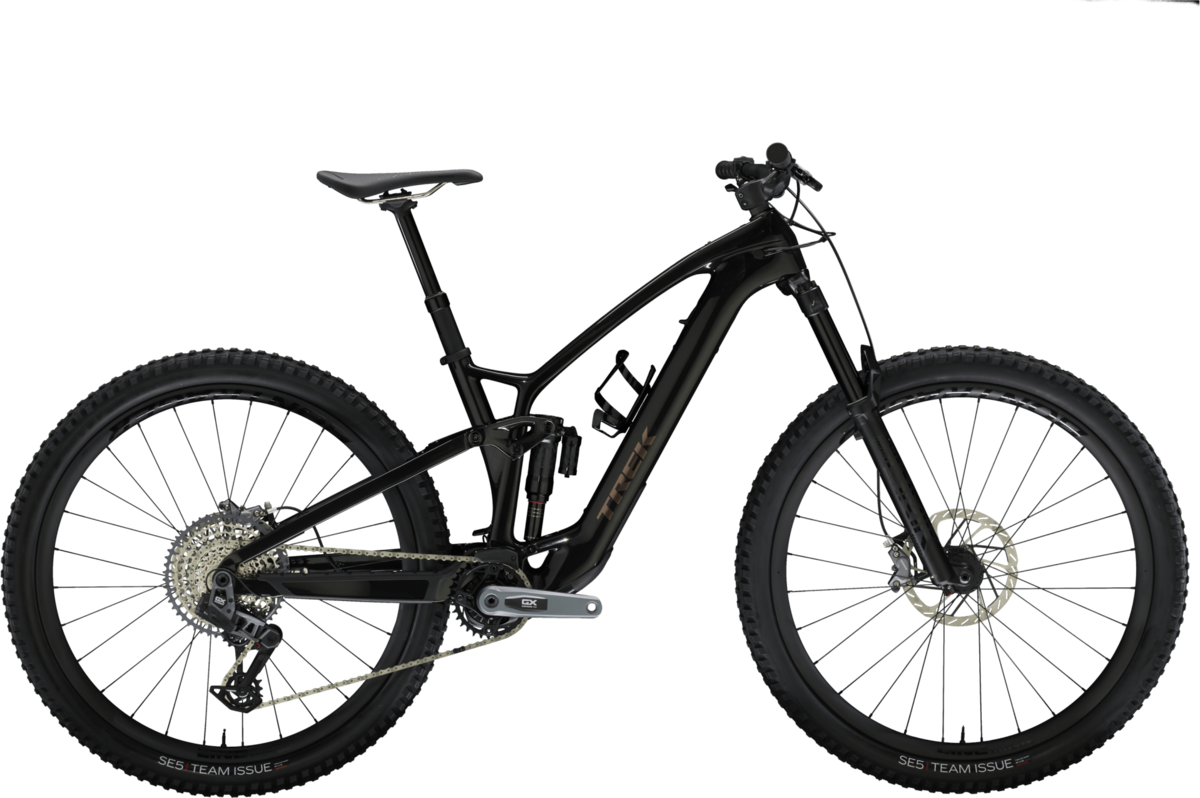

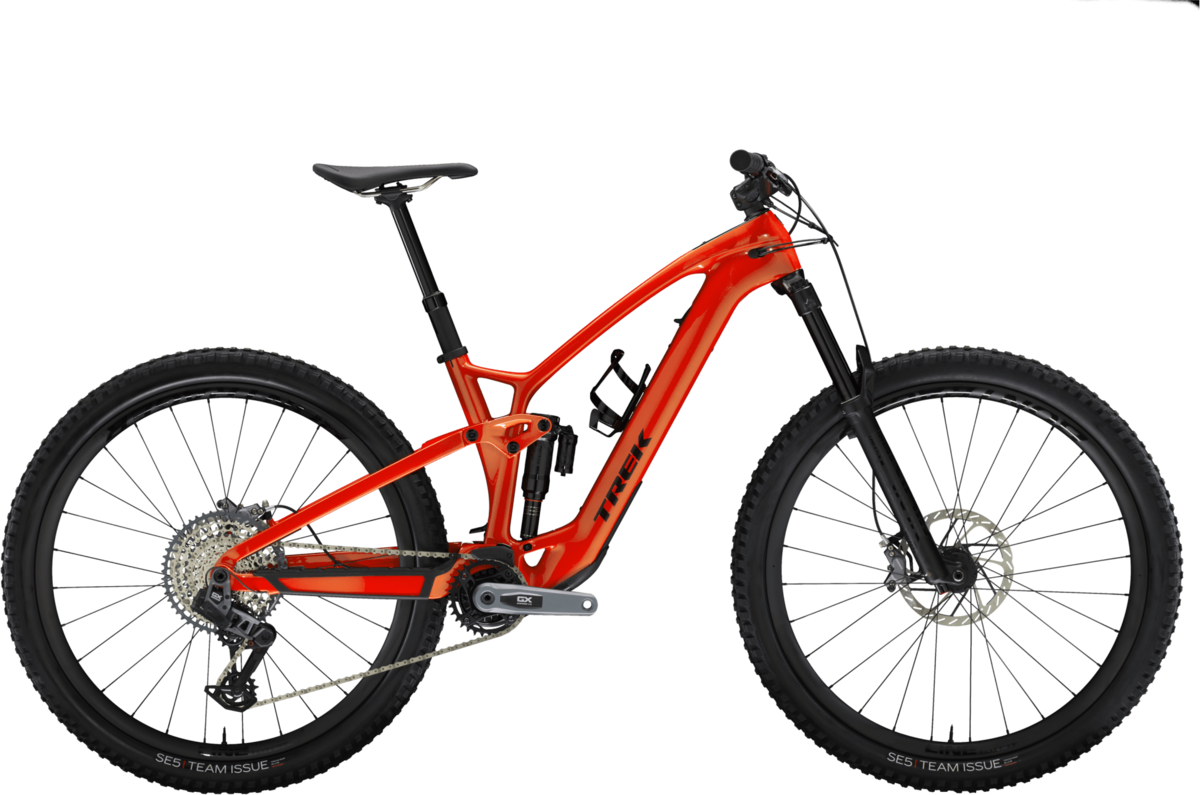

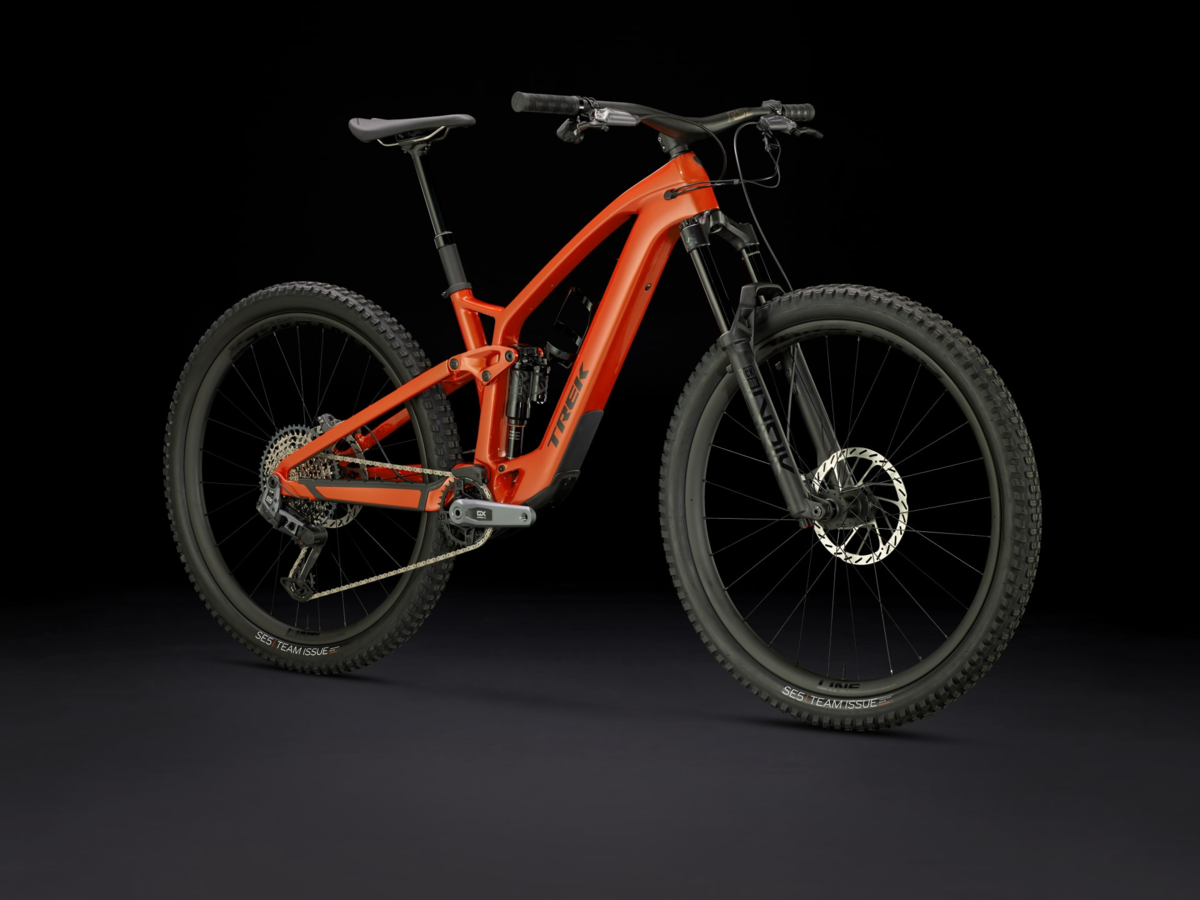

The Fuel EXe 9.8 GX AXS takes a revolutionary approach to e-mountain biking, offering a powerful yet compact motor that brings advanced technology to the trails. Built with a carbon fiber chassis that’s lightweight and nimble, this bike delivers a lively and playful feel. It's topped off with high-end components, including carbon wheels, wireless SRAM GX AXS shifting, and silky-smooth suspension from RockShox, making it the perfect blend of traditional mountain biking with an electric boost.
It's right for you if…
You want a trail bike that rides like a traditional mountain bike in technical terrain but provides a discreet boost of pedal power when needed. You appreciate cutting-edge technology from motor to groupset and want upgraded suspension that keeps you floating on the trails without compromising the natural experience of mountain biking.
The tech you get

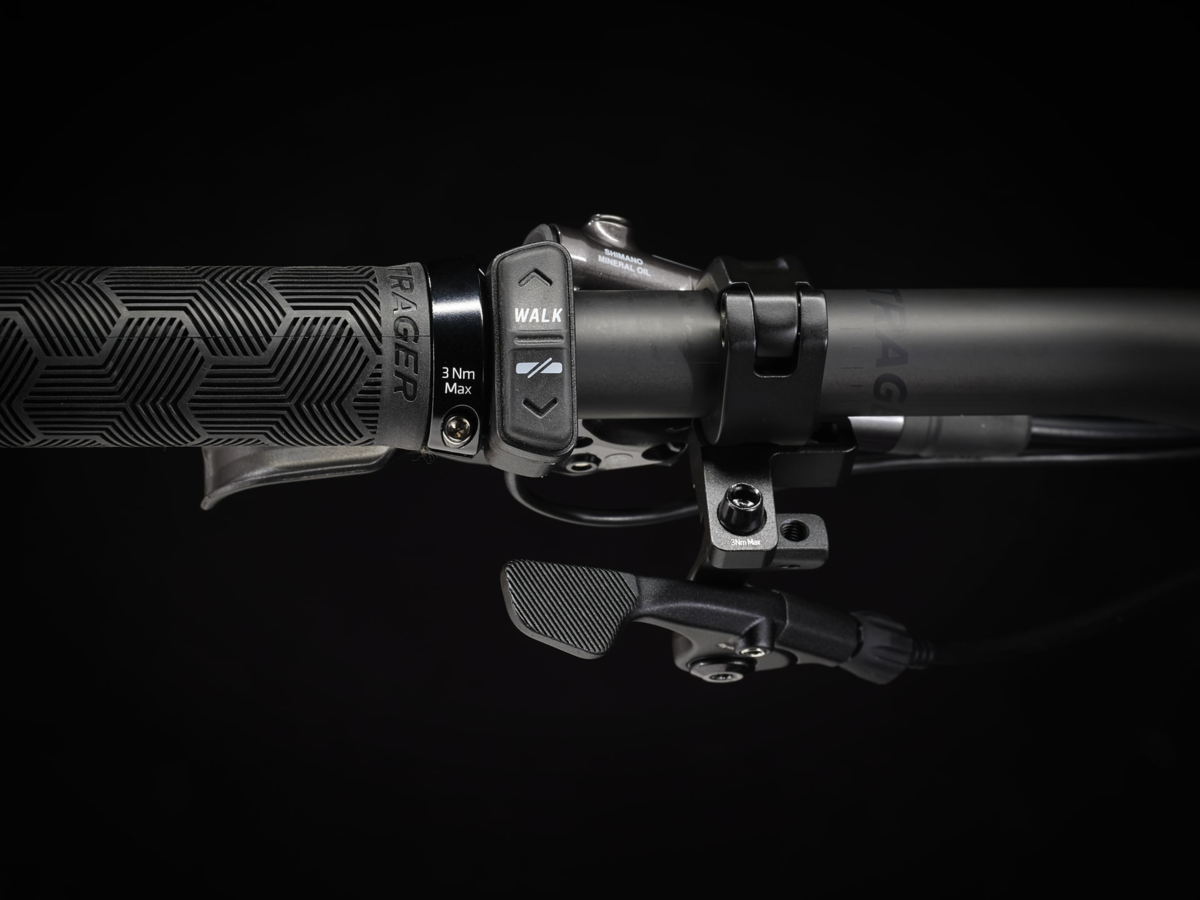

The Fuel EXe 9.8 GX AXS features an OCLV Mountain Carbon frame with a fully integrated 360Wh battery and TQ harmonic pin ring transmission. It comes with a smart charging port, integrated LED display, and discreet handlebar remote. The suspension system includes a 150mm RockShox Lyrik Select+ fork with a DebonAir spring and Charger 2.1 RC damper, along with 140mm RockShox Super Deluxe Select+ rear suspension. Additionally, SRAM's wireless GX AXS transmission ensures precise shifting, even under load, while the bike rolls on carbon wheels for added performance.
The final word
The Fuel EXe 9.8 is a refined trail bike that gives you just the right amount of assistance for climbing while retaining the natural feel of a traditional mountain bike on descents. With advanced technologies like the TQ transmission and wireless SRAM GX AXS shifting, along with carbon wheels and upgraded RockShox suspension, this bike is built to tackle technical trails with ease and style.
Why you'll love it:
- It rides like a traditional trail bike on descents while providing adaptive pedal assist for climbs, making the ride feel natural.
- The TQ transmission is quiet and responsive, offering a smooth, powerful boost without overwhelming the experience.

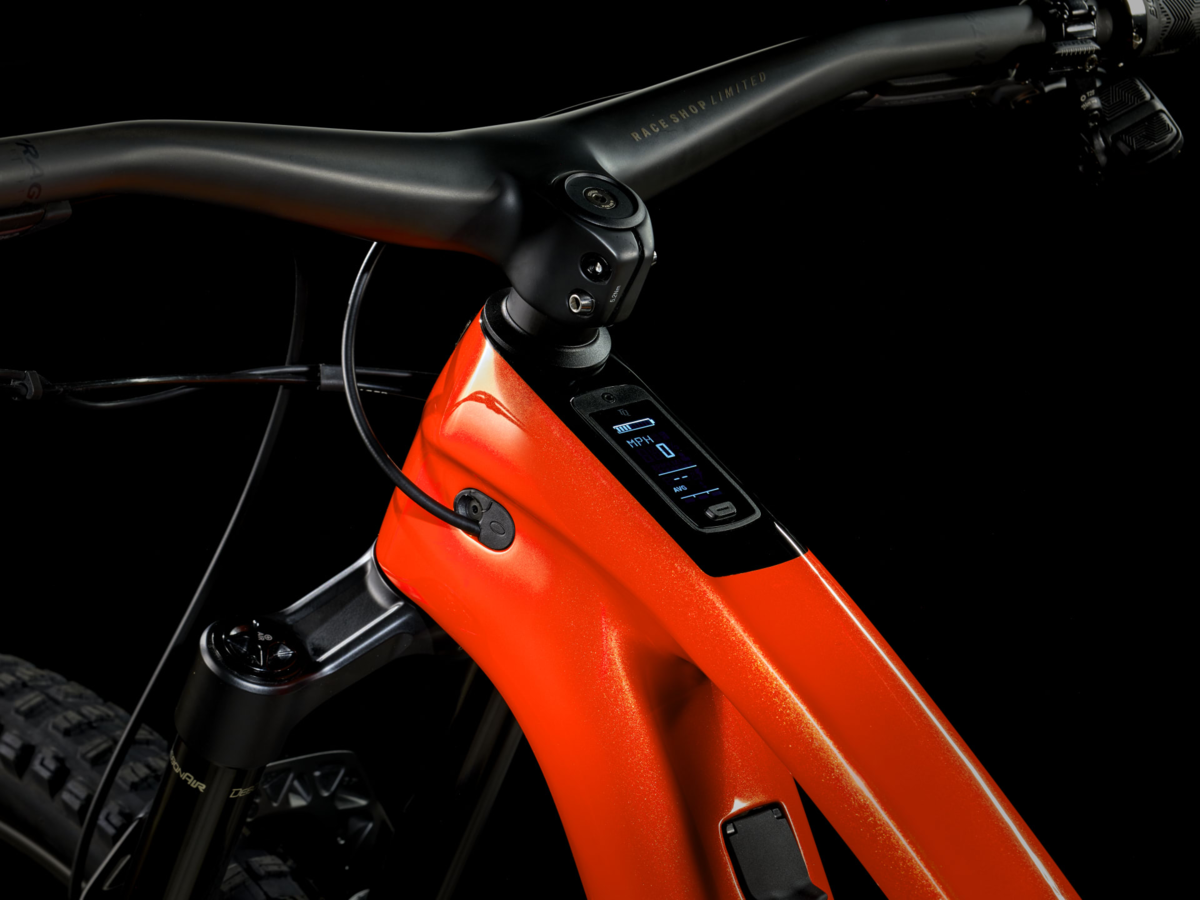

- Smart charge port, sleek integrated display, and discreet controls maintain the look and feel of a traditional mountain bike.

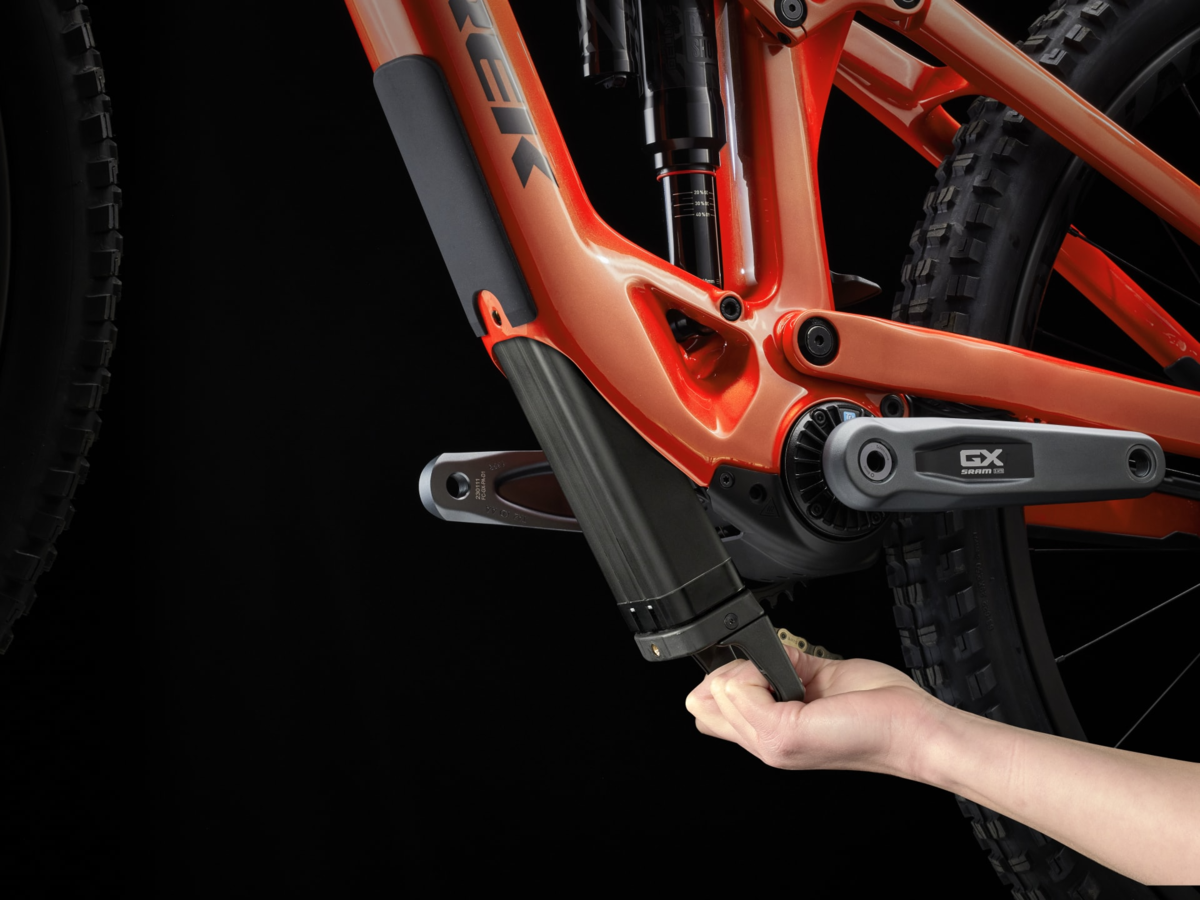

- The battery is easy to remove with an Allen wrench — no proprietary tools needed.
- A range extender can be added for extra power on long rides.
Specifications:
| Category | Electric Mountain Bike |
|---|---|
| Motor | TQ Harmonic Pin Ring Transmission |
| Battery Capacity | 360Wh (with range extender compatibility) |
| Battery Range | Up to 50 miles |
| Suspension | 150mm RockShox Lyrik Select+ fork, 140mm RockShox Super Deluxe Select+ rear |
| Frame | OCLV Mountain Carbon |
| Wheel Size | 29" Carbon Wheels |
| Drivetrain | SRAM GX AXS wireless transmission |
| Brakes | Hydraulic disc brakes |
| Weight | 44 lbs |
Sizing
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size number | 15.5" | 15.5" | 17.5" | 17.5" | 19.5" | 19.5" | 21.5" | 21.5" |
|---|---|---|---|---|---|---|---|---|
| Frame size letter | S | S | M | M | L | L | XL | XL |
| Geometry position | High | Low | High | Low | High | Low | High | Low |
| Wheel size | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| A — Seat tube | 38 | 38 | 41 | 41 | 43.5 | 43.5 | 47 | 47 |
| B — Seat tube angle | 69.3° | 68.8° | 69.8° | 69.3° | 70.8° | 70.3° | 71.3° | 70.8° |
| Effective seat tube angle | 77.3° | 76.8° | 77.3° | 76.8° | 77.3° | 76.8° | 77.3° | 76.8° |
| C — Head tube length | 10 | 10 | 11 | 11 | 11 | 11 | 12 | 12 |
| D — Head angle | 65.3° | 64.8° | 65.3° | 64.8° | 65.3° | 64.8° | 65.3° | 64.8° |
| E — Effective top tube | 57.2 | 57.3 | 59.9 | 60 | 62.9 | 63 | 65.6 | 65.8 |
| F — Bottom bracket height | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 |
| G — Bottom bracket drop | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 |
| H — Chainstay length | 43.8 | 44 | 43.8 | 44 | 43.8 | 44 | 43.8 | 44 |
| I — Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| J — Trail | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 |
| K — Wheelbase | 118.7 | 118.8 | 121.6 | 121.7 | 124.6 | 124.7 | 127.6 | 127.6 |
| L — Standover | 73.2 | 72.6 | 73.3 | 72.7 | 73.9 | 73.3 | 75.9 | 75.3 |
| M — Frame reach | 43.4 | 42.8 | 45.9 | 45.3 | 48.9 | 48.3 | 51.4 | 50.8 |
| N — Frame stack | 61.6 | 62 | 62.5 | 62.9 | 62.5 | 62.9 | 63.4 | 63.8 |
Specs

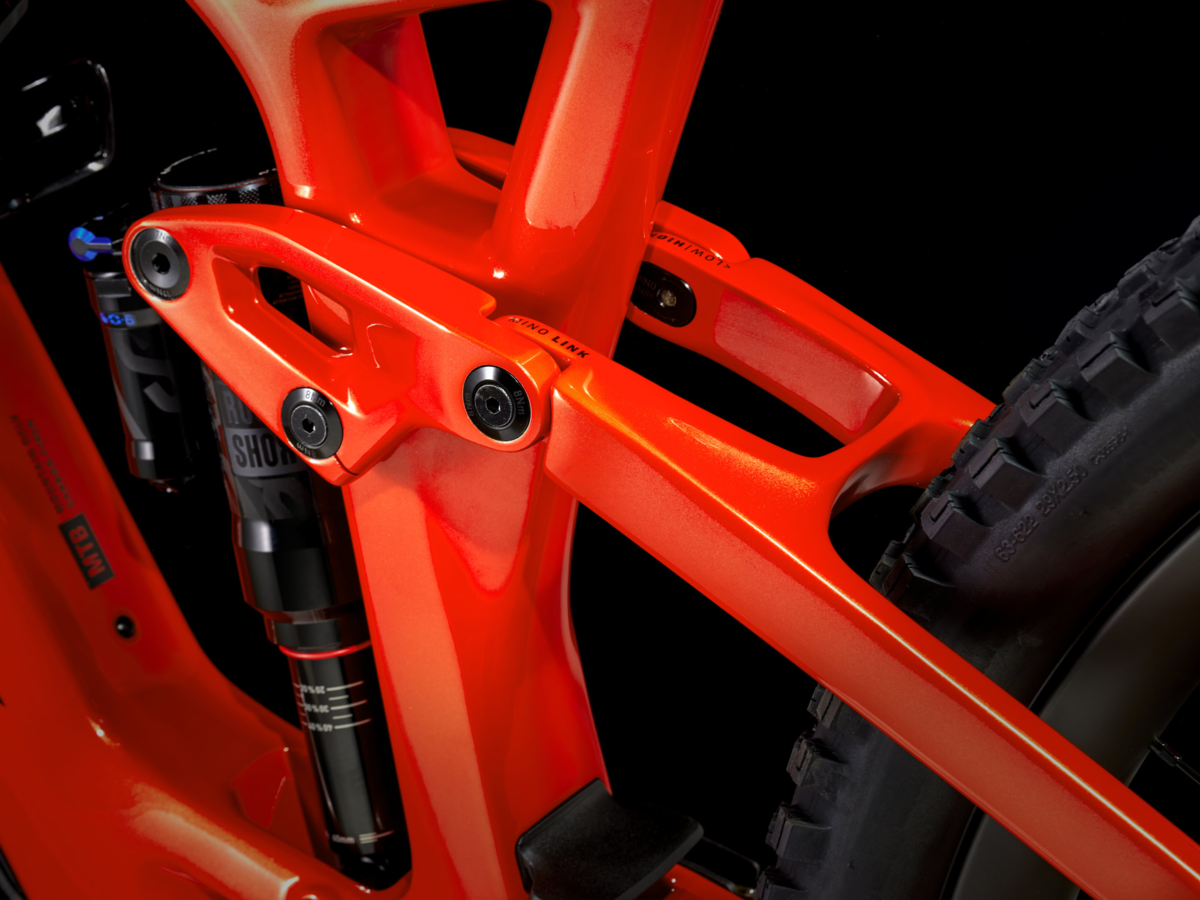

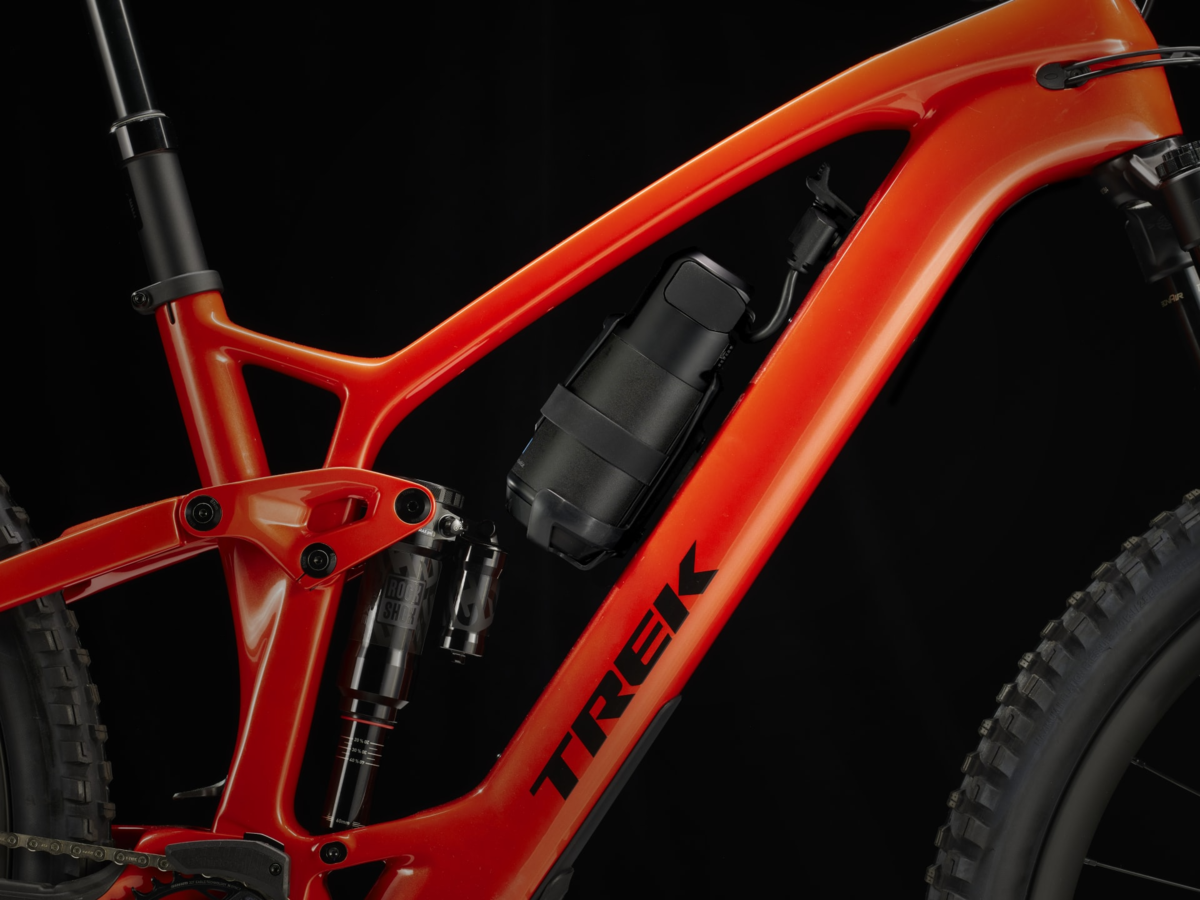

| Frame | OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel |
|---|---|
| Fork | RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |

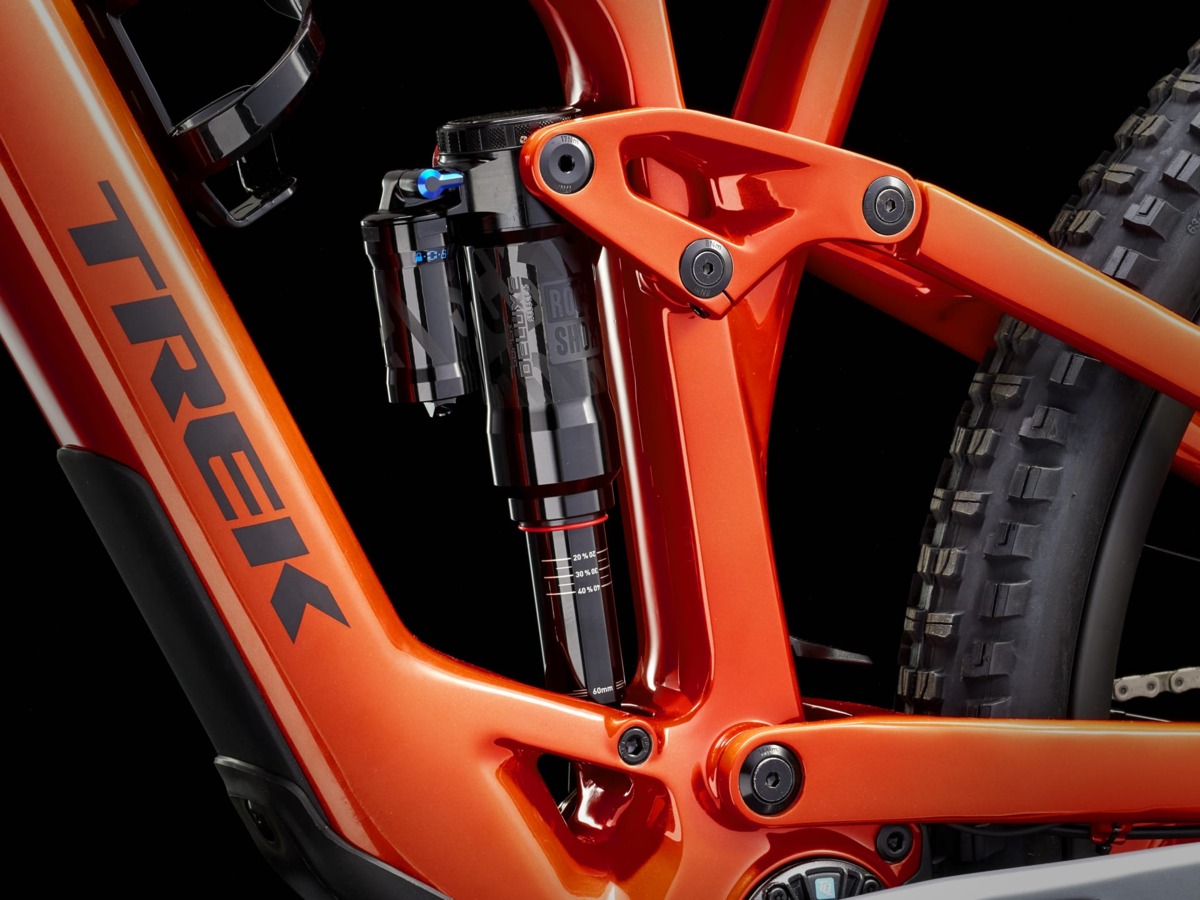

| Rear Shock | RockShox Super Deluxe Select+ RT, 205mm x 60mm |
| Wheels |
Front: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle Rear: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle |
| Tires | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" |
| Crankset | SRAM GX, 165mm length |
| Chainrings | SRAM X-SYNC 2, 32T, alloy |
| Shifters | SRAM Eagle AXS POD |
| Rear Derailleur | SRAM GX Eagle AXS, T-Type |
| Cassette/Freewheel | SRAM Eagle XS-1275, T-Type,10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |

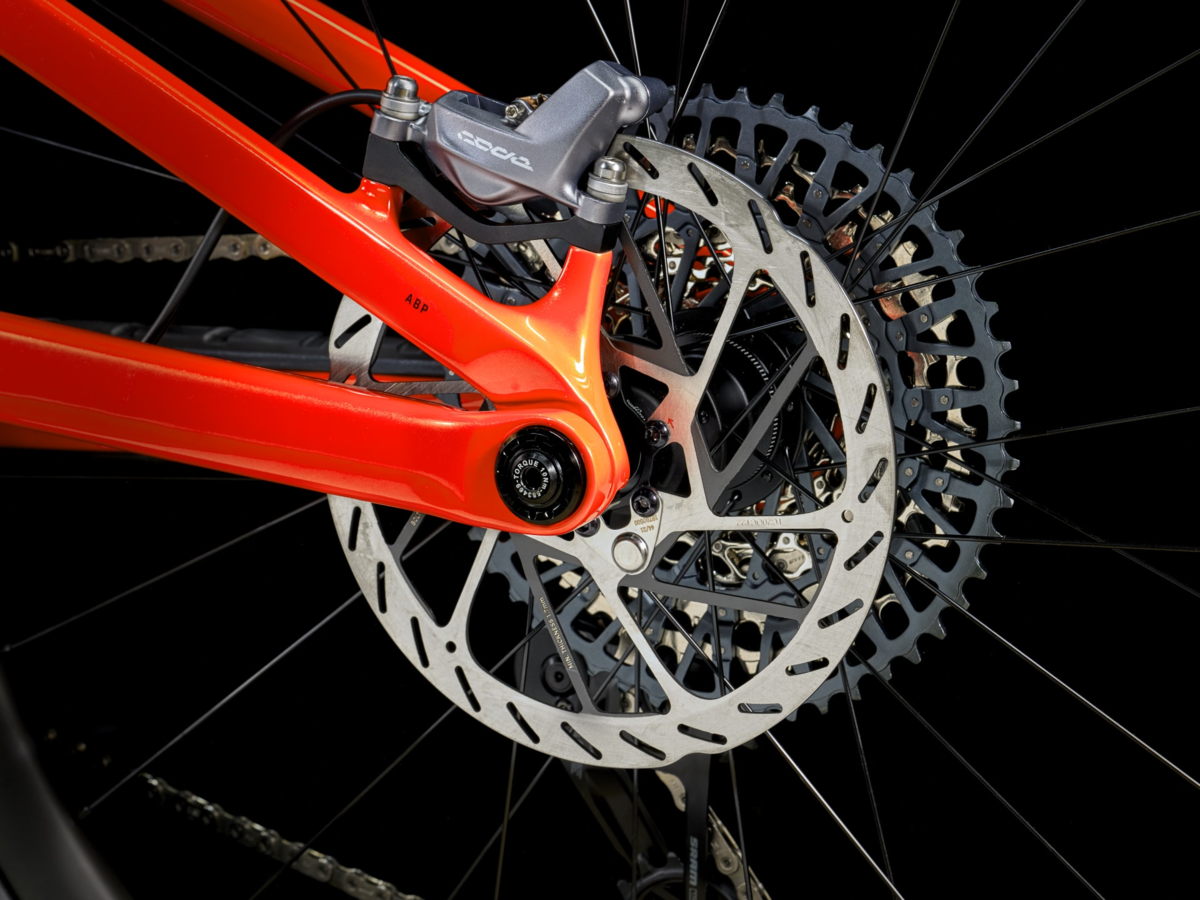

| Brakes | SRAM CODE Bronze 4-piston hydraulic disc |
| Rotors | SRAM 6-bolt, 200mm |
| Handlebars |
Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length Size: M, L, XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length |
| Tape/Grips | Bontrager XR Trail Elite, nylon lock-on |
| Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Seatpost |
Size: S Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length Size: M Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length Size: L Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length Size: XL Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Pedals | Sold separately |

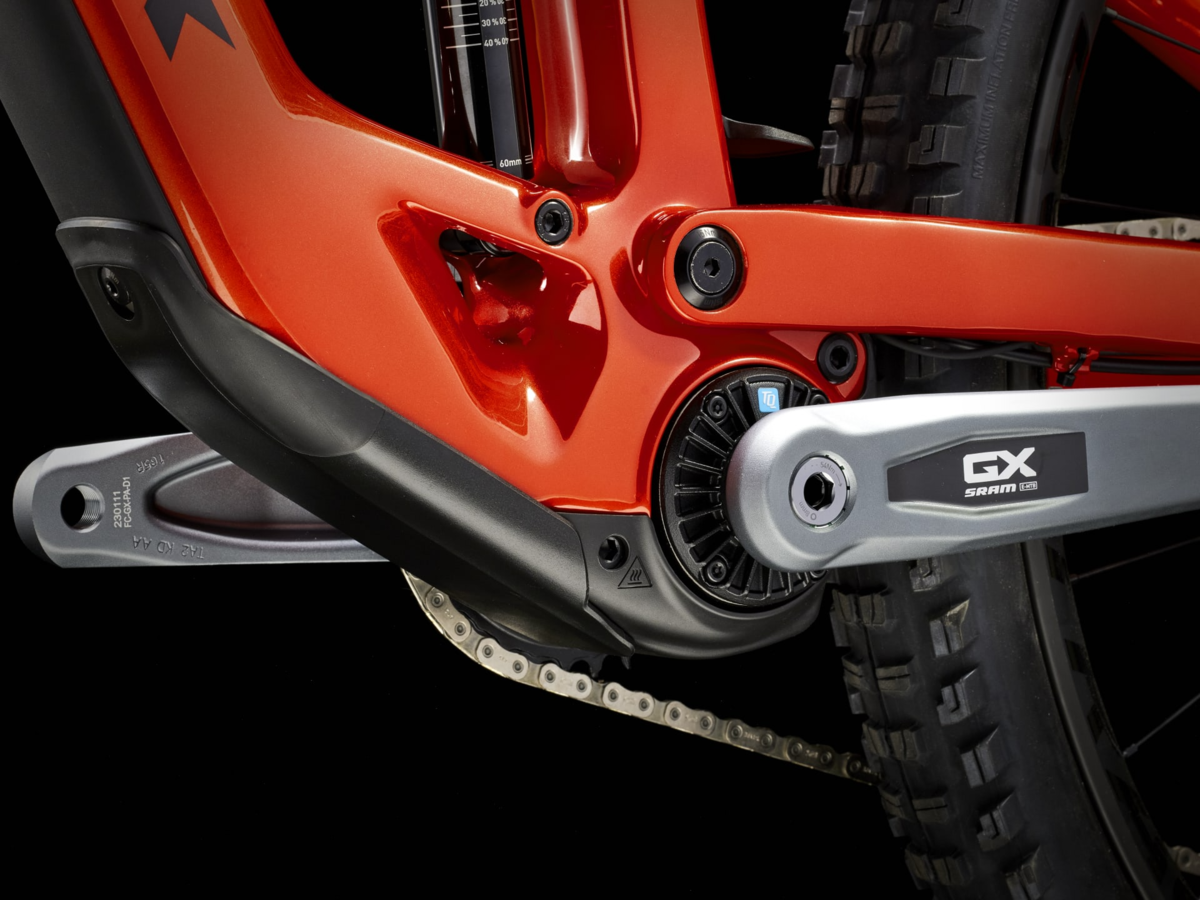

| Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
| Battery | TQ 360Wh |

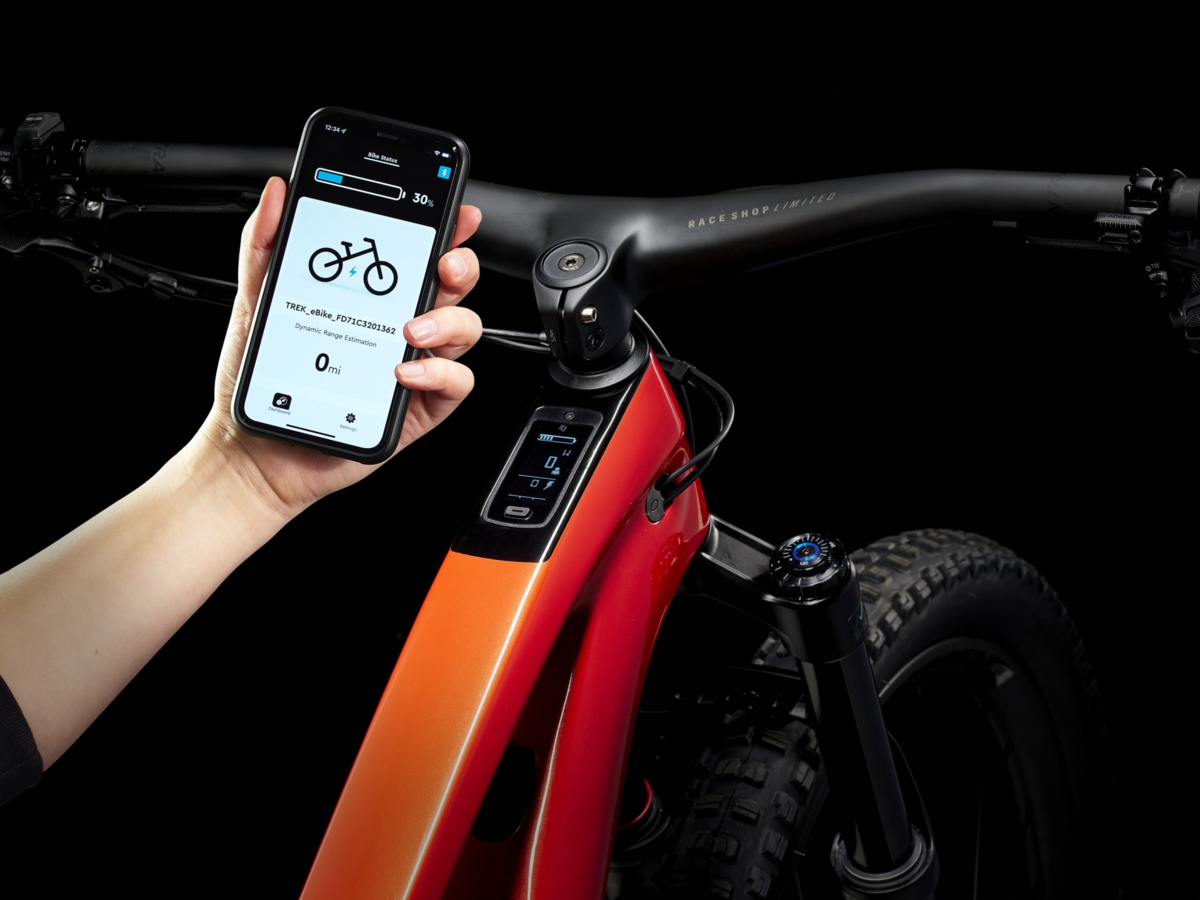

| Controller/Display | TQ LED display with Bluetooth & ANT+ connectivity |
| Charger | TQ 4A charger |
* Subject to change without notice.
