Trek Fuel EXe 8 XT

Product Details

Category: Electric Mountain Bike

Description:

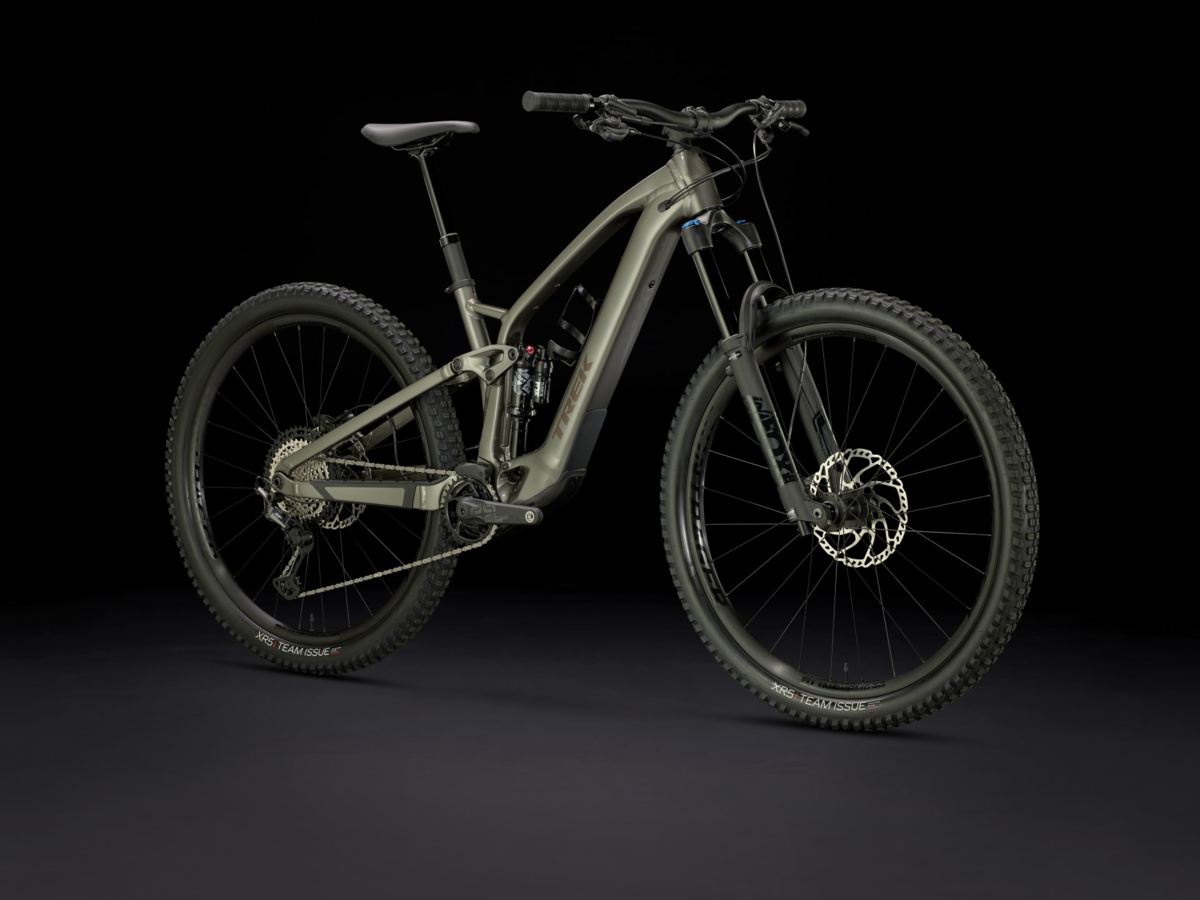

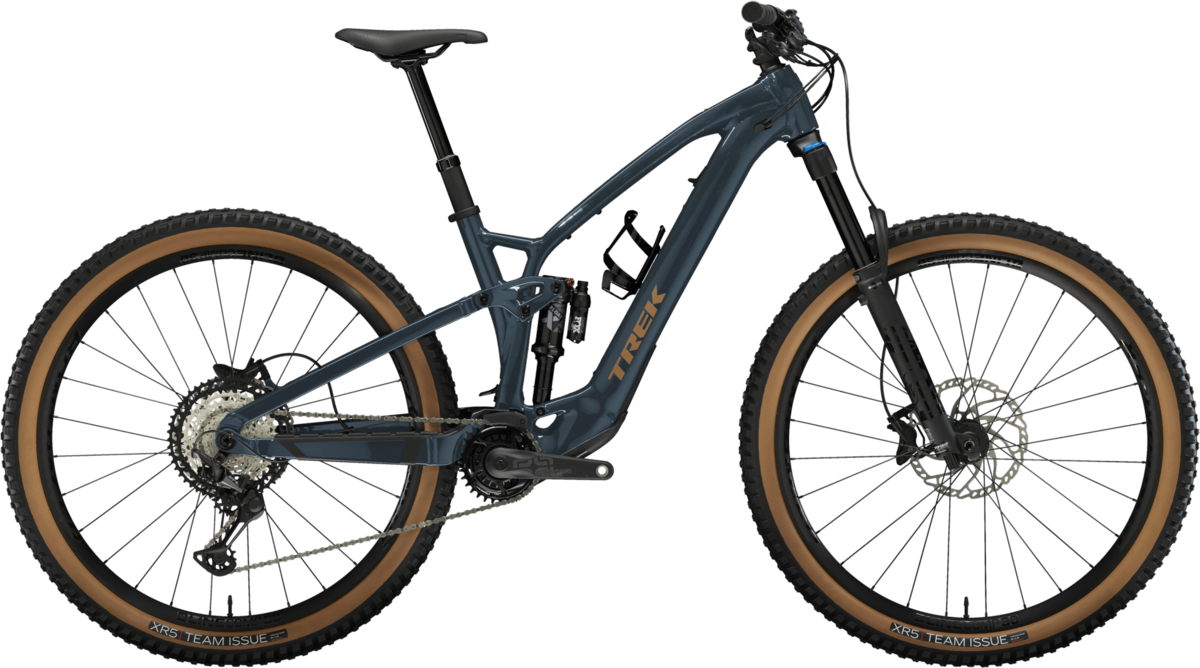

The Fuel EXe 8 is a trail-ready aluminum electric mountain bike that gives you the power you need on climbs while retaining the feel and handling of a traditional trail bike on descents. Powered by the compact and efficient TQ harmonic pin ring drive system, it quietly assists you with smooth, natural pedal power. Equipped with a FOX suspension package, Bontrager Line Comp Tubeless Ready wheels, and a Shimano XT 12-speed drivetrain, this bike is built to perform, while offering a more budget-friendly option than its carbon counterparts.

It's right for you if…
You want a high-performance electric mountain bike with advanced technology, but at a more affordable price. The Fuel EXe 8 gives you the same motor system, display, and geometry as the top-tier models, with a robust alloy frame and upgraded components to ensure you’re ready to rip on any trail.

The tech you get

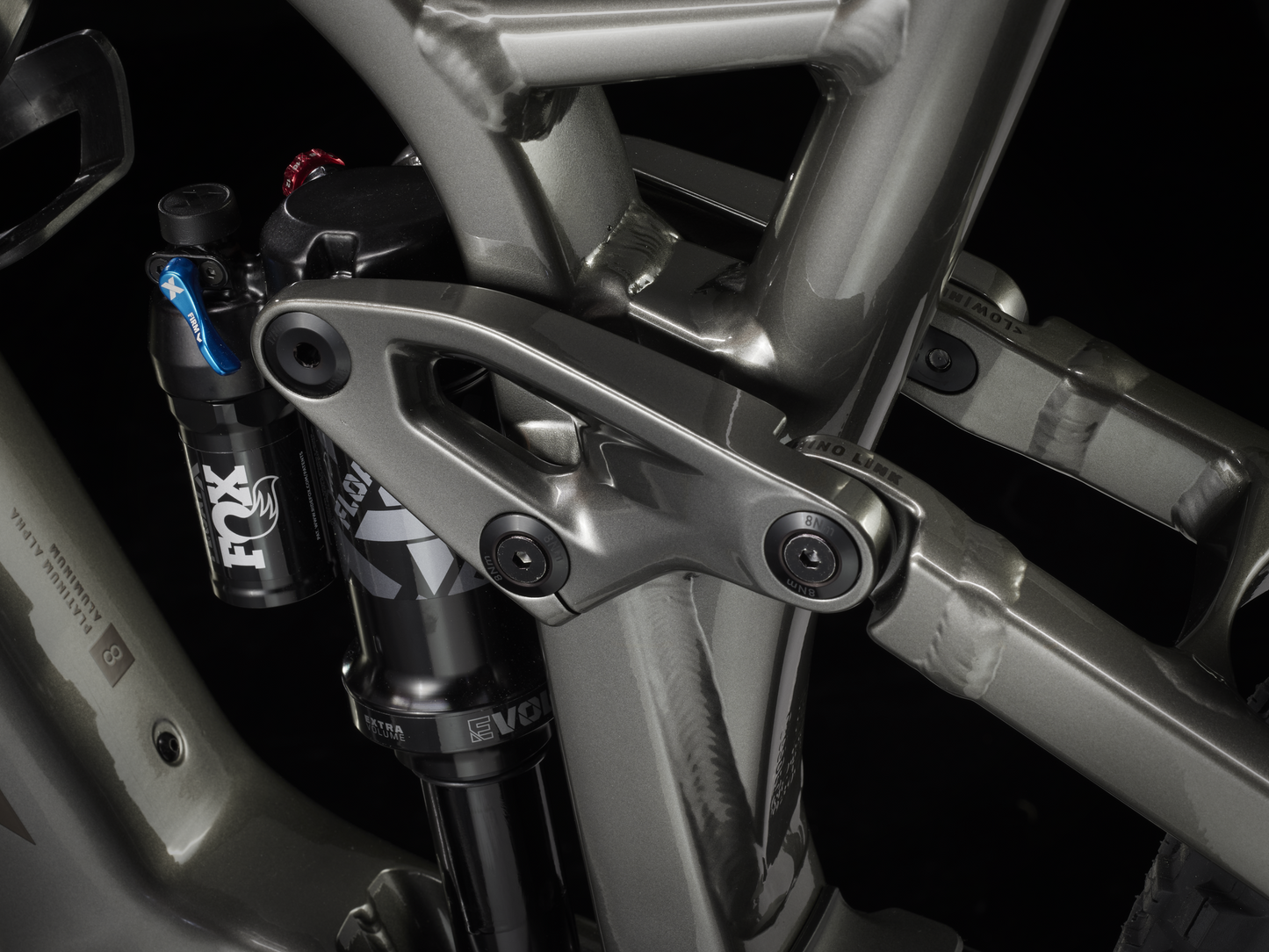

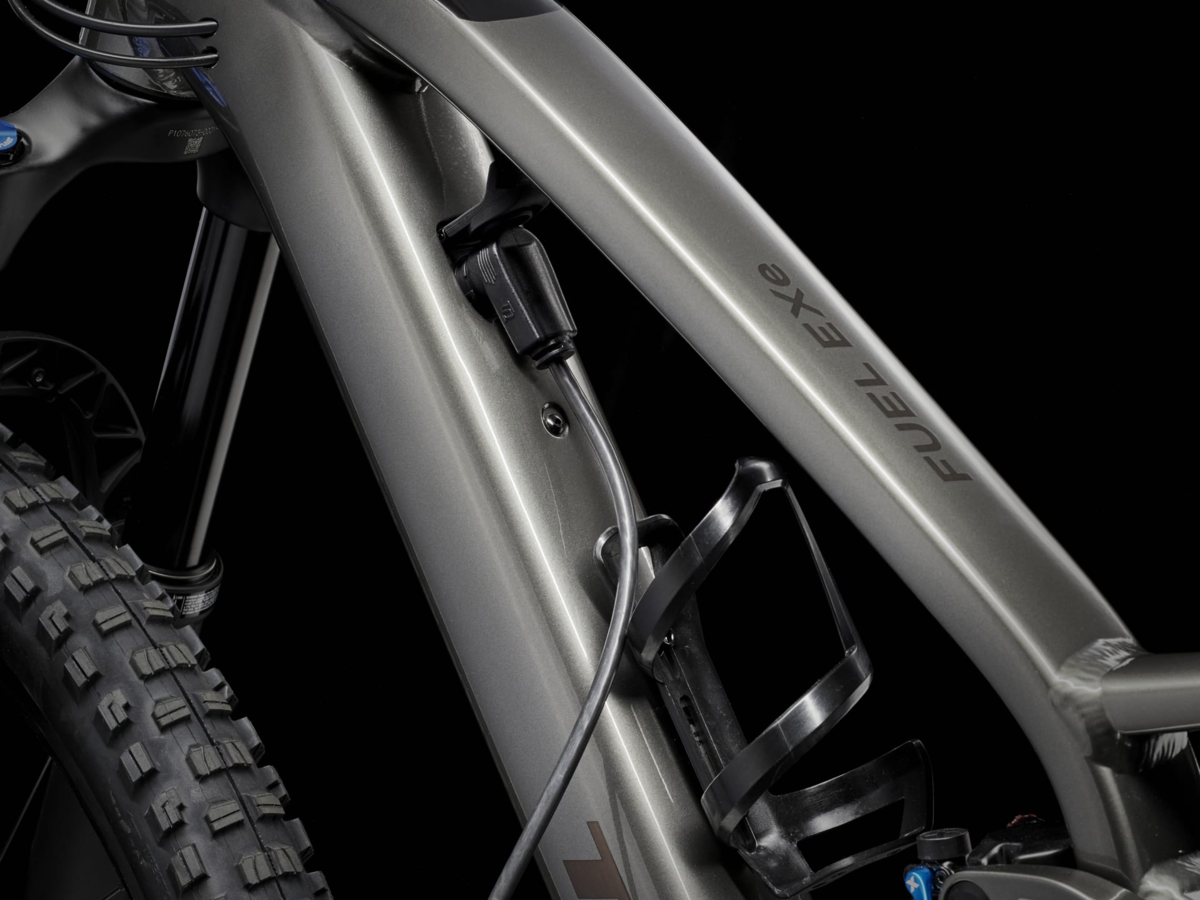

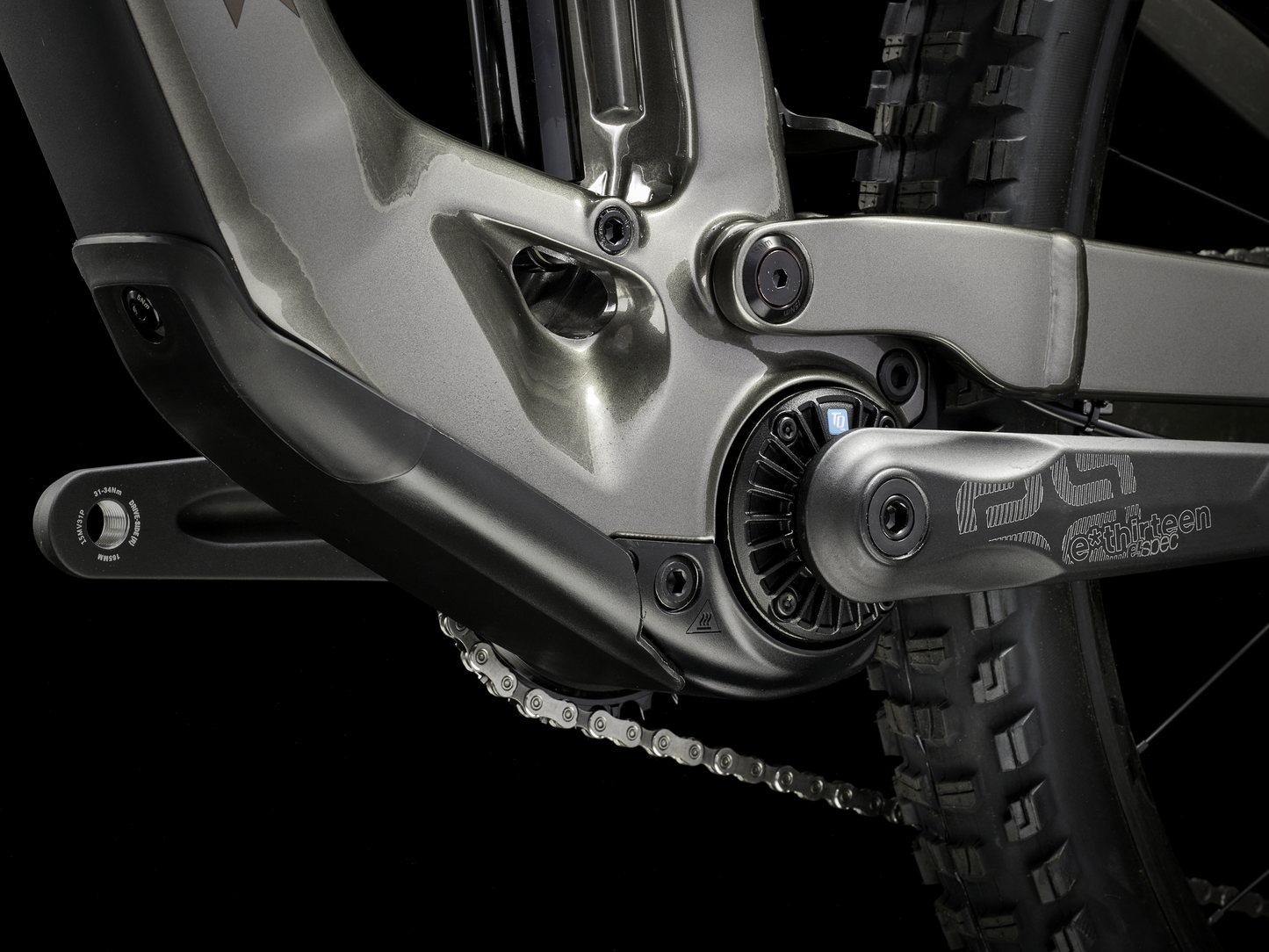

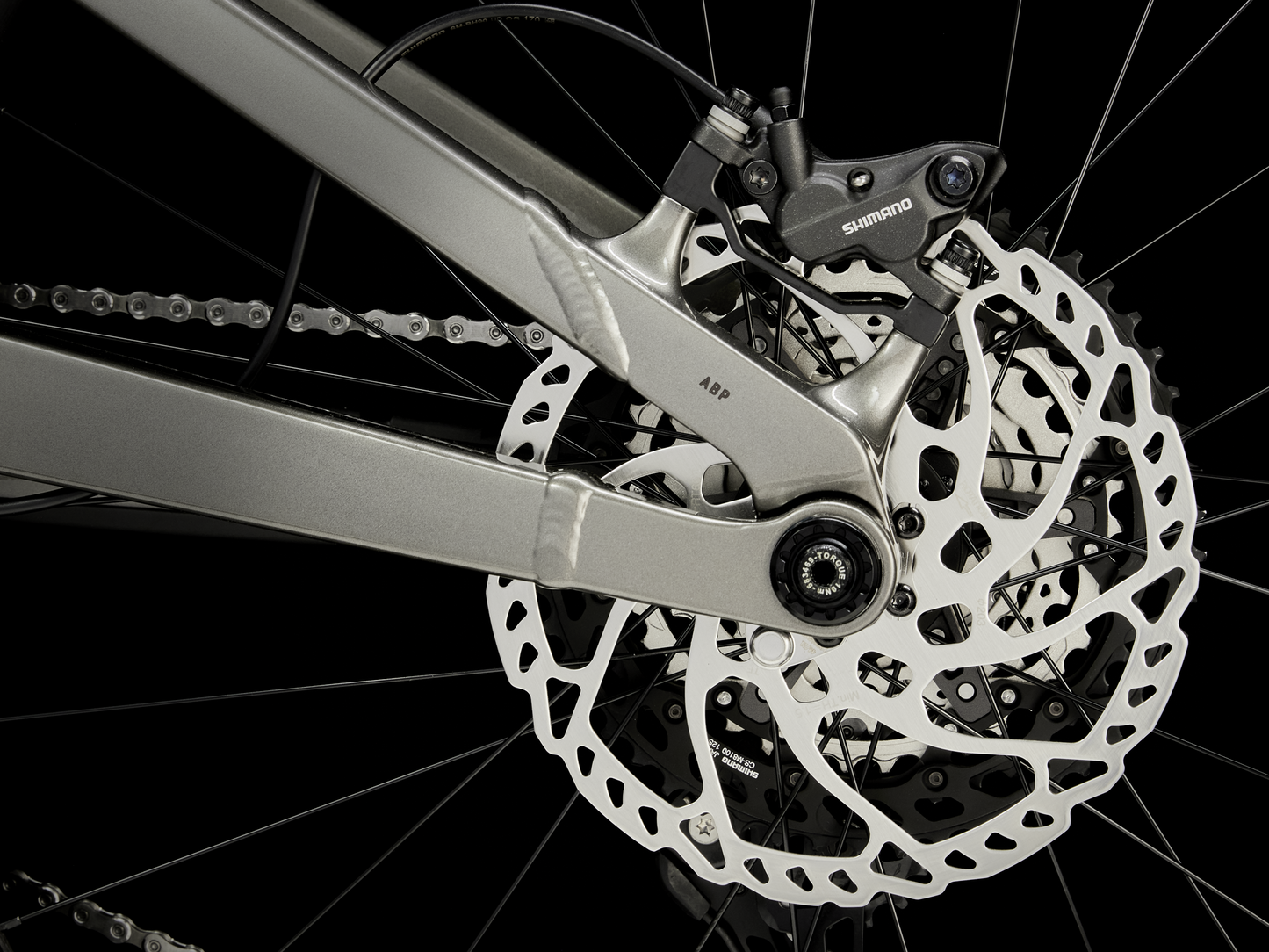

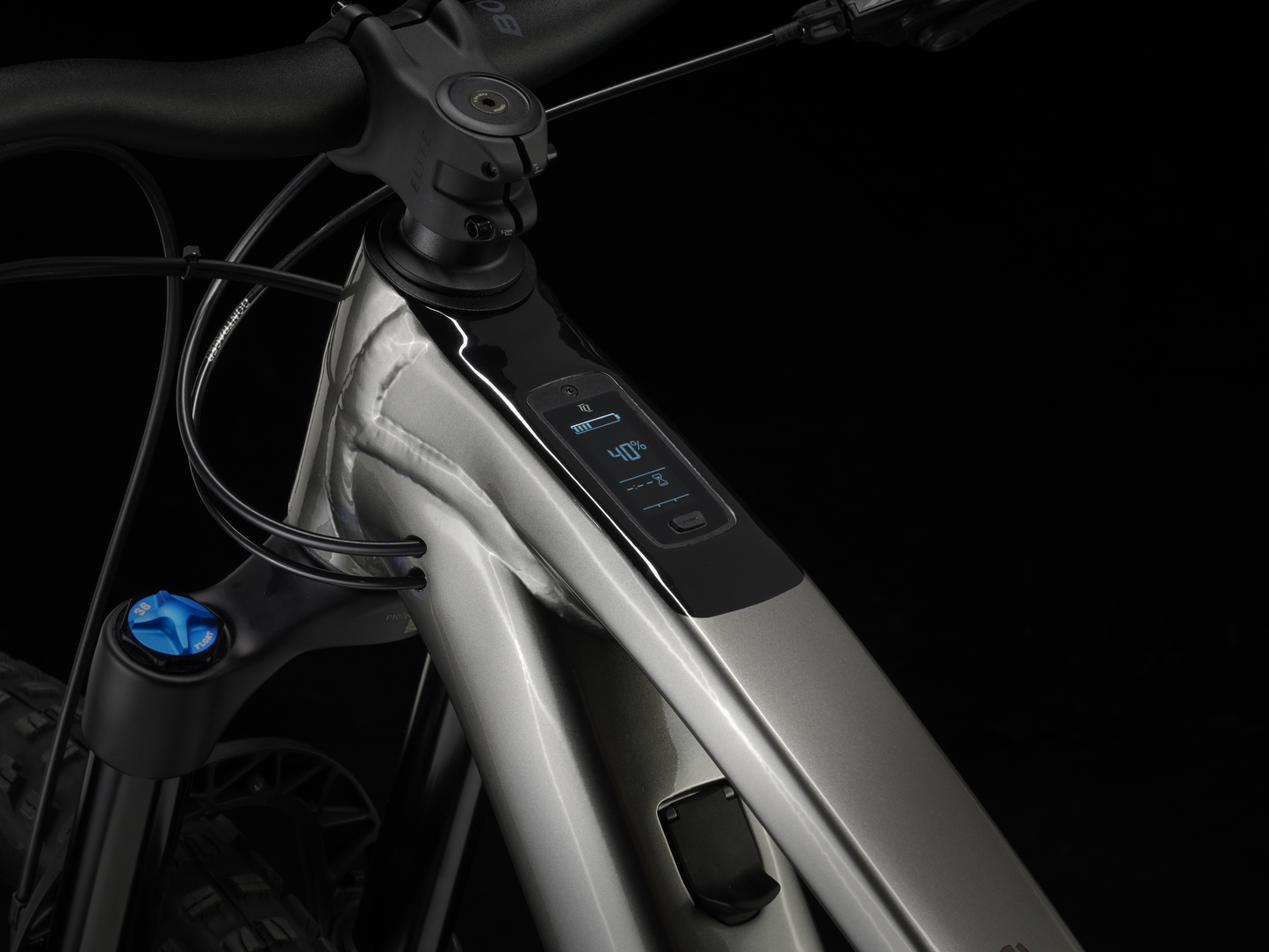

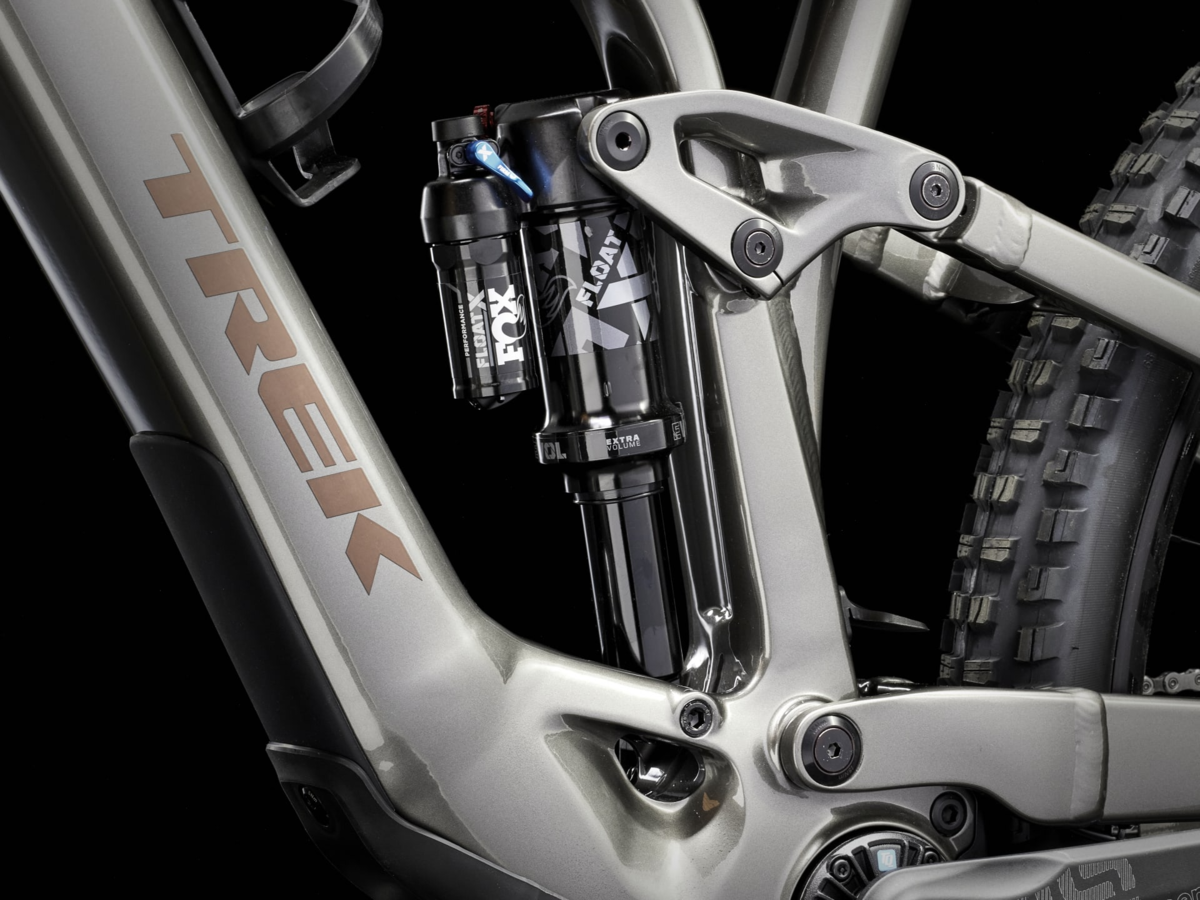

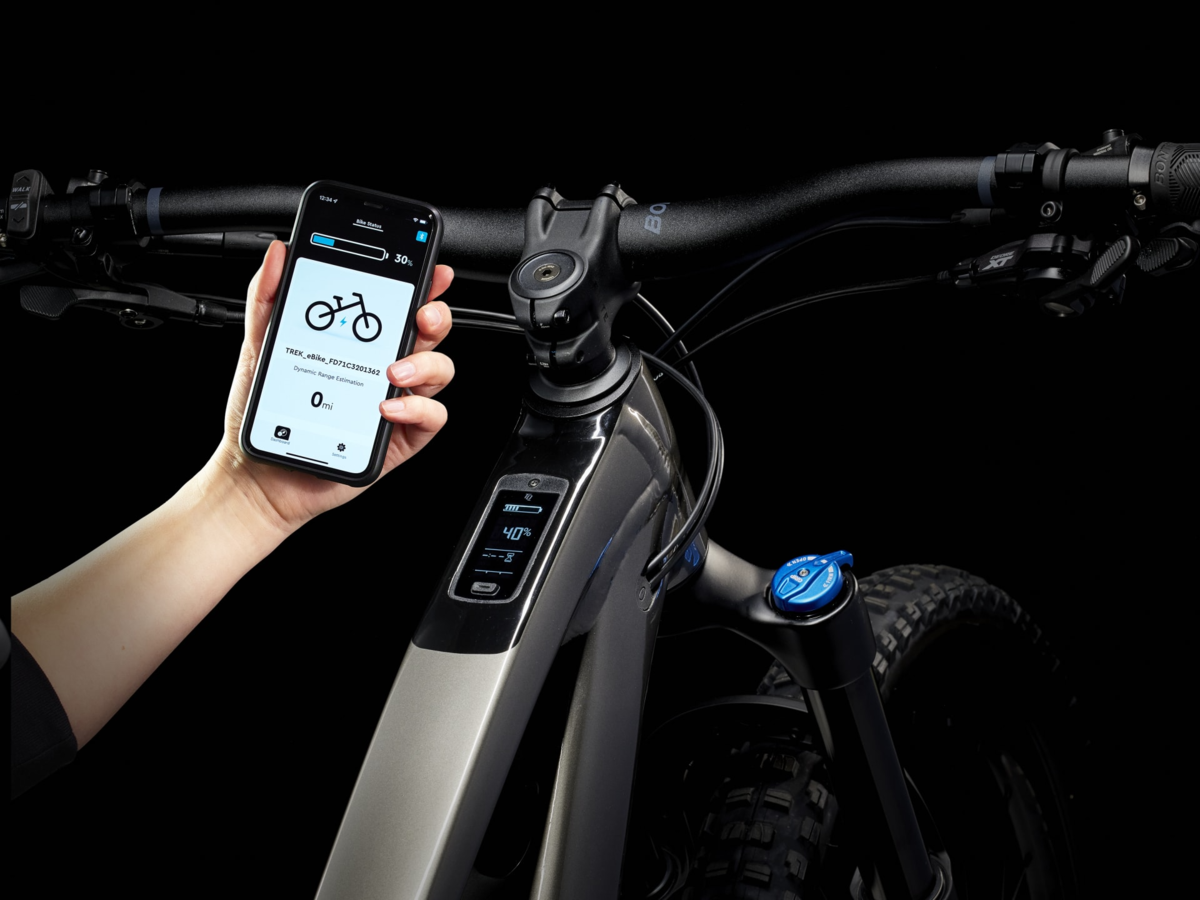

The Fuel EXe 8 features an Alpha Platinum Aluminum frame, powered by TQ’s HPR50 harmonic pin ring drive system and a fully-encased 360Wh removable battery with a smart charging port. It includes an integrated LED display and handlebar remote for easy operation. The bike comes with 150mm of front travel provided by a FOX Rhythm 36 suspension fork and 140mm of rear travel from a FOX Performance Float X rear shock. It rolls on Bontrager Line Comp 30 Tubeless Ready wheels and is equipped with a 12-speed Shimano XT drivetrain, hydraulic disc brakes, and a dropper post for better control on descents.

The final word
The Fuel EXe 8 delivers all the cutting-edge technology of the top-tier models at a lower price. You get the same advanced motor system, geometry, and a powerful suspension package that smooths out trails and keeps your ride comfortable. This is a high-performance, budget-friendly e-MTB that’s ready to handle the toughest trails.

Why you'll love it:

• You get the advanced technology of our top-end light e-MTB without the high price tag.
• The upgraded FOX suspension package smooths out rough trails, and the Shimano XT 12-speed drivetrain shifts cleanly under load.
• The compact TQ motor is quiet and responsive, providing a natural ride feel without overwhelming the experience.
• The integrated display, charging port, and controls are sleek, intuitive, and easy to use.
• You can tweak your geometry with the Mino Link or add an adjustable angle headset for even more control.

Specifications:

Sizing

Geometry

Frame size number	15.5"	15.5"	17.5"	17.5"	19.5"	19.5"	21.5"	21.5"
Frame size letter	S	S	M	M	L	L	XL	XL
Geometry position	High	Low	High	Low	High	Low	High	Low
Wheel size	29"	29"	29"	29"	29"	29"	29"	29"
A — Seat tube	38	38	41	41	43.5	43.5	47	47
B — Seat tube angle	69.3°	68.8°	69.8°	69.3°	70.8°	70.3°	71.3°	70.8°
Effective seat tube angle	77.3°	76.8°	77.3°	76.8°	77.3°	76.8°	77.3°	76.8°
C — Head tube length	10	10	11	11	11	11	12	12
D — Head angle	65.3°	64.8°	65.3°	64.8°	65.3°	64.8°	65.3°	64.8°
E — Effective top tube	57.2	57.3	59.9	60	62.9	63	65.6	65.8
F — Bottom bracket height	34.1	33.4	34.1	33.4	34.1	33.4	34.1	33.4
G — Bottom bracket drop	3.2	3.9	3.2	3.9	3.2	3.9	3.2	3.9
H — Chainstay length	43.8	44	43.8	44	43.8	44	43.8	44
I — Offset	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4
J — Trail	12.4	12.7	12.4	12.7	12.4	12.7	12.4	12.7
K — Wheelbase	118.7	118.8	121.6	121.7	124.6	124.7	127.6	127.6
L — Standover	73.2	72.6	73.3	72.7	73.9	73.3	75.9	75.3
M — Frame reach	43.4	42.8	45.9	45.3	48.9	48.3	51.4	50.8
N — Frame stack	61.6	62	62.5	62.9	62.5	62.9	63.4	63.8

All measurements provided in cm unless otherwise noted.
