Trek Fuel EX 8 GX AXS T-Type Gen 6

Trek Fuel EX 8 GX AXS T-Type Gen 6

$3,999.99 USD
$3,999.99 USD
Sale Sold out
Color: Matte Keswick
Size
Wheel Size

  • Due to supply-chain issues, Specs are subject to change without notice.
View full details

Product Details

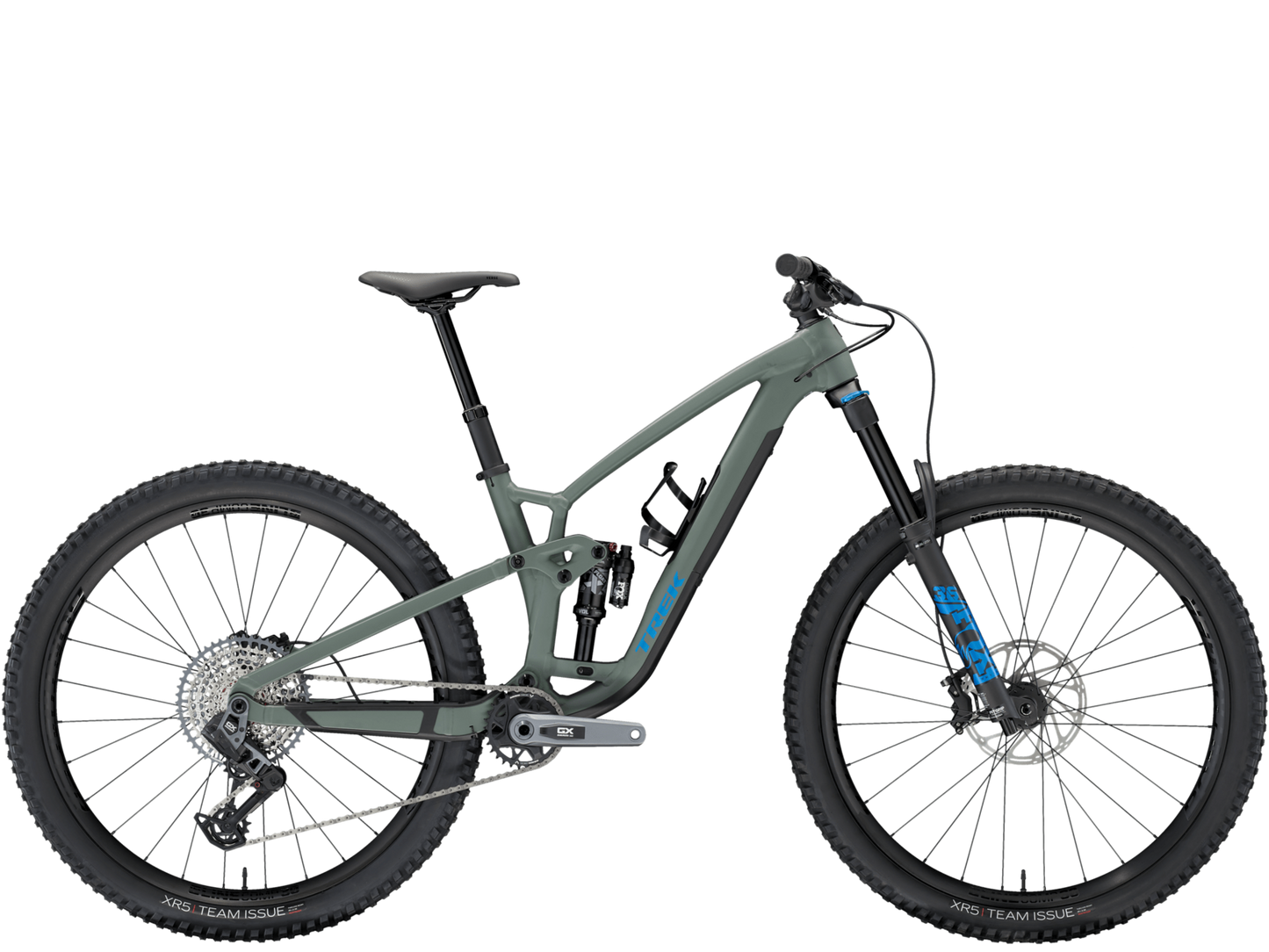

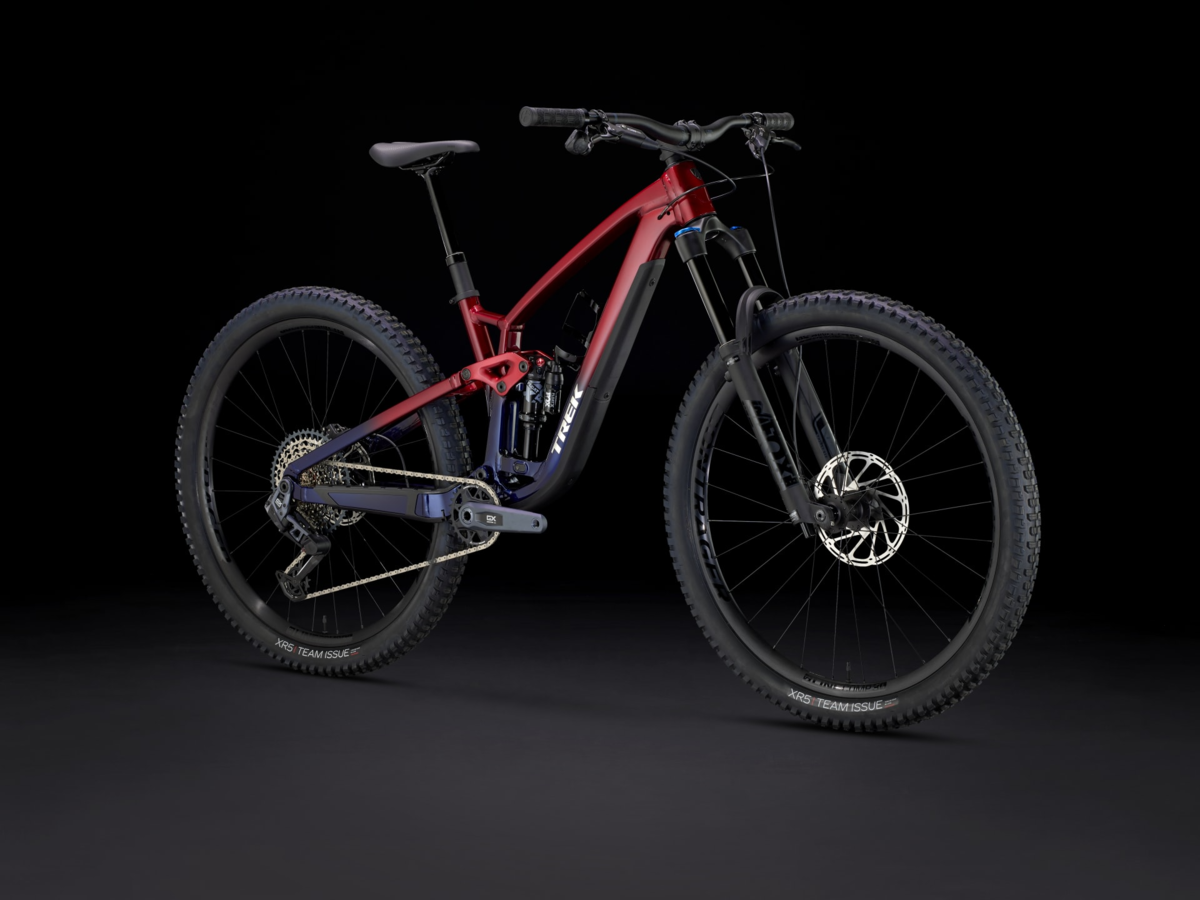

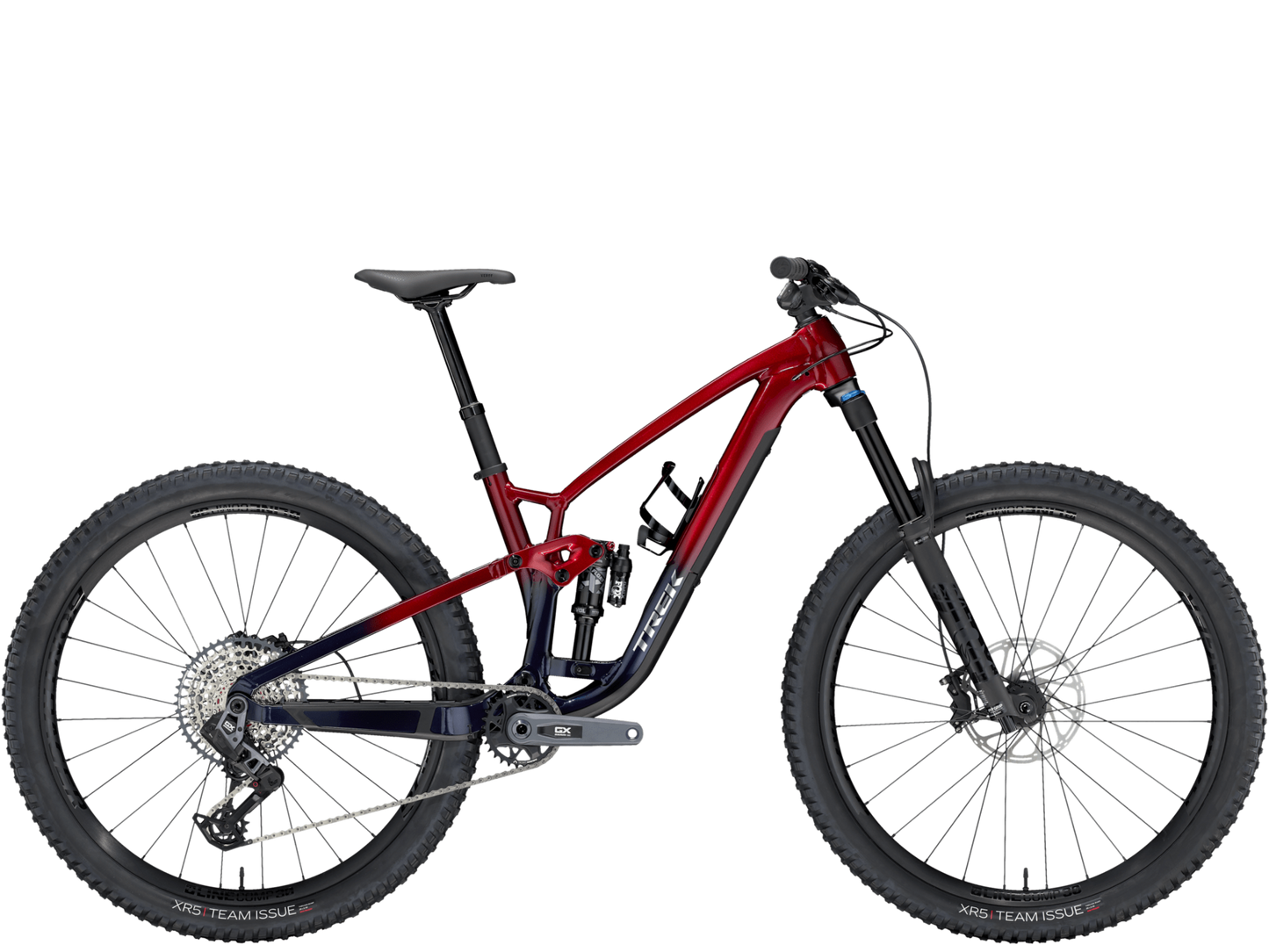

Trek Fuel EX 8 GX AXS T-Type Gen 6

Trail Riding Meets Wireless Precision

The Trek Fuel EX 8 GX AXS T-Type Gen 6 offers a perfect balance of performance and technology for intermediate to advanced riders looking for a high-quality trail bike. With a durable aluminum frame and wireless shifting, this full-suspension bike is ready to take on any challenge on the trail.

Key Features:

  • Alpha Aluminum Frame: Built for durability and responsive handling, the aluminum frame is designed to withstand tough trail conditions.
  • RockShox Pike Select+ Fork: The 140mm travel RockShox fork smooths out rough terrain, delivering precise control on technical trails.
  • SRAM GX AXS Wireless Drivetrain: Experience smooth, cable-free shifting with the wireless 12-speed drivetrain, ensuring efficiency and precision on every ride.

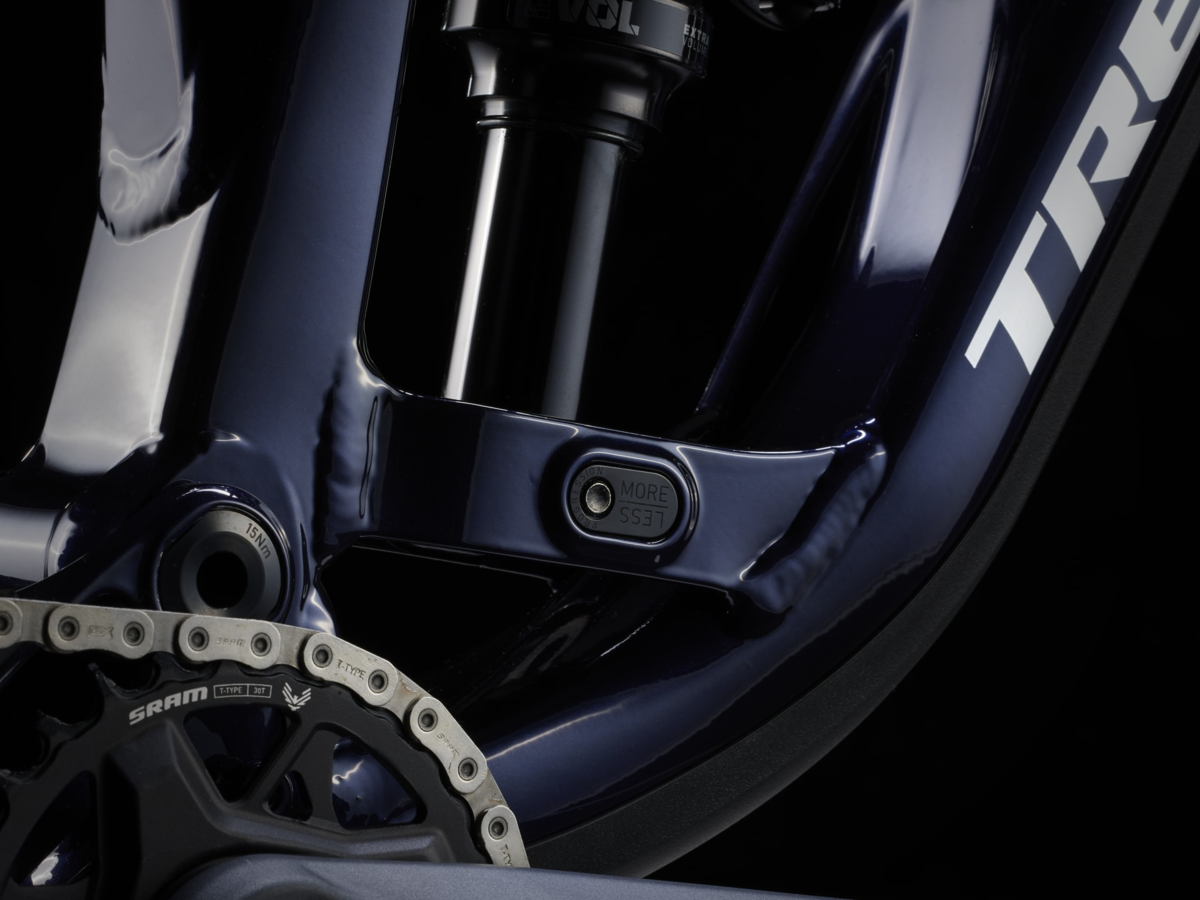

  • Mino Link Adjustable Geometry: Customize your geometry for different riding styles or terrain, giving you the versatility to ride exactly how you want.
  • Bontrager Line Comp Wheels: Tubeless-ready 29" wheels offer the perfect blend of speed and control for varied terrain.
  • Dependable Braking: Hydraulic disc brakes offer reliable stopping power, no matter how tough the conditions.

Performance and Technology in Perfect Harmony

The Fuel EX 8 GX AXS T-Type Gen 6 combines trail-riding versatility with cutting-edge wireless technology to create a bike that performs in any condition. Whether you're tackling fast descents or technical climbs, this bike delivers a smooth, precise ride.

Features:

  • Frame Material: Aluminum
  • Suspension: Full-Suspension (140mm front/130mm rear)
  • Rider Skill Level: Intermediate to Advanced
  • Terrain Focus: Trail Riding
  • Component Quality: Mid-Range (GX AXS Wireless)
  • Technology and Innovations: High-Tech (Wireless Shifting)
  • Weight: Standard (Aluminum Frame)
  • Wheel Size: 29"
  • Travel: Mid Travel (140mm front/130mm rear)
  • Geometry: Slack head tube (66 degrees)
  • Drivetrain: 1x Drivetrain
  • Brakes: Hydraulic Disc Brakes
  • Dropper Post: Yes
  • Tire Width: Standard (2.4" - 2.5")
  • Tubeless-Ready: Yes
  • Pedal Type: Clipless-ready
  • Internal Cable Routing: Yes

Sizing

SizeRider Height (cm)Rider Height (in)Inseam (cm)Inseam (in)
X-Small 145 - 155 4'9" - 5'1" 69 - 73 27 - 29
Small 155 - 165 5'1" - 5'5" 74 - 78 29 - 31
Medium 165 - 176 5'5" - 5'9" 79 - 83 31 - 33
Medium / Large 173 - 180 5'8" - 5'11" 81 - 86 32 - 34
Large 177 - 188 5'10" - 6'2" 84 - 89 33 - 35
X-Large 188 - 195 6'2" - 6'5" 89 - 91 35 - 36
XX-Large 195 - 203 6'5" - 6'8" 91 - 97 36 - 38

Geometry

Frame SizeX-SmallSmallSmallMediumMedium / LargeLargeX-LargeXX-Large
Mino Link Position Low / High Low / High Low / High Low / High Low / High Low / High Low / High Low / High
Wheel Size 27.5 27.5 29 29 29 29 29 29
Frame Reach (mm) 400.2 / 403.6 430.2 / 433.5 425 / 431.3 450 / 456.2 470 / 476.1 485 / 491 515 / 521 545 / 551
Effective Top Tube (mm) 516.2 / 515.6 550.5 / 549.9 553.8 / 552.7 584.1 / 583 607.4 / 606.2 626.9 / 606.2 661.8 / 660.4 696.6 / 695.1
Seat Tube (mm) 360 380 380 410 420 435 470 500
Seat Tube Angle 70.8° / 71.2° 70.8° / 71.1° 70.8° / 71.4° 70.8° / 71.4° 70.8° / 71.4° 70.8° / 71.4° 70.8° / 71.3° 70.8° / 71.3°
Effective Seat Tube Angle 78.6° / 78.9° 78.2° / 78.5° 78.6° / 79.2° 78.2° / 78.8° 77.5° / 78° 77.2° / 77.7° 76.6° / 77.1° 76° / 76.5°
Frame Stack (mm) 574.1 / 571.7 574.1 / 571.6 612.3 / 608.1 616.8 / 612.4 616.8 / 612.3 621.3 / 616.8 634.9 / 630.1 648.4 / 643.5
Head Tube Length (mm) 95 95 95 100 100 105 120 135
Head Angle 64.5° / 64.9° 64.5° / 64.8° 64.5° / 65.1° 64.5° / 65.1° 64.5° / 65.1° 64.5° / 65.1° 64.5° / 65° 64.5° / 65°
Fork Axle-to-Crown (mm) 533 533 561 561 561 561 561 561
Bottom Bracket Height (mm) 332 / 336.5 332 / 336.6 335 / 342.8 335 / 342.9 335 / 342.9 335 / 343 335 / 343.1 335 / 343.2
Bottom Bracket Drop (mm) 25 / 21 25 / 20.9 38 / 30.7 38 / 30.6 38 / 30.6 38 / 30.5 38 / 30.4 38 / 30.3
Chainstay Length (mm) 435 / 433.9 435 / 433.9 435 / 433.1 435 / 433.1 440 / 438.1 440 / 438.1 445 / 443.1 450 / 448.1
Wheelbase (mm) 1144.8 / 1144.1 1174.8 / 1174.1 1185.9 / 1184.9 1213 / 1212.1 1233.1 / 1232.1 1250.2 / 1249.2 1286.7 / 1285.7 1323.2 / 1322.2
Standover (m) 716.8 / 720.4 723.8 / 727.5 736.8 / 743.2 736.8 / 743.3 741.8 / 748.4 747.8 / 754.5 766.8 / 773.6 773.8 / 780.8
Offset (mm) 44 44 44 44 44 44 44 44
Trail (mm) 121.6 / 119.2 121.6 / 119.2 129.2 / 124.9 129.2 / 125 129.2 / 125.1 129.3 / 125.2 129.3 / 125.4 129.3

Specs

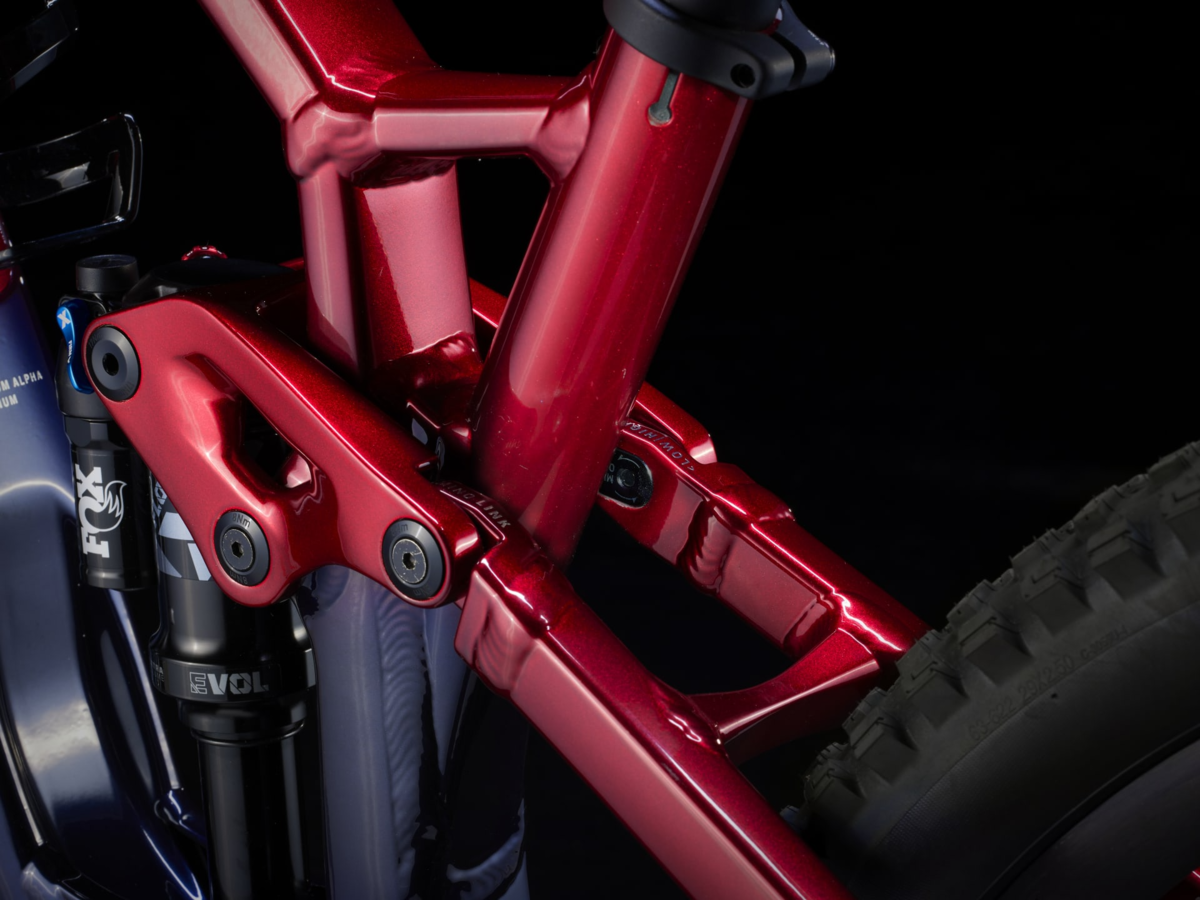

Frame Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Fork Size X-Small and Small (27.5): Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
Size Small - XX-Large: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel

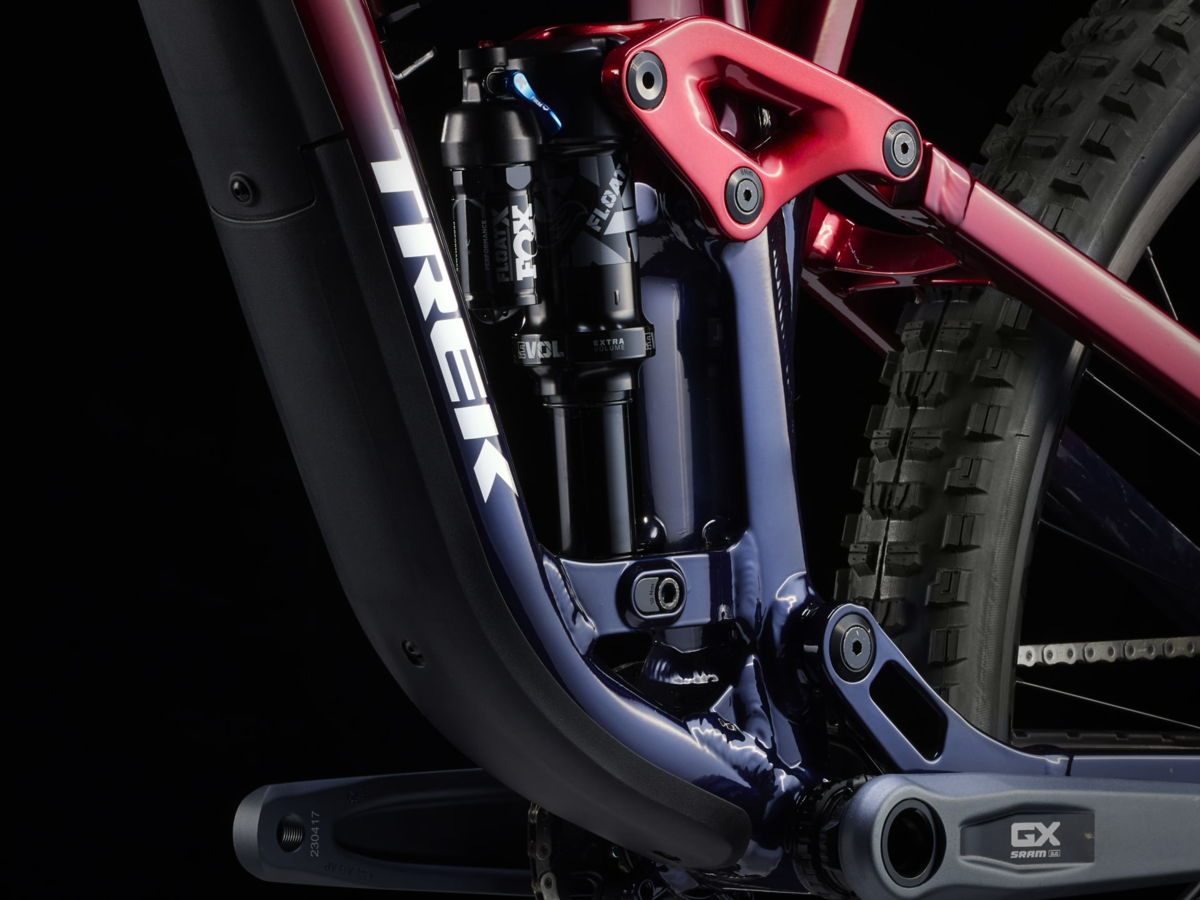

Rear Shock Fox Performance Float X, 2-position damper, 185mm x 55mm
Wheels Size X-small and Small Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''
Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
Size Small - XX- Large Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''

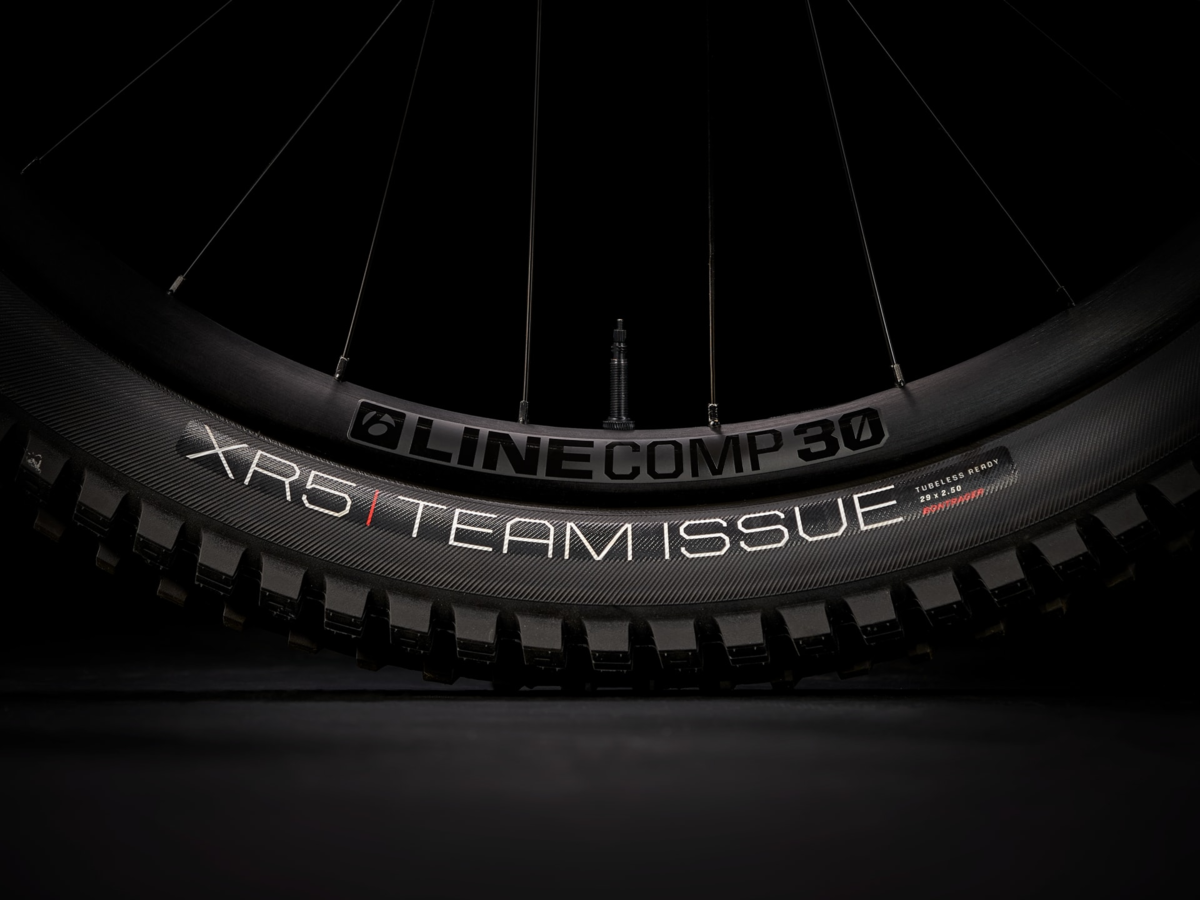

Tires Size X-Small and Small: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50''
Sizes Small - XX-Large: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
Brakes SRAM DB 8 4-piston hydraulic disc
Crankset SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
Bottom Bracket SRAM DUB MTB Wide, 73mm, BSA threaded
Shifters SRAM AXS POD
Cassette/Freewheel SRAM Eagle XS-1275, T-Type,10-52, 12 speed

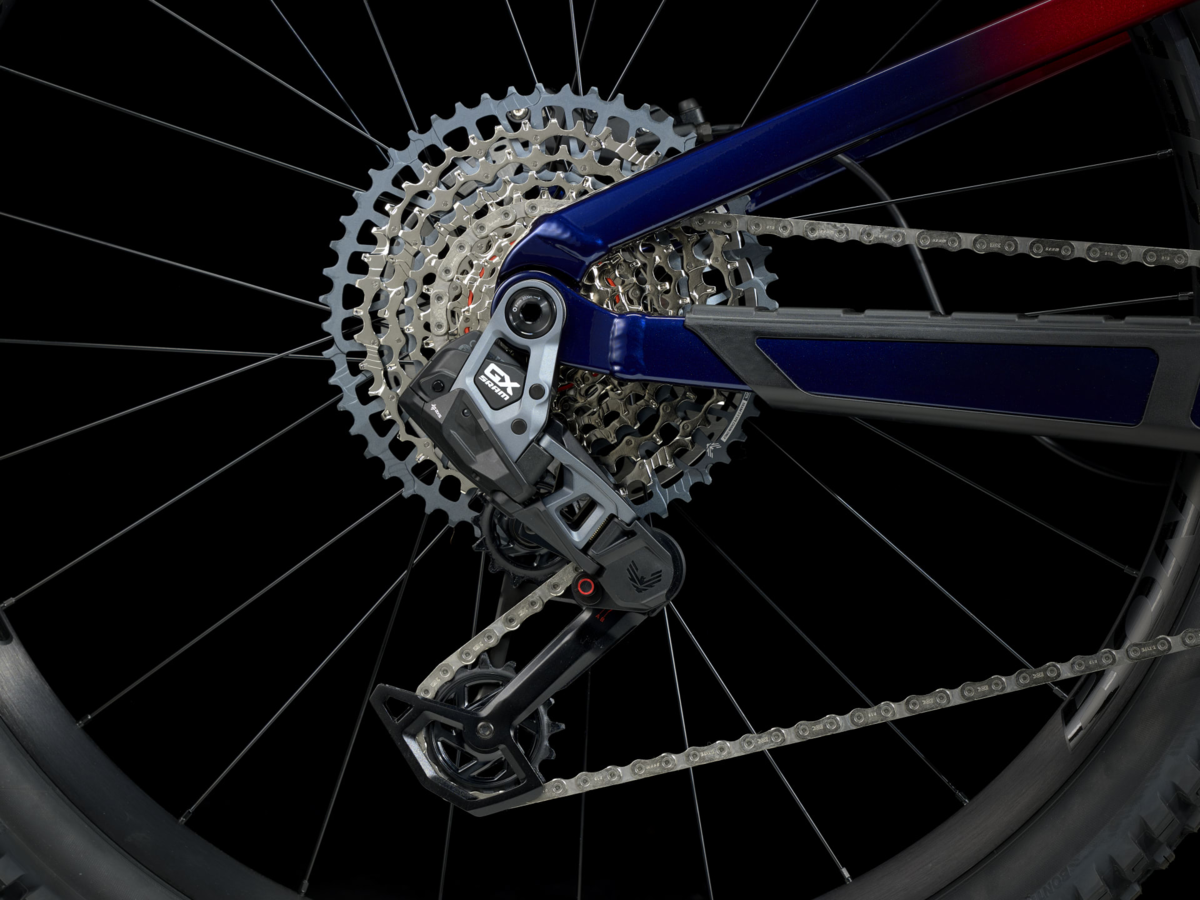

Rear Derailleur SRAM GX Eagle AXS, T-Type
Rotors SRAM CenterLine, 6-bolt, round edge, 180mm
SRAM CenterLine, 6-bolt, round edge, 200mm
Headset Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Handlebars Bontrager Line, alloy, 35mm, 27.5mm rise
Chain SRAM GX Eagle, T-Type, 12 speed
Tape/Grips Bontrager XR Trail Elite, nylon lock-on
Stem Bontrager Elite, 35mm, 0 degree
Seatpost Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm
Saddle Bontrager Verse P3, chromoly rails
Pedals Sold Separately
Accessories & Extras SRAM eTap battery pack (with charger)

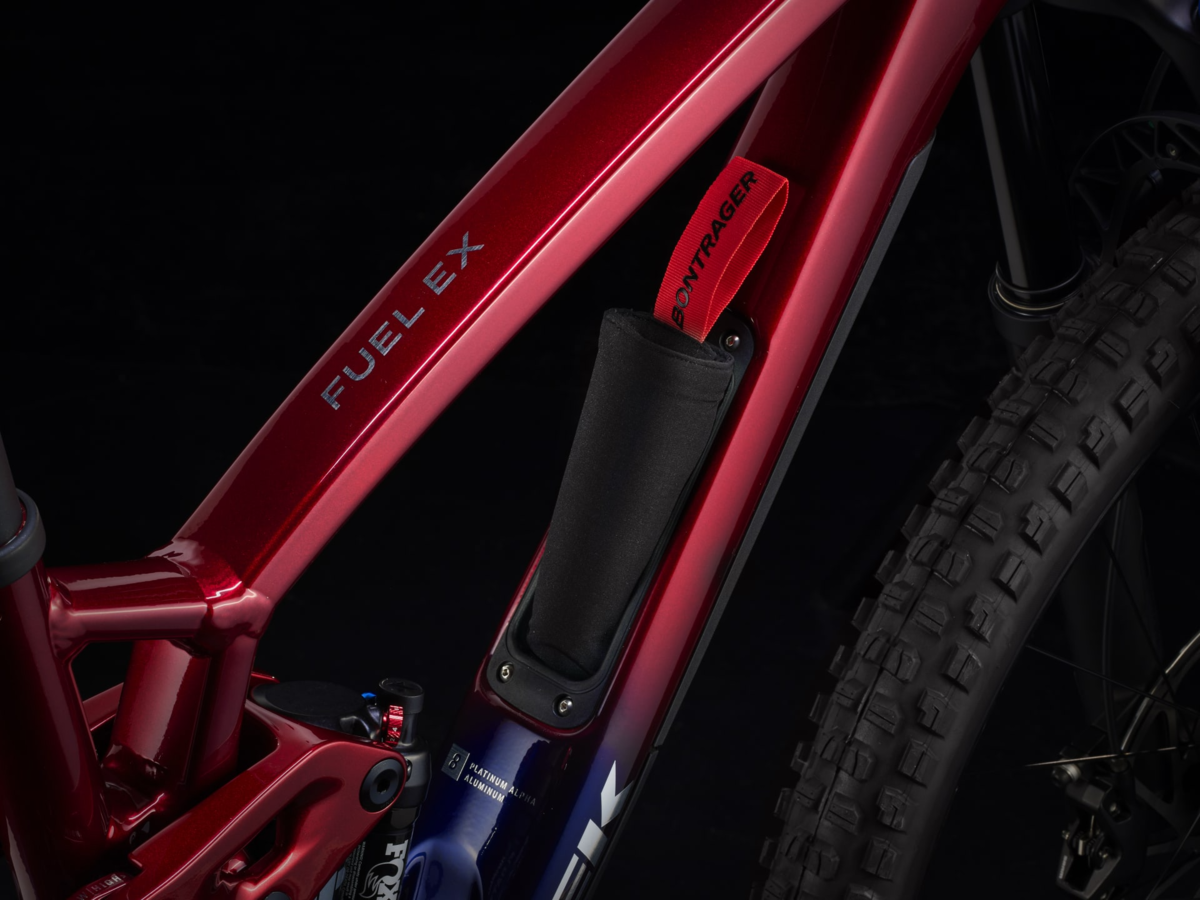

Bontrager BITS Internal Frame Storage Bag

* Subject to change without notice.
