Product Details

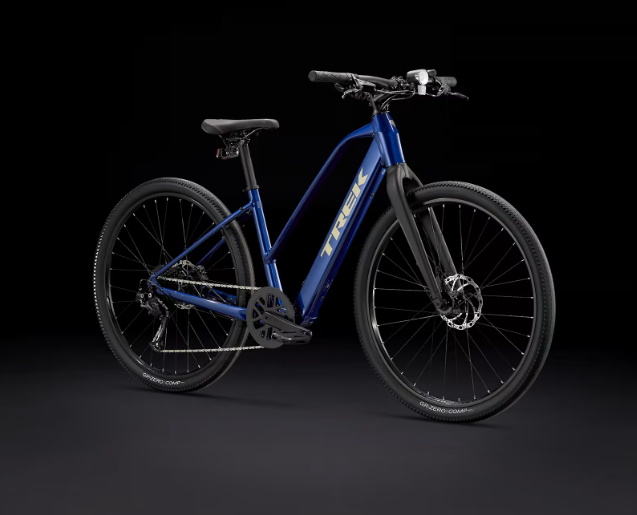

The Trek Dual Sport+ 2 Stagger is a versatile and lightweight electric hybrid bike designed for riders seeking adventure on both pavement and light trails. Its Alpha Gold Aluminum frame features a staggered design for easy mounting and dismounting. The bike is equipped with Trek's proprietary pedal-assist system, featuring a 250W rear hub motor delivering 40Nm of torque, assisting speeds up to 20 mph. The integrated 250Wh battery offers a range of up to 35 miles per charge, with an optional 250Wh Range Extender to double the distance. Stiff 650b wheels paired with wide 50c tires provide comfort and stability across varied terrains. A reliable 9-speed Shimano drivetrain ensures smooth shifting, while hydraulic disc brakes deliver confident stopping power. Additional features include integrated front and rear lights powered by the battery, and compatibility with fenders and rear racks for enhanced utility.
| Feature | Specification |
|---|---|
| Frame Material | Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing |
| Fork | DS+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
| Motor | Hyena hub drive motor, 40Nm, 250W |
| Battery | 250Wh, integrated in down tube |
| Display | LED display |
| Drivetrain | Shimano Altus M2010, 9-speed |
| Rear Derailleur | Shimano Altus M2000, long cage |
| Crank | ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length (sizes S, M); 175mm length (size L) |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC X9 |
| Pedals | Bontrager City pedals |
| Saddle | Bontrager Sport Women's |
| Seatpost | Bontrager alloy, 31.6mm, 12mm offset, 330mm length (sizes S, M); 400mm length (size L) |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 660mm width (sizes S, M); 690mm width (size L) |
| Grips | Bontrager Satellite |
| Stem | Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length (sizes S, M); 80mm length (size L) |
| Brakes | Tektro HD-M275 hydraulic disc, 160mm rotor |
| Wheels | Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve |
| Tires | Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50mm |
| Front Light | Integrated headlight powered by the battery |
| Rear Light | Integrated taillight powered by the battery |
| Fenders | Compatible (sold separately) |
| Rack | Compatible (sold separately) |
| Kickstand | Kickstand mount provided |
| Weight | Approx. 18.14 kg (40 lbs) |
| Weight Limit | Maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg) |
| Additional Features | Optional 250Wh Range Extender available to double the distance per charge |
The Dual Sport+ 2 Stagger is an excellent choice for riders seeking a reliable and efficient electric bike for daily commuting or recreational use, offering a blend of performance, technology, and practicality.
Specs
* Subject to change without notice.
