Product Details

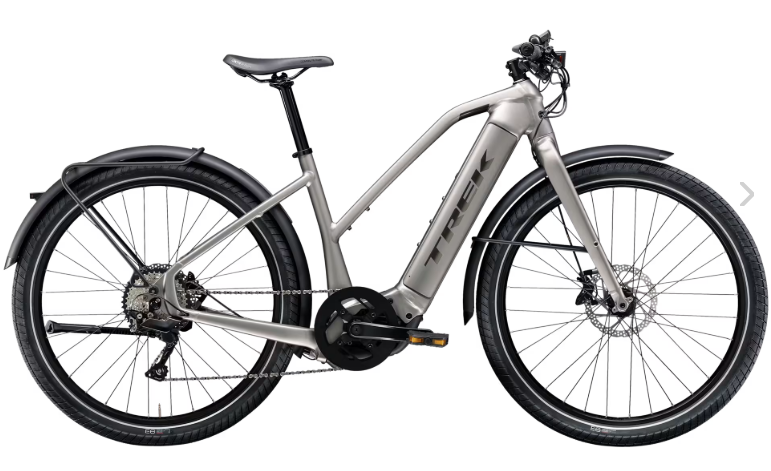

The Trek Allant+ 8S Stagger is a high-performance electric hybrid bike designed for riders seeking a swift and efficient commuting experience. Its sleek hydroformed aluminum frame features a stagger geometry for easy mounting and dismounting, fully encasing a powerful 625Wh Bosch PowerTube battery that provides extended range for longer rides. The Bosch Performance Speed drive system delivers robust pedal assistance, enabling speeds up to 28 mph, making it ideal for urban commuting and recreational cycling. The bike comes equipped with a SmartphoneHub controller that integrates seamlessly with the COBI.Bike app, transforming your smartphone into an on-board computer for navigation, music, and call management. Additional features include a 10-speed Shimano Deore drivetrain, powerful 4-piston hydraulic disc brakes, integrated lighting system, fenders, and a rear rack, making the Allant+ 8S Stagger a versatile and practical choice for daily commutes and weekend adventures alike. It's also compatible with Trek's Range Boost, allowing for the attachment of a secondary 500Wh battery to double the distance between charges.
| Feature | Specification |
|---|---|
| Frame Material | High-performance hydroformed aluminum, Removable Integrated Battery (RIB), Range Boost-compatible, internal cable routing, Motor Armor, post-mount disc, 135x5 mm QR |
| Fork | Allant+ rigid alloy fork, 1-1/8'' steel steerer, 100x15mm thru axle, post mount disc brake |
| Motor | Bosch Performance Speed, 85 Nm, supports speeds up to 28 mph (45 kph) |
| Battery | Bosch PowerTube 625Wh, integrated |
| Display | Bosch SmartphoneHub controller, compatible with COBI.Bike app |
| Drivetrain | Shimano Deore M4100, 10-speed |
| Rear Derailleur | Shimano Deore M5120, long cage |
| Crank | ProWheel alloy, 170mm (size S, M) / 175mm (size L) length |
| Chainring | ProWheel 46T narrow/wide alloy, with alloy guard |
| Cassette | Shimano Deore M4100, 11-42, 10-speed |
| Chain | KMC E10 |
| Pedals | Bontrager City pedals |
| Saddle | Bontrager Commuter Comp |
| Seatpost | Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 600mm (size S, M) / 660mm (size L) width |
| Grips | Bontrager Satellite Elite, alloy lock-on |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm (size S) / 70mm (size M) / 90mm (size L) length |
| Brakes | Shimano MT520 4-piston hydraulic disc, post-mount, 180mm rotor |
| Wheels | Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve |
| Tires | Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40'' |
| Front Light | Trek Lync headlight, 500 lumens |
| Rear Light | Trek Lync taillight, 50 lumens |
| Fenders | Trek custom aluminum |
| Rack | Allant integrated rear rack, aluminum |
| Kickstand | Adjustable length alloy kickstand |
| Weight | M - 25.58 kg / 56.4 lbs |
| Weight Limit | Maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg) |
| Additional Features | Compatible with Range Boost for extended range, COBI.Bike app integration for enhanced functionality |
Specs
* Subject to change without notice.
