Product Details

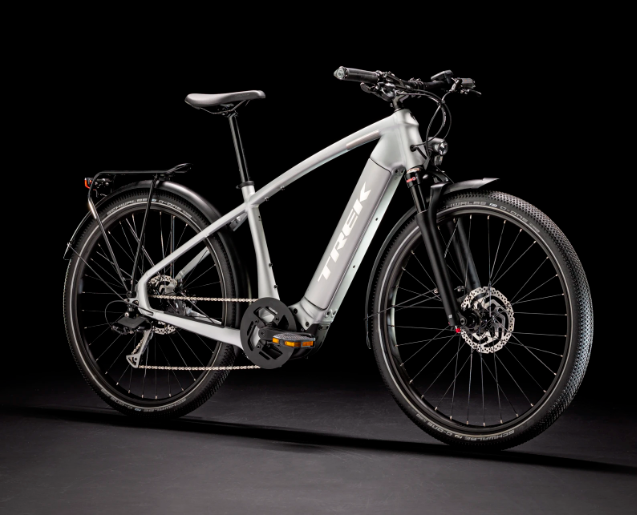

The Trek Allant+ 7S is a high-performance electric hybrid bike designed for riders seeking a swift and efficient commuting experience. Its sleek hydroformed aluminum frame fully encases a long-life 500Wh Bosch PowerTube battery, providing extended range for longer rides. The ultra-powerful Bosch Performance Speed drive system delivers robust pedal assistance, enabling speeds up to 28 mph, making it ideal for urban commuting and recreational cycling. The bike features a Bosch Purion controller that lets you monitor speed, distance, and battery range with ease. Equipped with a 9-speed Shimano Alivio drivetrain, powerful 4-piston hydraulic disc brakes, and tubeless-ready wheels, the Allant+ 7S ensures a smooth and reliable ride. Additional features include integrated lighting, fenders, and compatibility with Trek's Range Boost, allowing for the attachment of a secondary 500Wh battery to double the distance between charges.
| Feature | Specification |
|---|---|
| Frame Material | High-performance hydroformed aluminum, Removable Integrated Battery (RIB), Range Boost-compatible, internal cable routing, Motor Armor, post-mount disc, 135x5 mm QR |
| Fork | SR Suntour Mobie 25, coil spring, lockout, rebound adjust, tapered alloy steerer, 15x100mm thru axle, 45mm travel |
| Motor | Bosch Performance Speed, 85 Nm, supports speeds up to 28 mph (45 kph) |
| Battery | Bosch PowerTube 500Wh, integrated |
| Display | Bosch Purion controller |
| Drivetrain | Shimano Alivio M3100, 9-speed |
| Rear Derailleur | Shimano Alivio T4000, long cage |
| Crank | ProWheel alloy, 170mm (size M) / 175mm (sizes L, XL) length |
| Chainring | ProWheel 46T narrow/wide alloy, with alloy guard |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC X9 |
| Pedals | Bontrager City pedals |
| Saddle | Bontrager Commuter Comp |
| Seatpost | Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 600mm (size M) / 660mm (sizes L, XL) width |
| Grips | Bontrager Satellite Elite, alloy lock-on |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm (size M) / 90mm (size L) / 100mm (size XL) length |
| Brakes | Shimano MT520 4-piston hydraulic disc, post-mount, 180mm rotor |
| Wheels | Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve |
| Tires | Schwalbe G-One, Performance, RaceGuard, with reflective strip, 27.5x2.40" |
| Front Light | Herrmans MR8, 180 lumen, 60 lux, LED, headlight |
| Rear Light | AXA Blueline taillight |
| Fenders | Eurofender Duo |
| Rack | Racktime Lightit rear rack, aluminum |
| Kickstand | Adjustable length alloy kickstand |
| Weight | M - 24.50 kg / 54.01 lbs |
| Weight Limit | Maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg) |
| Additional Features | Compatible with Range Boost for extended range |
Specs
* Subject to change without notice.
