Product Details
Meet the next-level cargo solution.

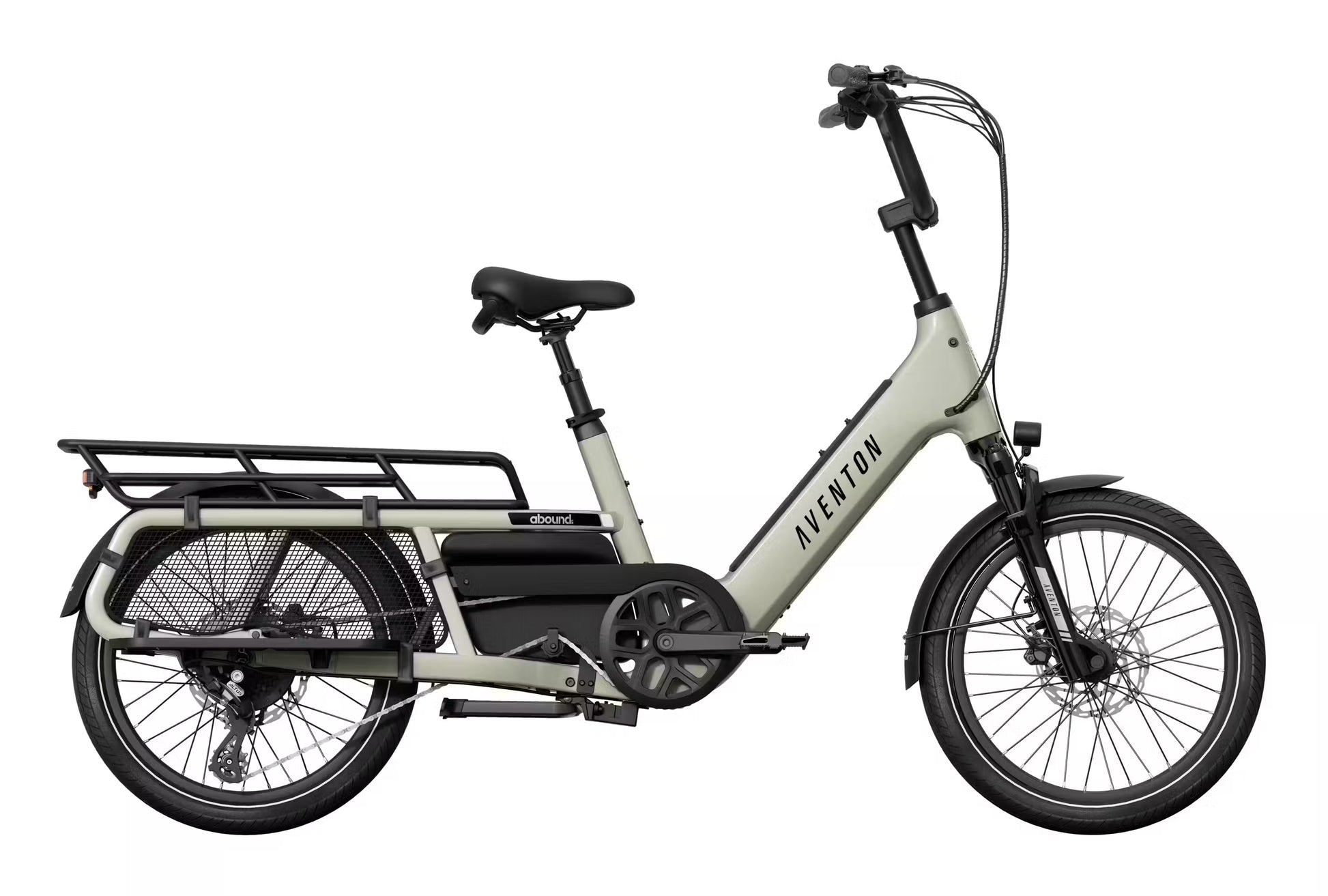

The Abound LR is designed for riders who ditch the car more often than not — whether it’s grocery runs, kid drop-offs, beach gear, or full-on cargo missions. With a long rear rack and big-capacity load rating, this bike is made for business and built for fun.
Why you’ll choose it
-
Powerful haul motor: 750 W hub motor (peak ~1188 W) ensures you’re not struggling with load.
-
Extended range: Removable 36 V / 20 Ah (≈733 Wh) battery gives up to 60 miles of real-world range.
-
Massive payload capacity: 440 lb total weight limit including rider and cargo. Rear rack capable ~143 lb.
-
Smart security & connectivity: Built-in ACU with 4G/GPS, geofencing, motion alerts and remote access give you peace of mind.
-
Comfort & utility-optimized: Suspension fork (≈50 mm travel), suspension seat-post, wide 20″×3.0″ tires, full fenders, foot-boards and accessories make it comfortable and versatile.
-
Built tough: Gravity-cast aluminum frame, hydraulic disc brakes (203 mm rear rotor, 180 mm front), torque-sensor assist.
Perfect for you if you
-
carry kids, groceries, gear, or heavy loads in town
-
want a real e-bike solution that replaces car trips
-
value smart features, security & rugged build more than full speed race specs
-
ride a bit heavier load or want more stability than typical commuter e-bikes
Fit & Frame
-
One-size cargo frame, step-through style; rider height range ~4′11″ to 6′3″.
-
Bike weight approx 88 lbs.
In the Box
-
Bike with integrated long rear rack + footboards
-
Charger & tool kit
-
Quick-start guide
-
2-Year warranty on frame, motor, battery (standard for Aventon)
-
First year of ACU connectivity included
Care & Usage Tips
-
Since it’s built for load, keep tire pressure high to compensate payload.
-
Charge regularly; big battery but heavy loads shorten range.
-
Use the smart app to tune PAS modes (Ride-Tune feature) for your ride style.
-
Store indoors if possible – heavy bikes benefit from stable storage.
-
Use the footboards and rack responsibly — keep weight balanced front & rear.
Specs at a glance
| Feature | Specification |
|---|---|
| Motor | 750 W Rear Hub (1188 W peak) |
| Battery | 36 V 20 Ah (~733 Wh) Removable |
| Range | Up to ~60 miles |
| Payload Capacity | 440 lb |
| Brakes | Hydraulic Disc (180 mm front / 203 mm rear) |
| Tires | 20″ × 3.0″ Innova Urban |
| Weight | ~88 lbs |
| Connectivity | 4G/GPS via ACU unit |
| Certification | UL2271 / UL2849 |
Don’t wait — go big on utility without losing the ride feel.
This is not just a cargo e-bike—it’s a serious lifestyle machine. So load up and roll out.
Sizing
Geometry
Specs
Motor 750W·Peak 1188W; Battery 36V 20Ah (~733Wh); Range Up to ~60 miles; Assist Type: Torque Sensor + Throttle; Brakes: Hydraulic Disc (180mm front / 203mm rear); Payload Capacity 440 lb; Connectivity: 4G/GPS via ACU. Geometry: Step-through cargo frame; wheelbase & rack built for load; rider height 4′11″-6′3″.
* Subject to change without notice.
