Product Details

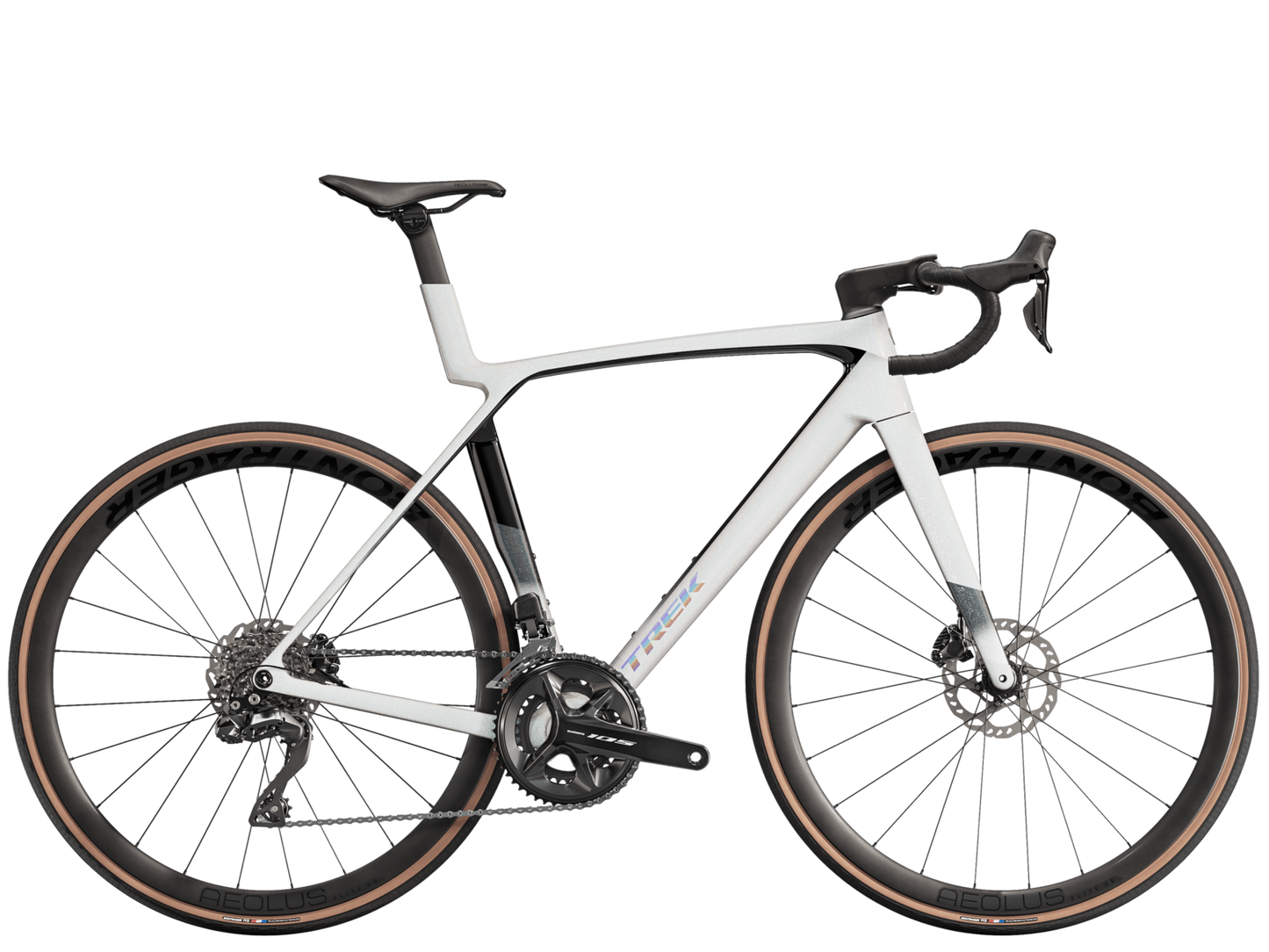

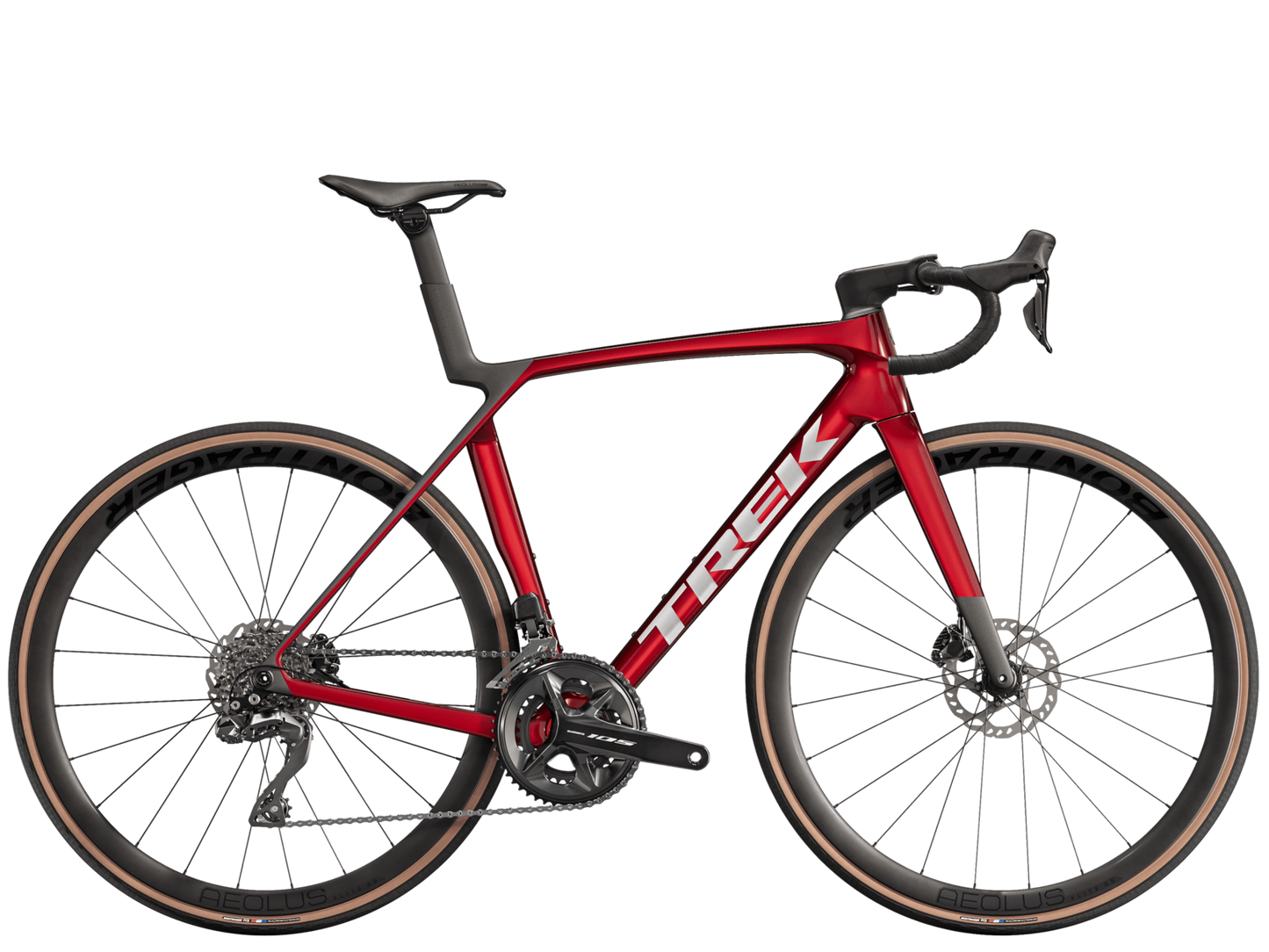

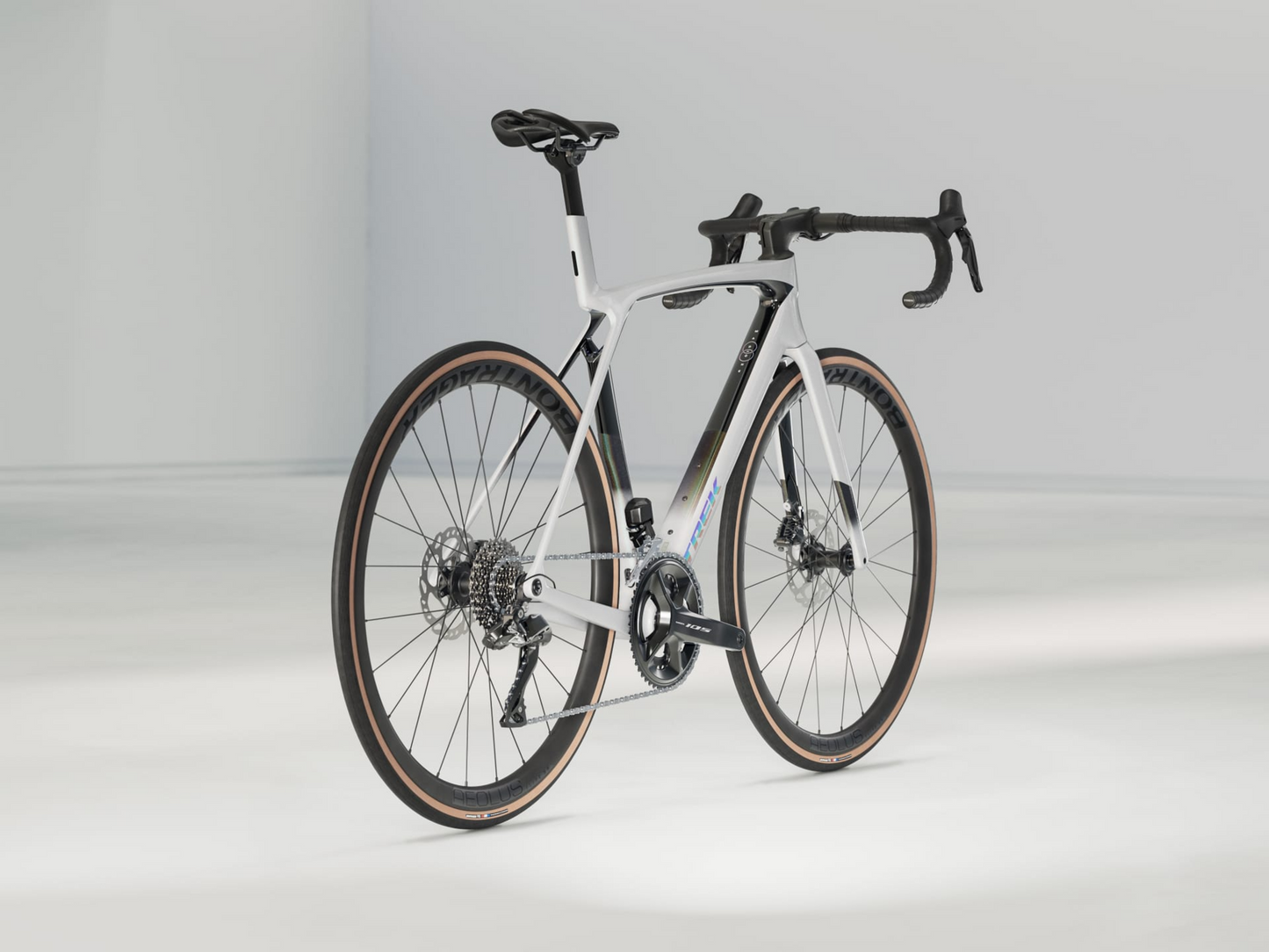

Madone SL 6 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. It's built to race with geometry that keeps you comfortable on the climbs and perched for the attack. A Shimano 105 Di2 electronic groupset keeps the price down without sacrificing lightning-fast electronic shifting. Plus, it's topped off with carbon wheels for extra lightweight performance.
- Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
- A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
- Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents

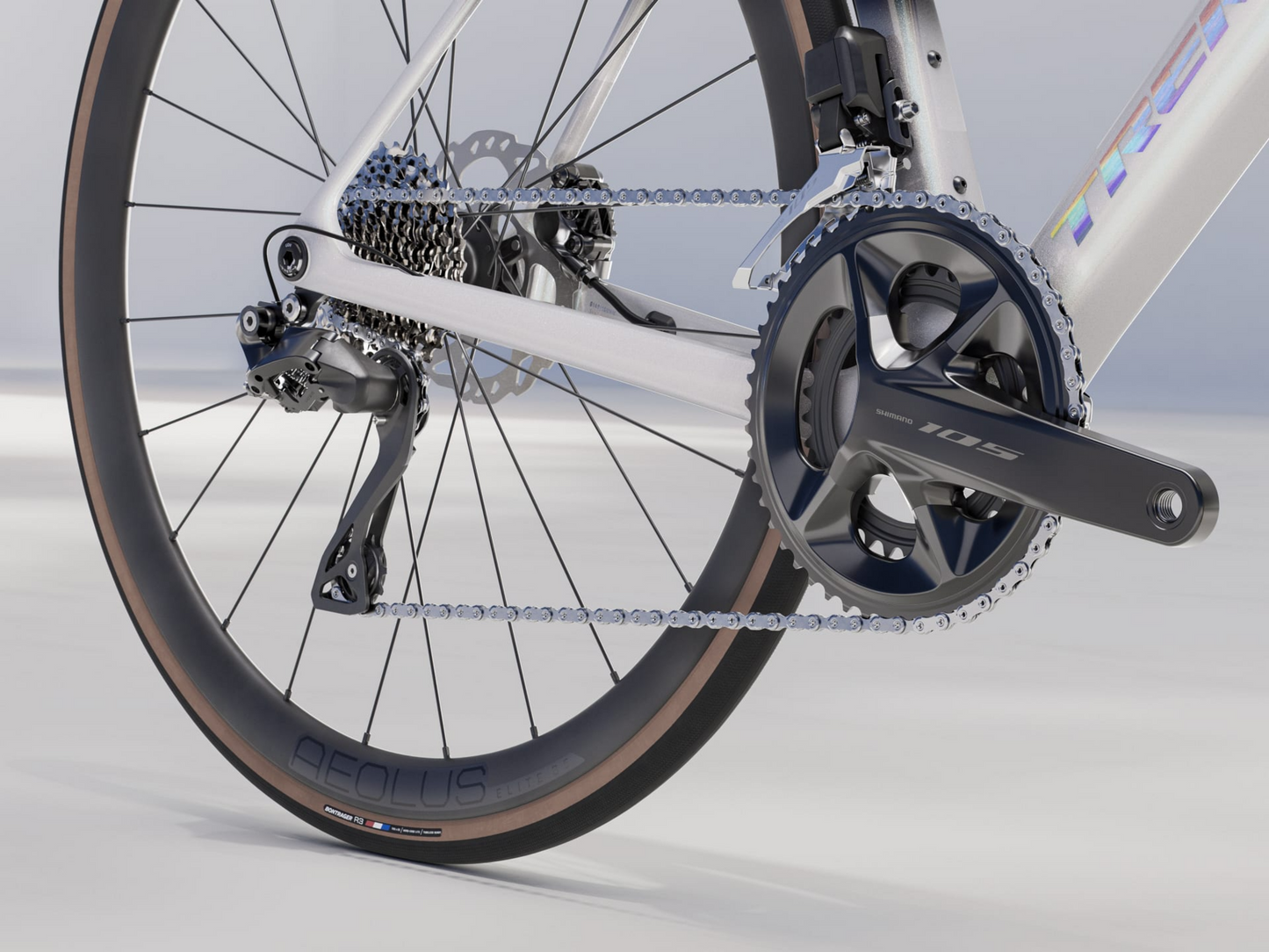

- You get lightning-fast shifts that stay crisp and clean thanks to Shimano's Di2 tech trickling down to their 105 groupset

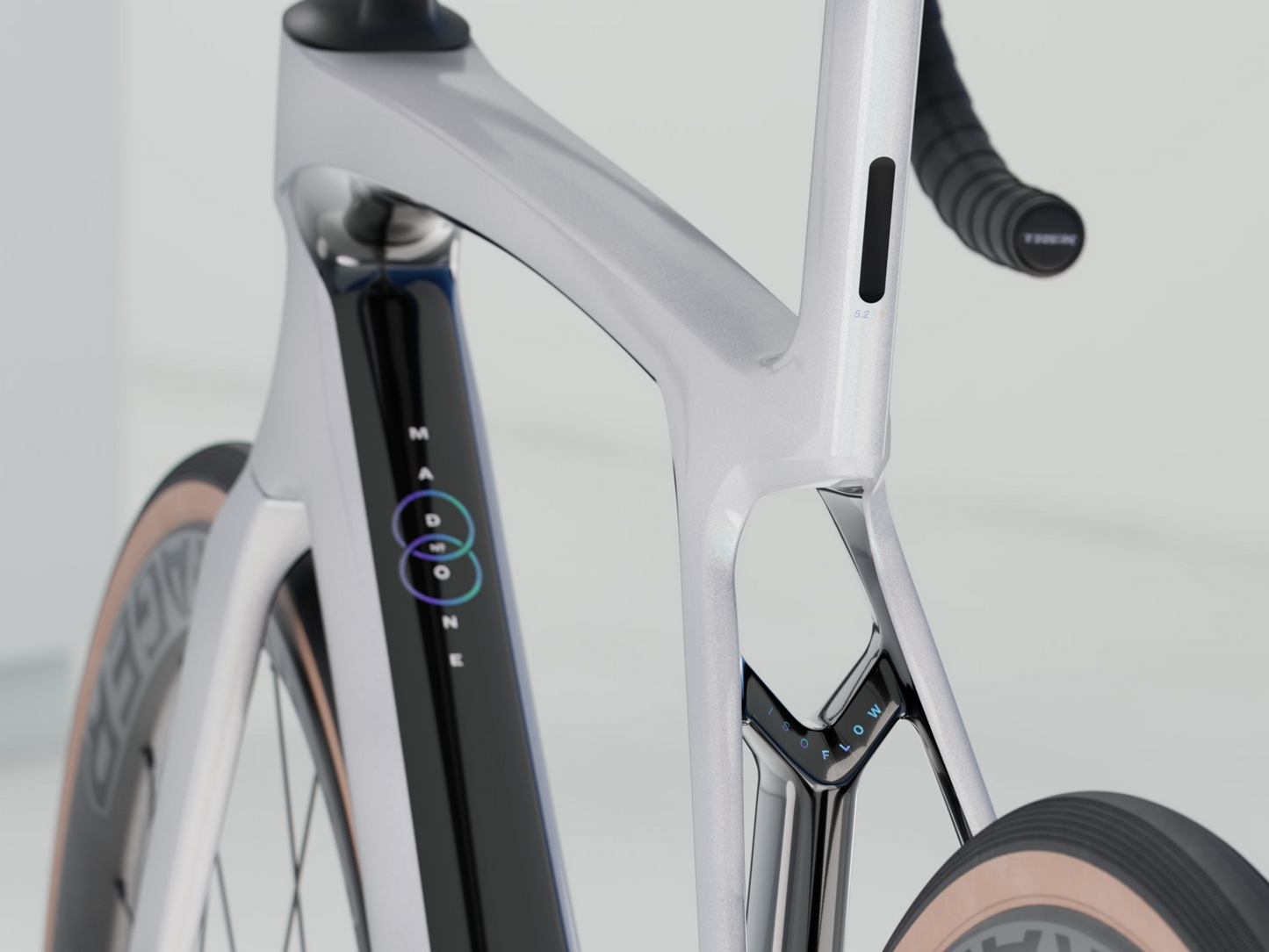

- Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics
- This bike comes set up tubeless — a first in Trek performance road history
Sizing
Geometry
Specs
| Hubs | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
|---|---|
| Rims | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle |
| Stem | Trek RCS Pro, -7 degree, 100mm length |
| Chain | Shimano SLX M7100, 12 speed |
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
| Tires | Bontrager R3 Hard-Case Lite, aramid bead, 170 tpi, 700x28mm |
| Rotors | Shimano RT70, centerlock, 160mm |
| Saddle | Bontrager Aeolus Comp, steel rails, 145mm width |
| Wheels | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle / |
| Crankset | Shimano 105 R7100, 50/34, 172.5mm length |
| Shifters | Shimano 105 R7170 Di2, 12 speed // Shimano 105 R7170 Di2, 12 speed |

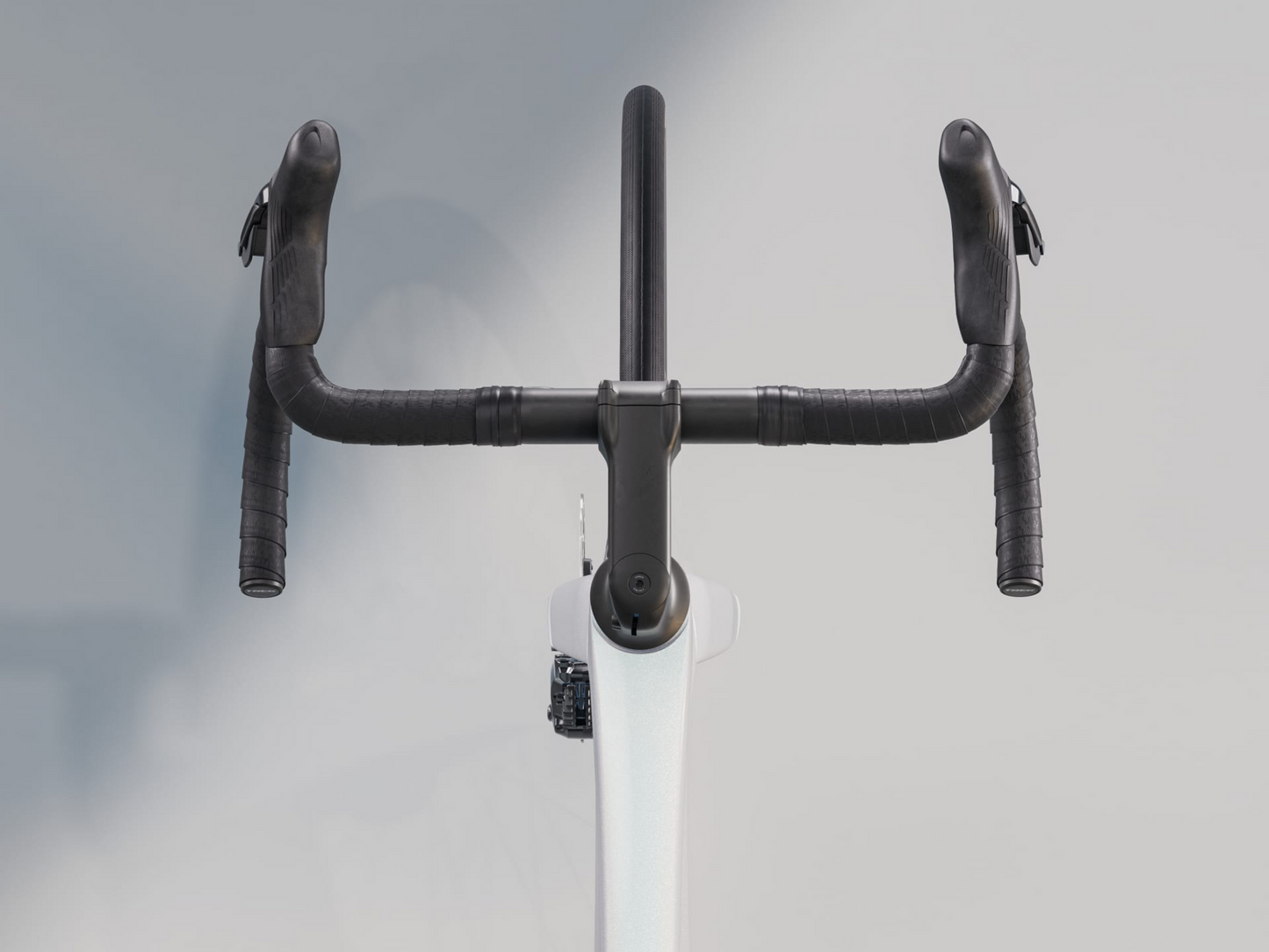

| Handlebars | Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Front Derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
| Cassette/Freewheel | Shimano 105 7101, 11-34, 12 speed |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Seatpost | Size: XS, S, M Madone aero carbon seatpost, 0mm offset, short length Size: ML, L, XL Madone aero carbon seatpost, 0mm offset, long length |
| Tape/Grips | Trek EcoTack, black |
| Rear Derailleur | Shimano R7150 Di2, 36T max cog |
* Subject to change without notice.
