Product Details
Category: City Electric Bike
Description:

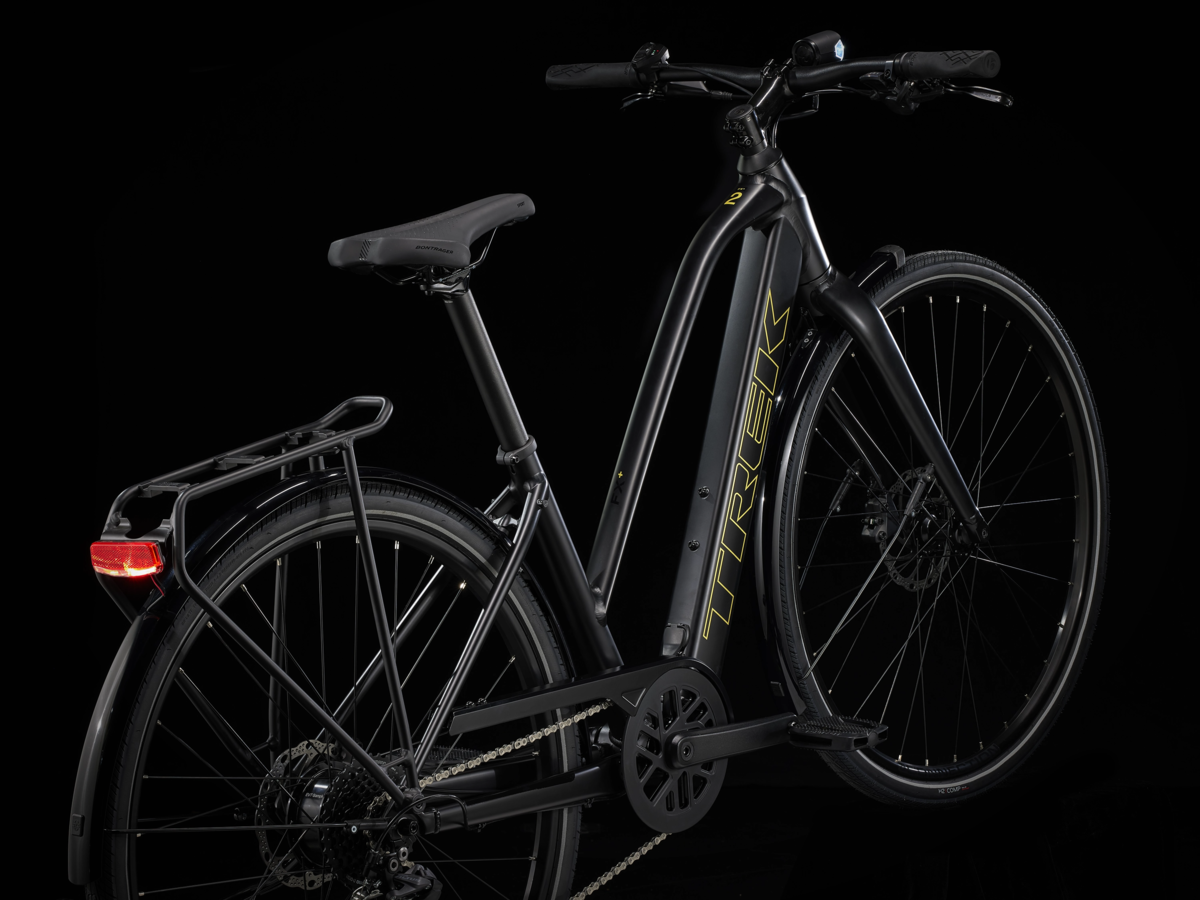

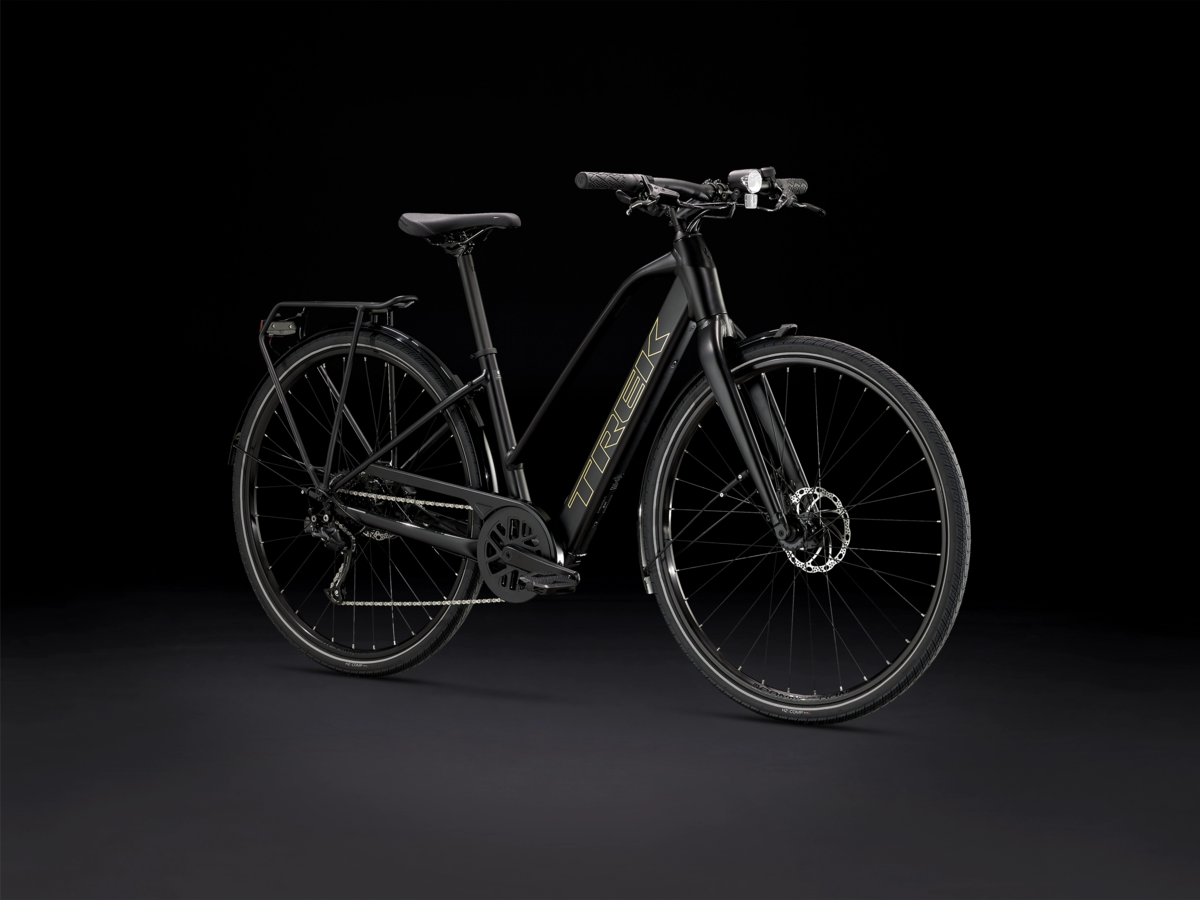

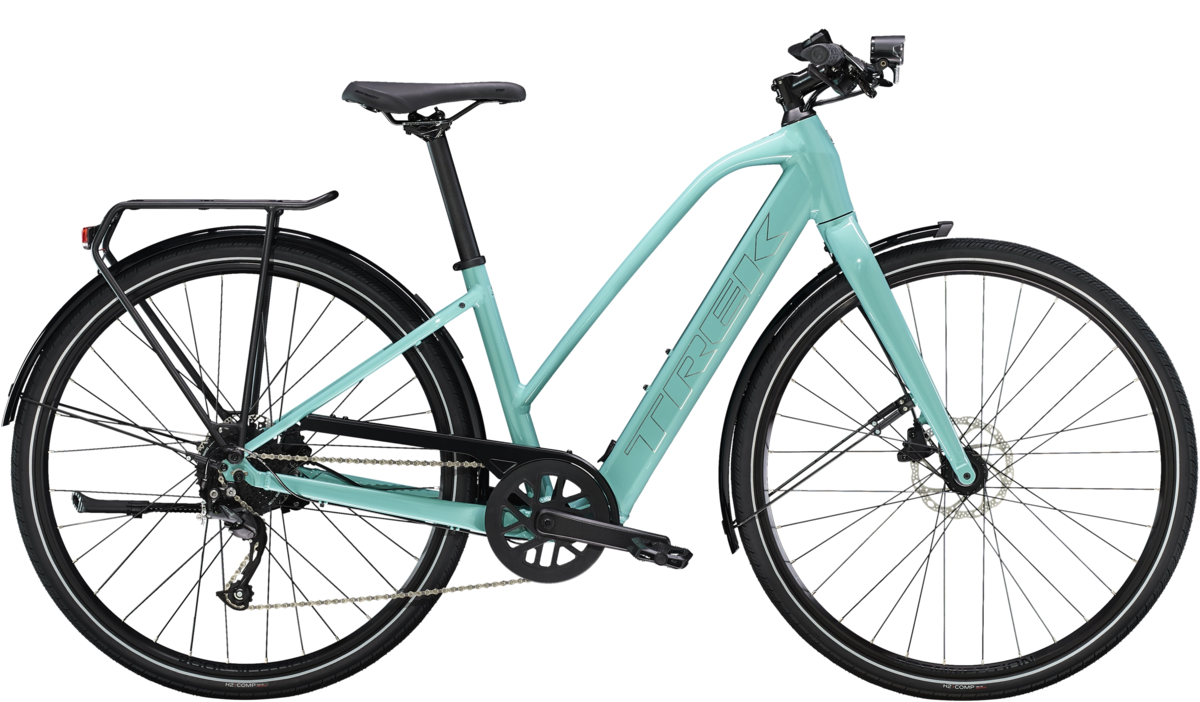

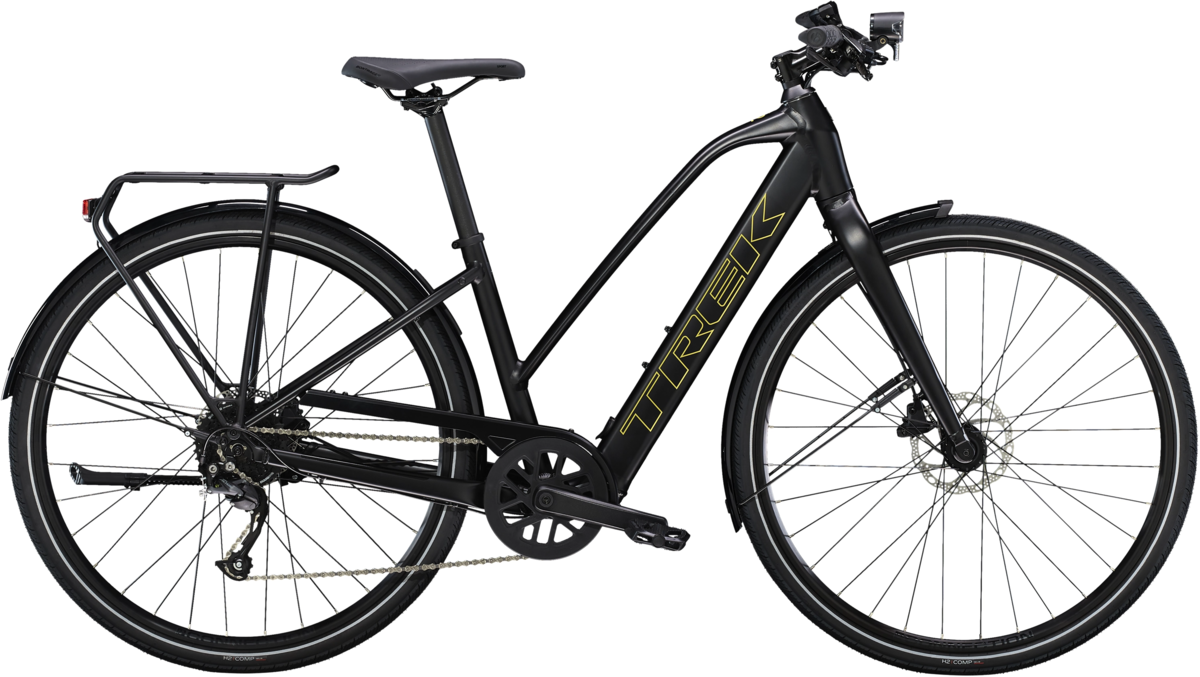

The FX+ 2 Stagger is a lightweight city electric bike designed to make your everyday rides faster and more enjoyable. With an intuitive pedal assist system, this e-bike makes exploring the city exciting and cruising up hills effortless. Equipped with useful accessories like a rear rack and fenders, the FX+ 2 Stagger adds extra versatility for commuting, errands, and joyrides.
It's right for you if…
You want a lightweight, easy-to-use city e-bike that offers a reliable boost for daily errands, commutes, and fun rides around town. The FX+ 2 Stagger provides everything you need for city riding with an added electric boost.
The tech you get
The FX+ 2 Stagger comes with a lightweight aluminum frame and a stagger design for easy mounting and dismounting. It features Trek's proprietary pedal assist system with a 250W hub motor that delivers 40Nm of torque, assisting up to 25 km/h. A 250Wh battery offers a range of up to 55 kilometers per charge. The bike also includes fast 700c wheels, stable 40c tires with reflective sidewalls, a 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, a MIK-compatible rear rack, fenders, and a kickstand for added convenience.
The final word
The FX+ 2 Stagger brings all the versatility of the FX series with an electric boost that helps you go farther and do more. With built-in accessories like a rack and fenders, it's perfect for city commuting and errands. Plus, the lightweight design makes it easy to maneuver and carry.
Why you'll love it:
- It’s Trek’s lightest city e-bike, making it easy to park and carry up stairs.

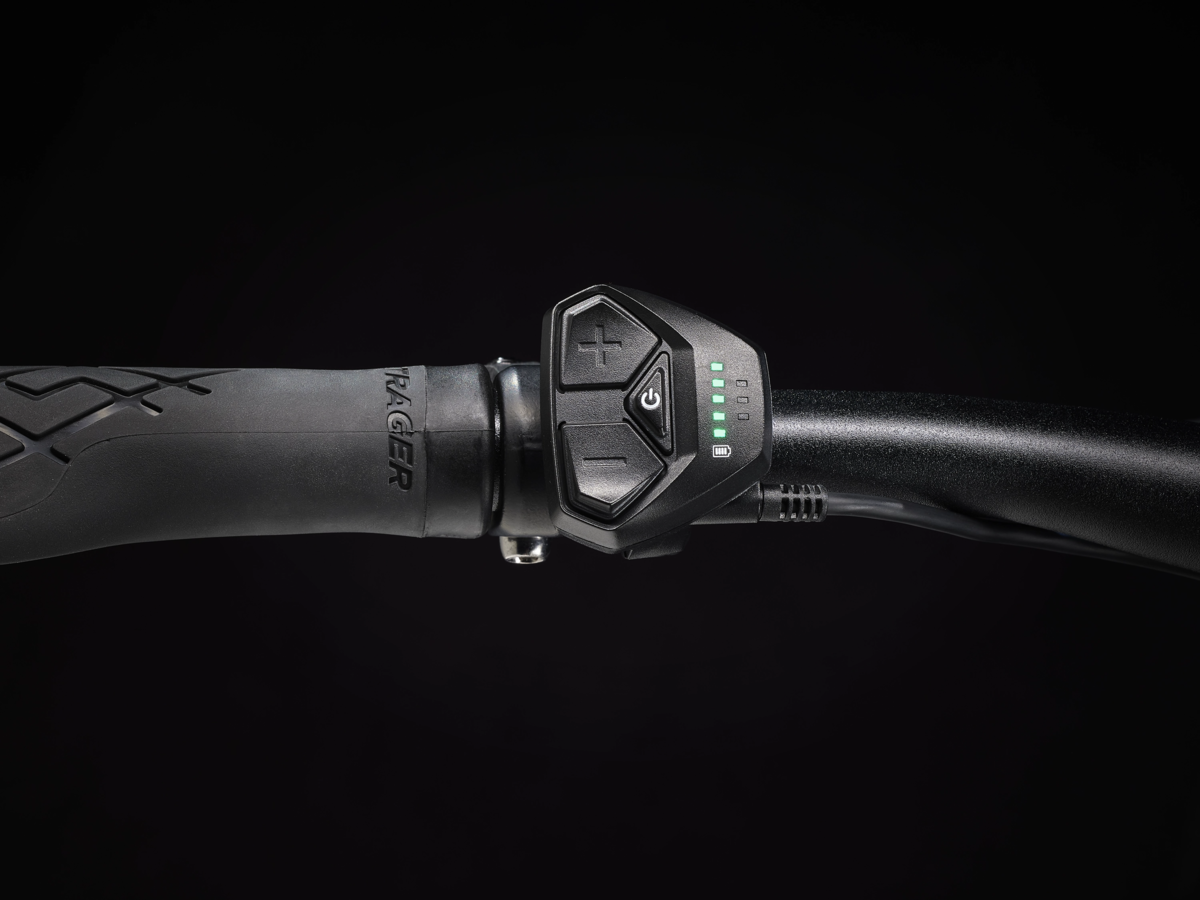

- The pedal assist system’s hub motor provides a natural riding feel with a simple LED remote for assist settings.
- Comes equipped with fenders, lights, and a MIK-compatible rear rack for added utility.
- Double your range with a 250Wh plug-and-play Range Extender battery that attaches to your frame using water bottle mounts.
Specifications:
| Category | City Electric Bike |
|---|---|
| Motor | 250W hub motor, 40Nm |
| Battery Capacity | 250Wh |
| Battery Range | Up to 35 miles |
| Wheel Size | 700c |
| Tire Size | 40c (with reflective sidewalls) |
| Drivetrain | 9-speed Shimano drivetrain |
| Brakes | Hydraulic disc brakes |

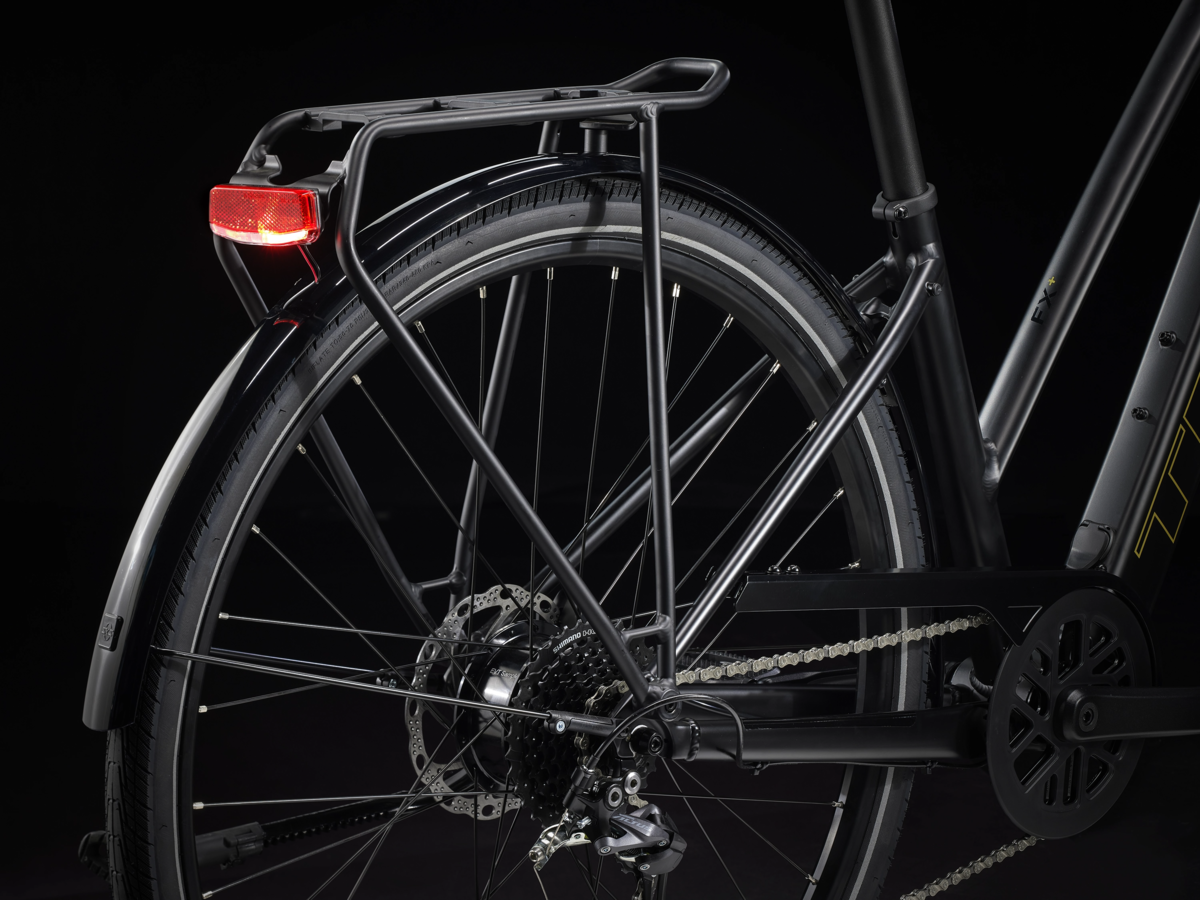

| Rear Rack | MIK-compatible |
| Bike Weight | 40 lbs |
Sizing
Geometry
Specs
| Frame | Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing |
|---|---|
| Fork | FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
| Rims | Bontrager Connection, alloy, double-wall, 32-hole, schrader valve |
| Hubs |
Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR Rear: G2 hub drive |
| Spokes | 14g stainless steel |
| Tires | Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c |
| Bottom Bracket | Torque sensor, T47 threaded, 122.5mm spindle |

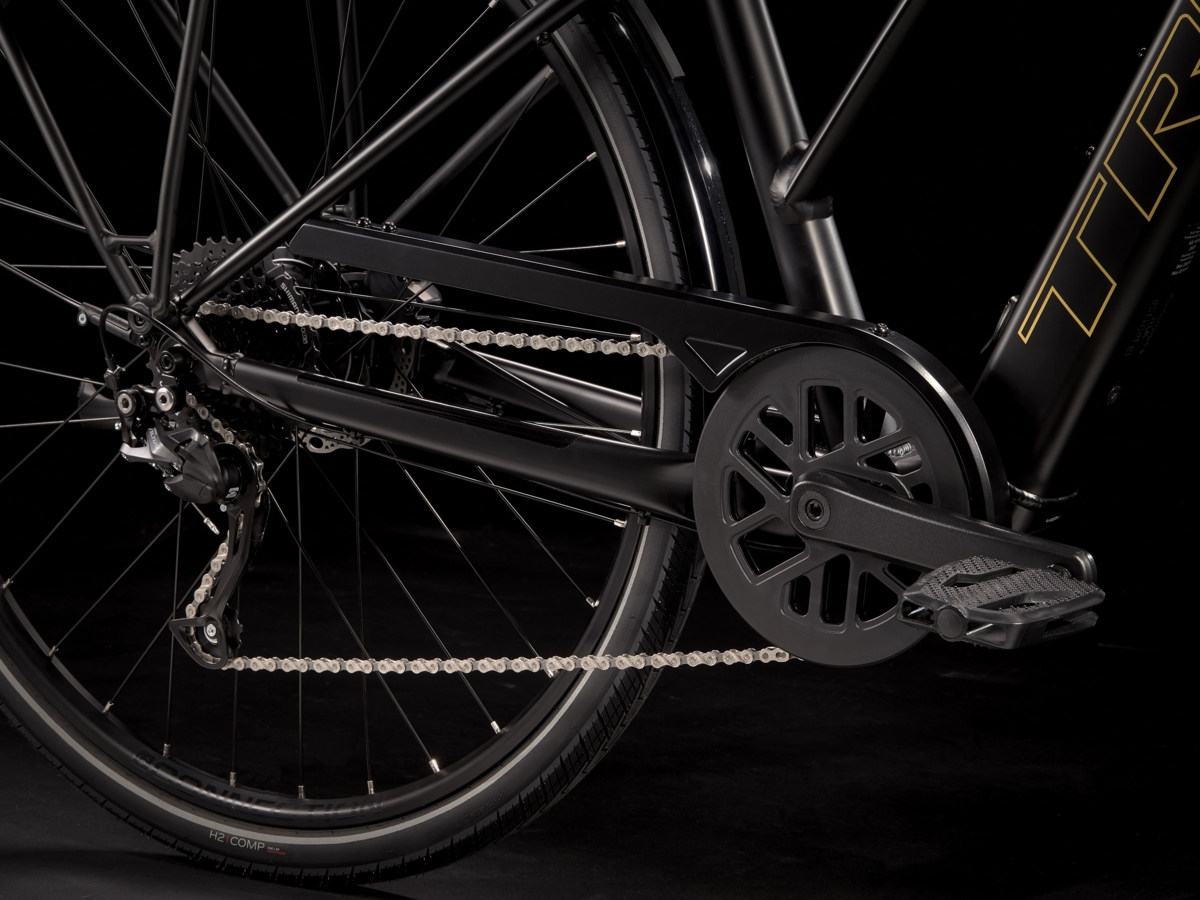

| Crankset | ProWheel Pro alloy, 42T narrow-wide steel ring |
| Shifters | Shimano Altus M2010, 9 speed |
| Rear Derailleur | Shimano Altus M2000, long cage |

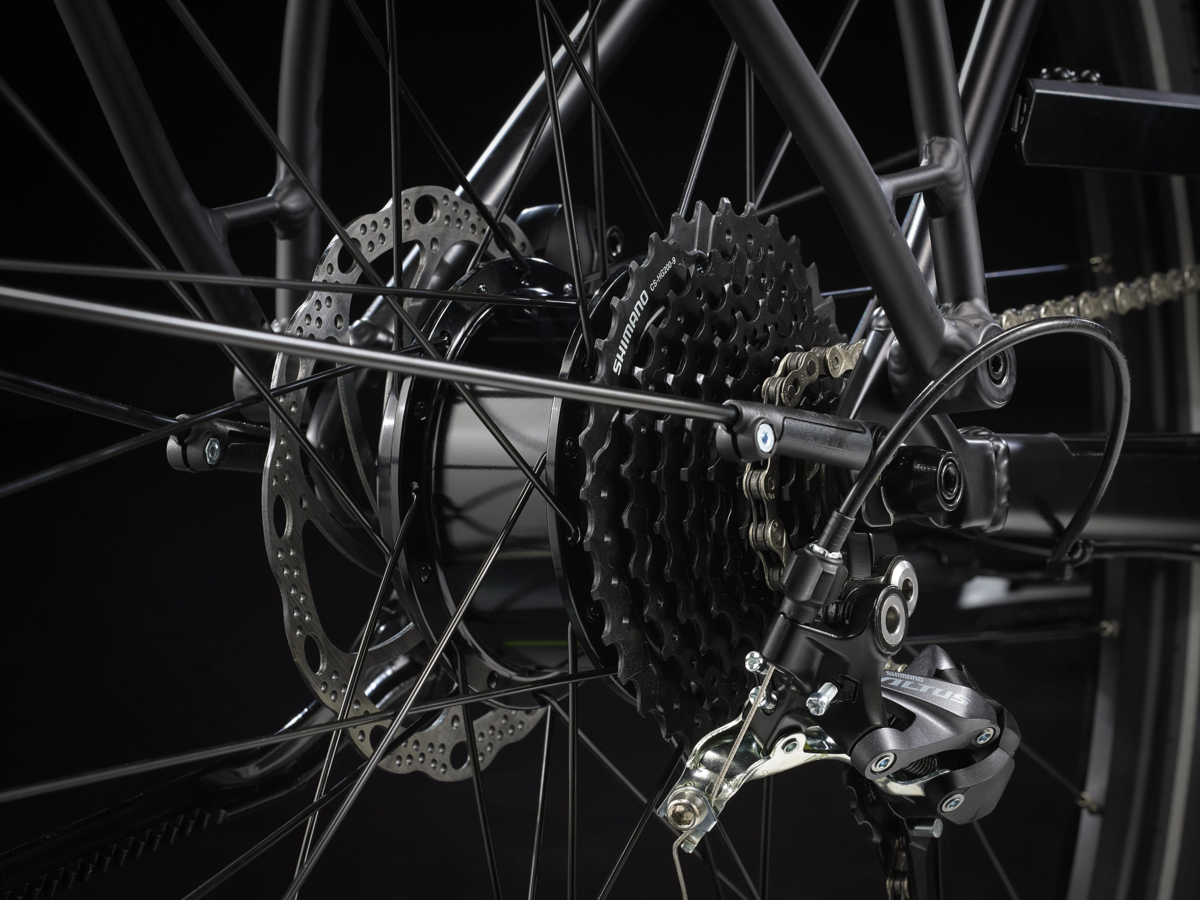

| Cassette/Freewheel | Shimano HG200, 11-36, 9 speed |
| Chain | KMC X9 |
| Brakes | Shimano hydraulic disc, MT200 lever, UR300 caliper |
| Rotors | Shimano RT26, 6-bolt,160mm |

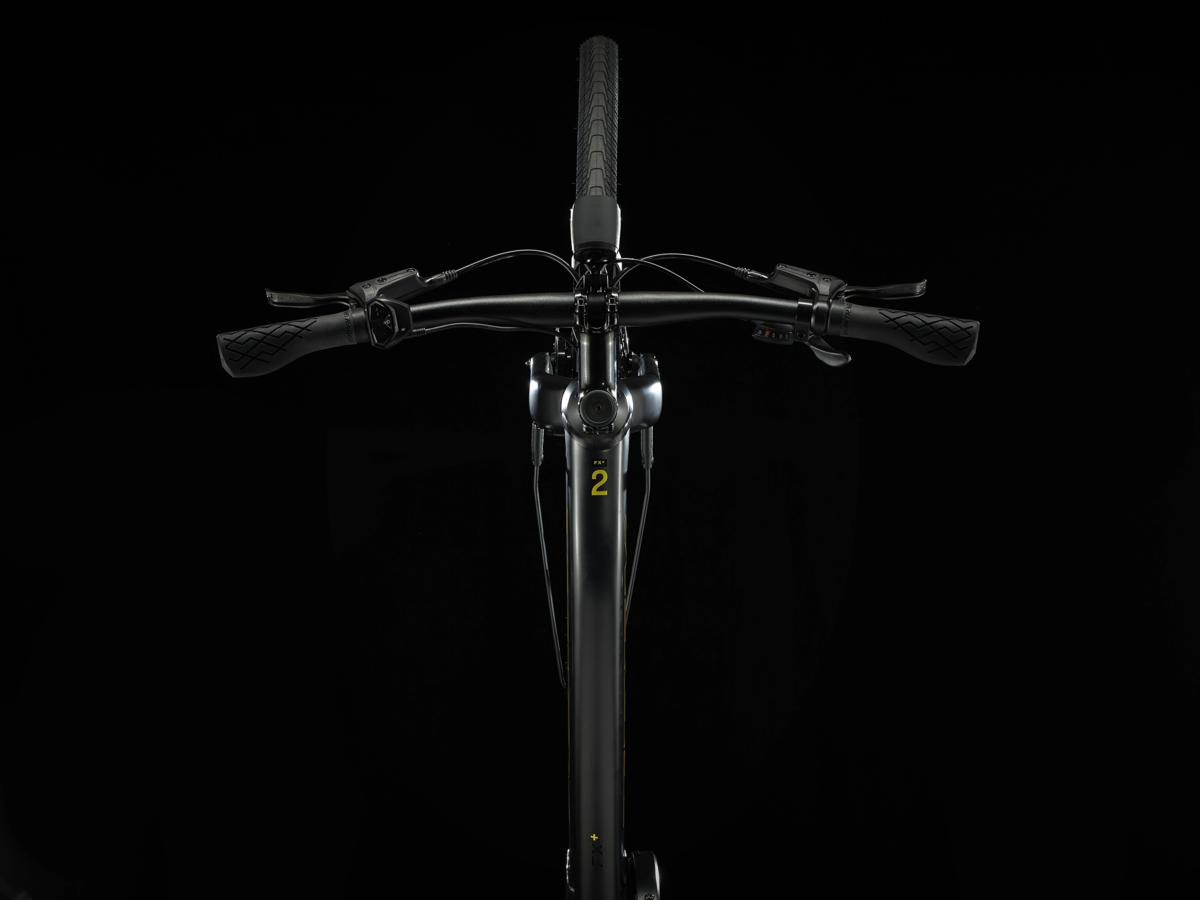

| Handlebars | Bontrager alloy, 31.8mm, 15mm rise |
| Tape/Grips | Bontrager XR Endurance Comp, lock-on |
| Stem | Bontrager alloy, 31.8mm, Blendr compatible, 7 degree |
| Seatpost | Bontrager alloy, 31.6mm, 12mm offset |
| Saddle | Bontrager Sport Women's |
| Pedals | Bontrager City pedals |
| Accessories & Extras |
Fender: SKS plastic Cargo Rack: MIK Compatible alloy rear rack Light: Herrmans MR4-E Frontlight, 40LUX, 120 lumen LED. 6-12 VDC. Without Bracket. With 50mm Power-in cable. Without Power-out cable. With Reflector (white) // Spanninga Solo Kickstand: Rear mount, alloy |
| Battery | 250Wh |
| Controller/Display | Bluetooth display |

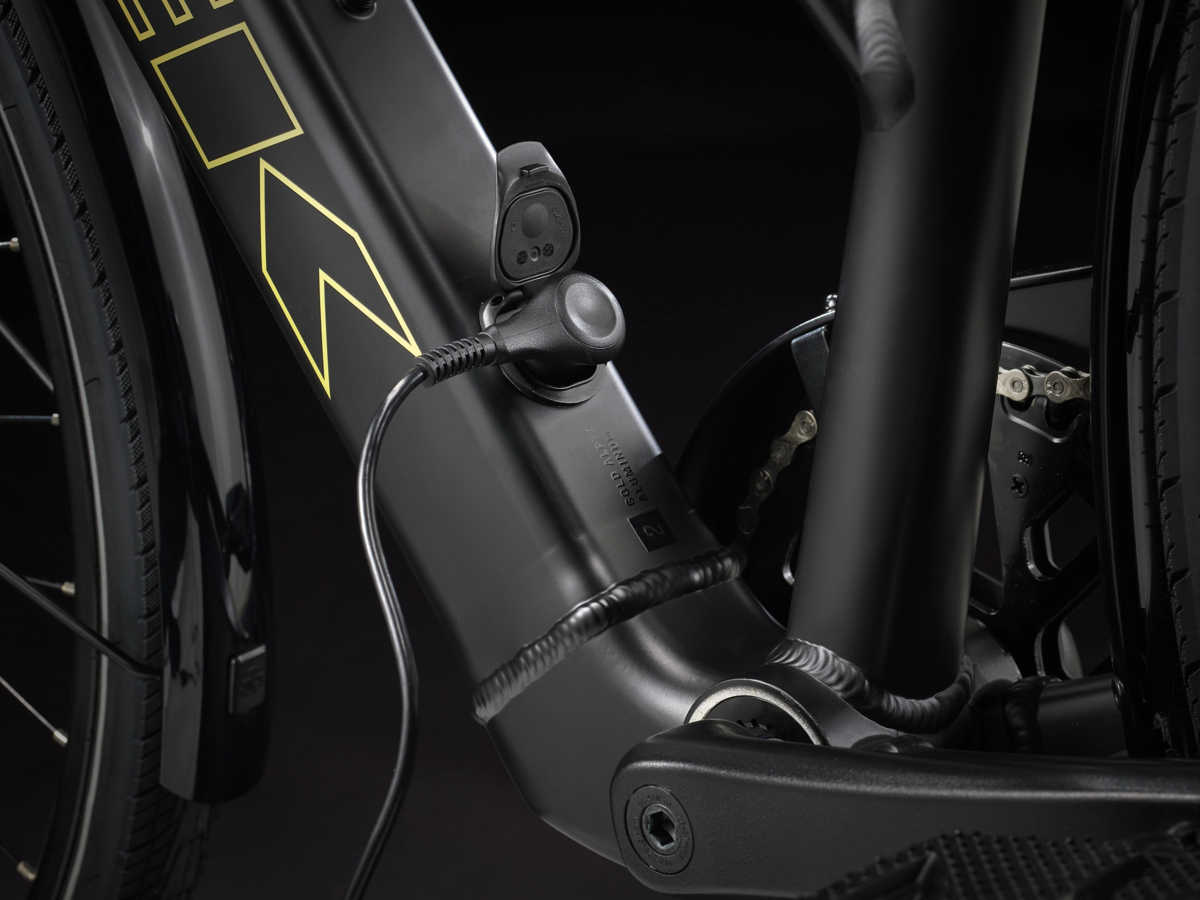

| Charger | 2A, 42V output, 100V-240V AC input |
* Subject to change without notice.
