Product Details

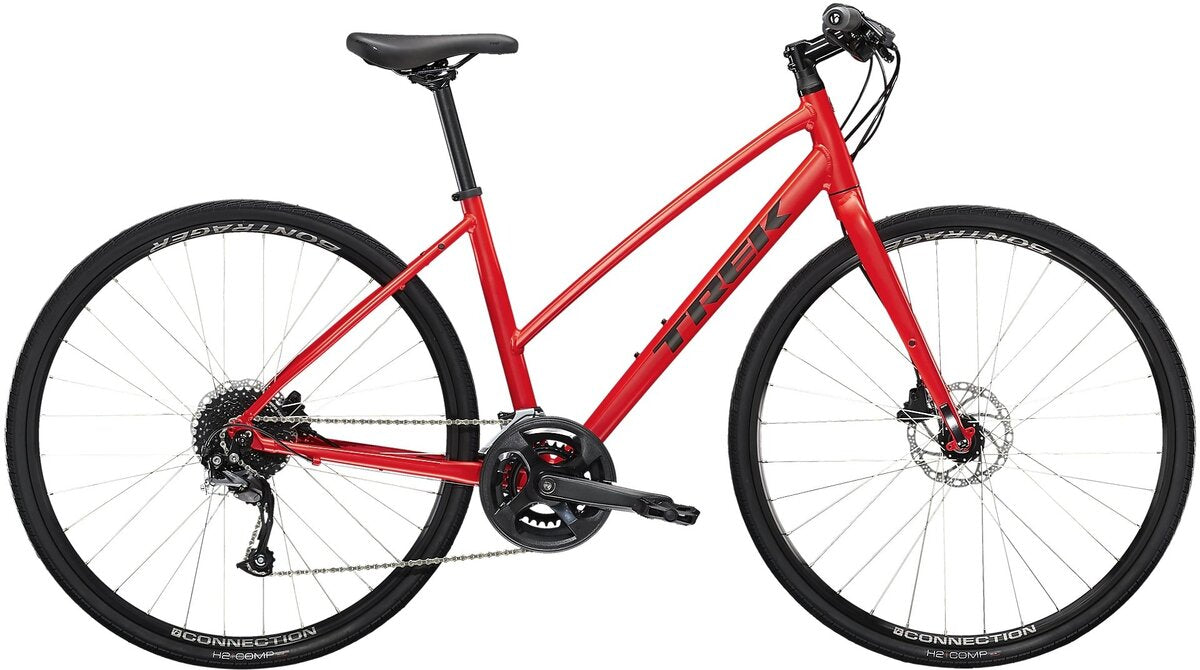

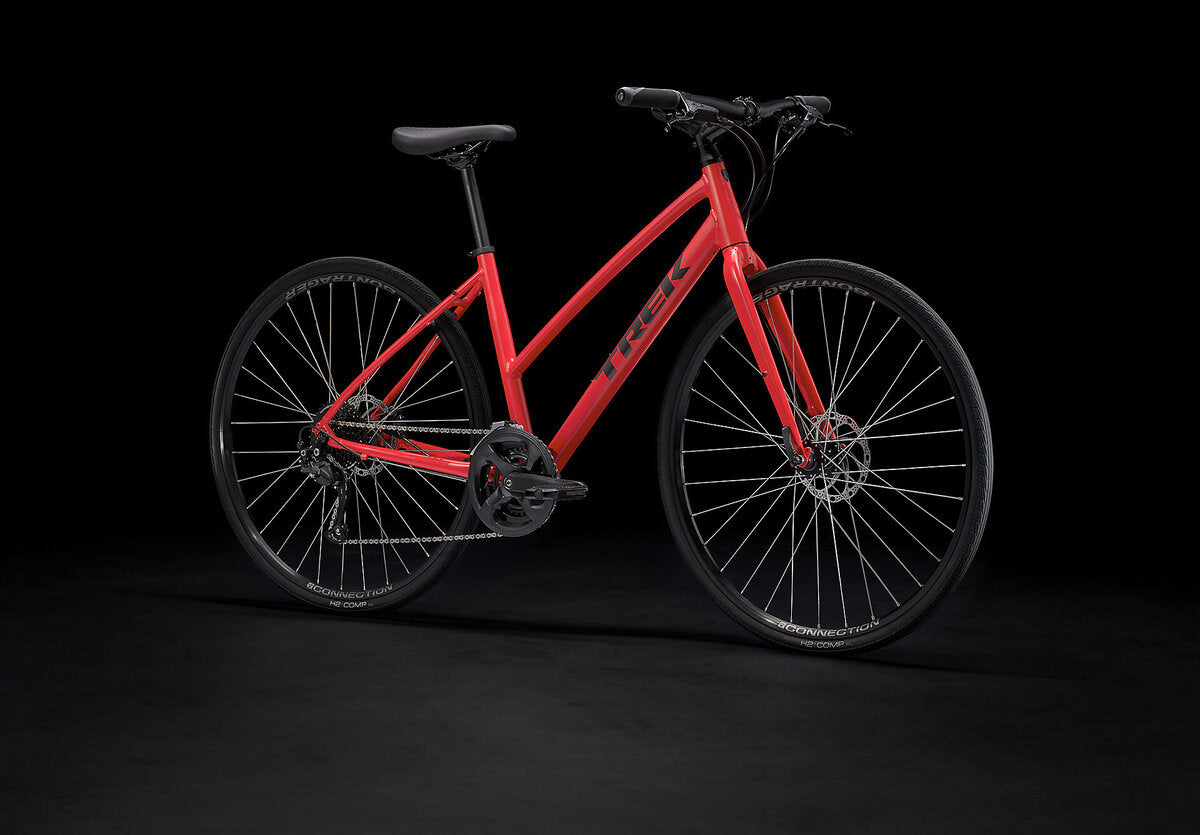

FX 2 Disc Stagger is a stylish and versatile hybrid bike with a classic stepthrough frame geometry that's easier to mount and dismount. Train, commute, or ride for fun with the wide range of speeds, reliable disc brakes that let you stop on a dime, and loads of mounts for accessories.
It's right for you if...
You want a single bike you can use for fitness rides, commutes, and cruises, and you value the confidence that comes from the superior all-weather stopping power of disc brakes.
The tech you get
A lightweight aluminum frame with stagger geometry that's easier to mount and dismount, hydraulic disc brakes for all-weather stopping power, a Shimano drivetrain with 18 speeds and a wide range of gearing so you're never pedaling too hard or too soft, and mounts that make it easy to accessorize your ride!
The final word
FX 2 Disc Stagger is a stylish, versatile hybrid bike that performs on training rides, trips to the market, or your morning commute. It has endless options for accessories, but what really sets this model apart is the disc brakes, which provide great stopping power in all weather conditions.
Why you'll love it
- The stepthrough frame makes it easy to hop on and go, and hop off when your ride is over
- More confident braking means bad weather doesn't have to keep you from enjoying your ride

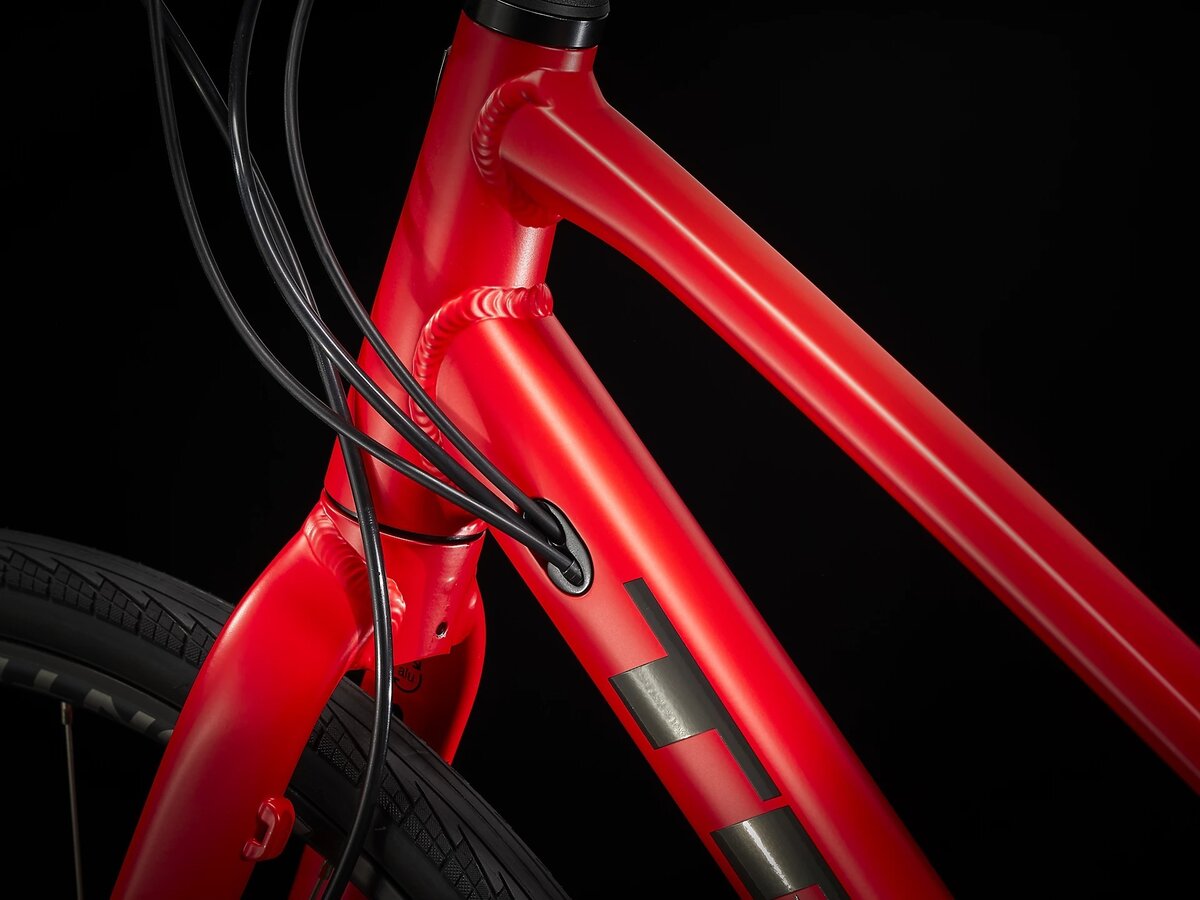

- The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
- It's easy to accessorize with racks, a kickstand, fenders, lights, and more!
- Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners.
Sizing
Geometry
| S | M | L | |
|---|---|---|---|
| A. Reach | 38.4cm | 38.9cm | 39.1cm |
| B. Stack | 55.4cm | 57.2cm | 59.5cm |
| C. Standover | 71.1cm | 75.7cm | 78.8cm |
| D. Effective Top Tube | 53.7cm | 55.3cm | 56.8cm |
| E. Head Tube Angle | 70.5° | 70.5° | 71.5° |
| F. Head Tube Length | 13cm | 15cm | 17cm |
| G. Seat Tube Angle | 74.5° | 74.0° | 73.5° |
| H. Seat Tube Length | 38.1cm | 44.5cm | 50.8cm |
| I. Bottom Bracket Height | 29.6cm | 29.6cm | 29.6cm |
| J. Bottom Bracket Drop | 6.5cm | 6.5cm | 6.5cm |
| K. Fork Rake/Offset | 5cm | 5cm | 5cm |
| L. Trail | 7.5cm | 7.5cm | 6.8cm |
| M. Wheelbase | 105.5cm | 106.7cm | 106.7cm |
| O. Chainstay Length | 45cm | 45cm | 45cm |
Specs

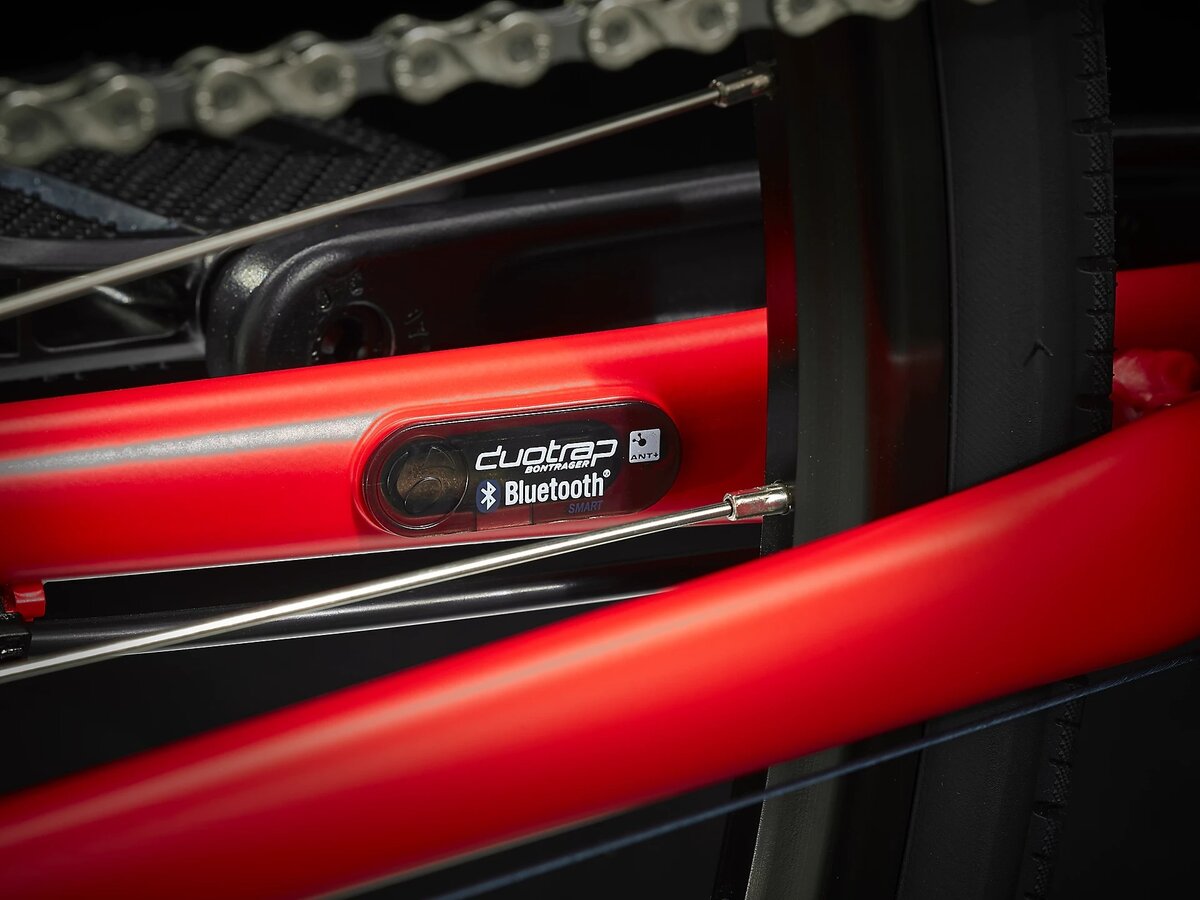

| Frame | Alpha Gold Aluminum, stagger top tube, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR |
|---|---|
| Fork | FX Alloy, flat mount disc, rack mounts, 405mm axle-to-crown, ThruSkew 5mm QR |

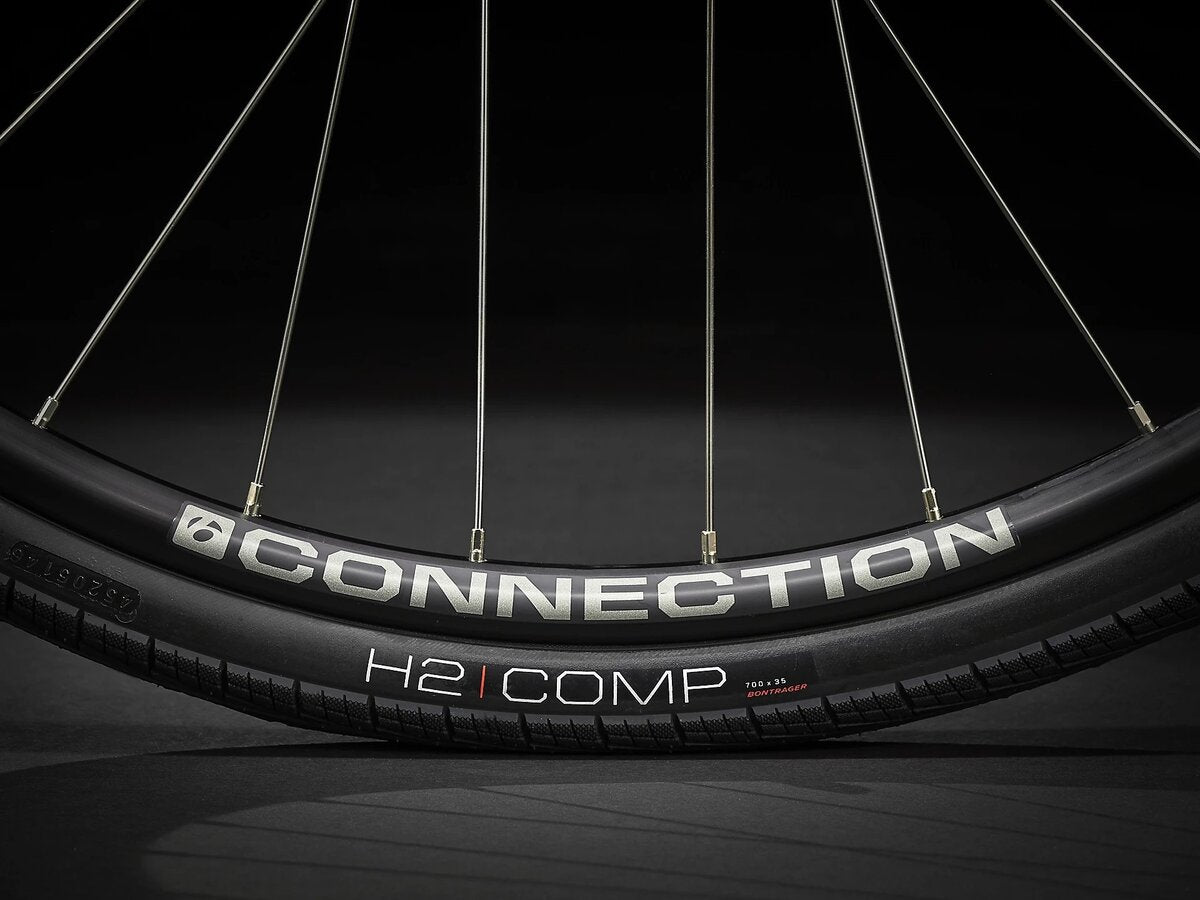

| Rims | Bontrager Connection, alloy, double-wall, 32-hole, schrader valve |
| Hubs |
Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Tires | Bontrager H2 Comp, wire bead, 30tpi, 700x35c |

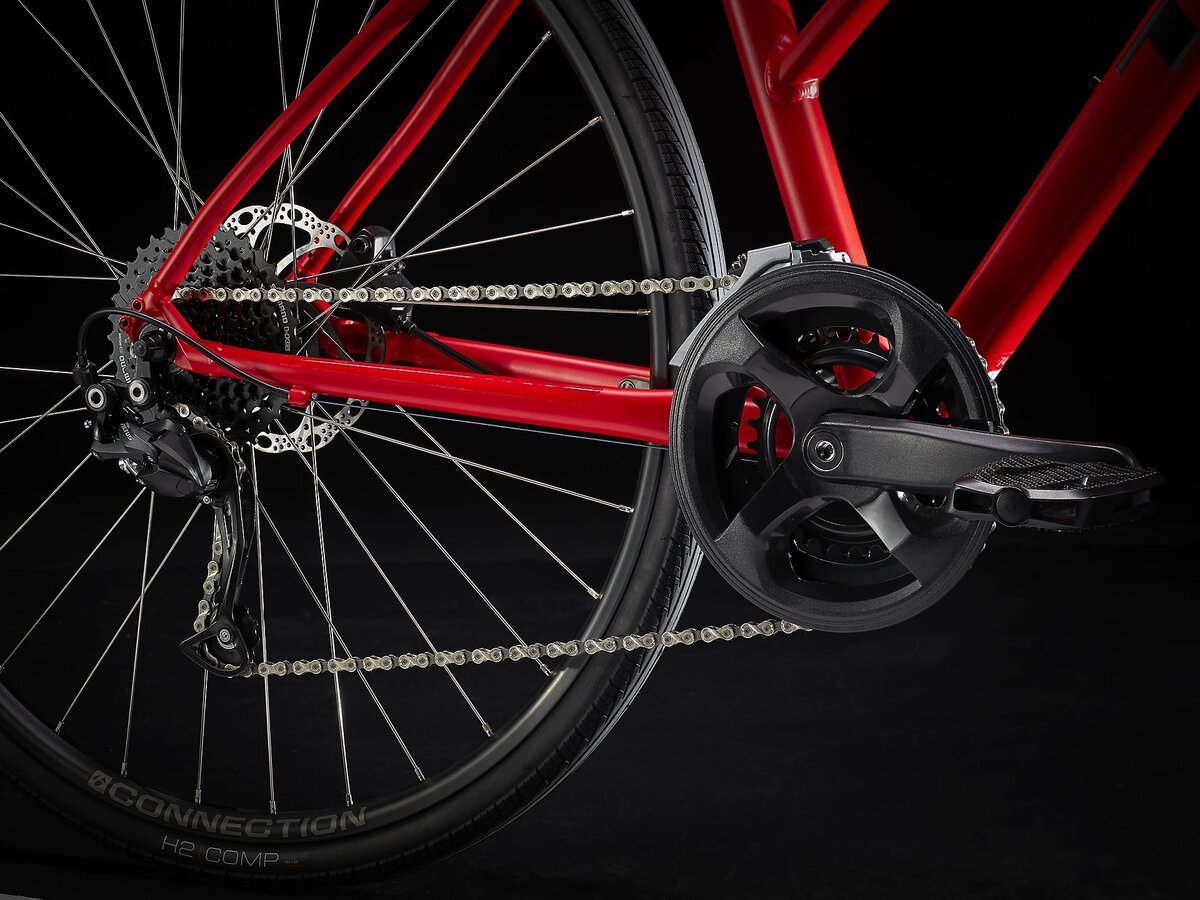

| Crankset | Forged alloy, 46/30, chainguard, 170mm length |
| Shifters | Shimano Altus M2010, 9 speed |
| Front Derailleur | Shimano Acera T3000, 34.9mm clamp, top swing, dual pull |
| Rear Derailleur | Shimano Altus M2000, long cage |
| Cassette/Freewheel | Shimano HG200, 11-36, 9 speed |
| Chain | KMC X9 |

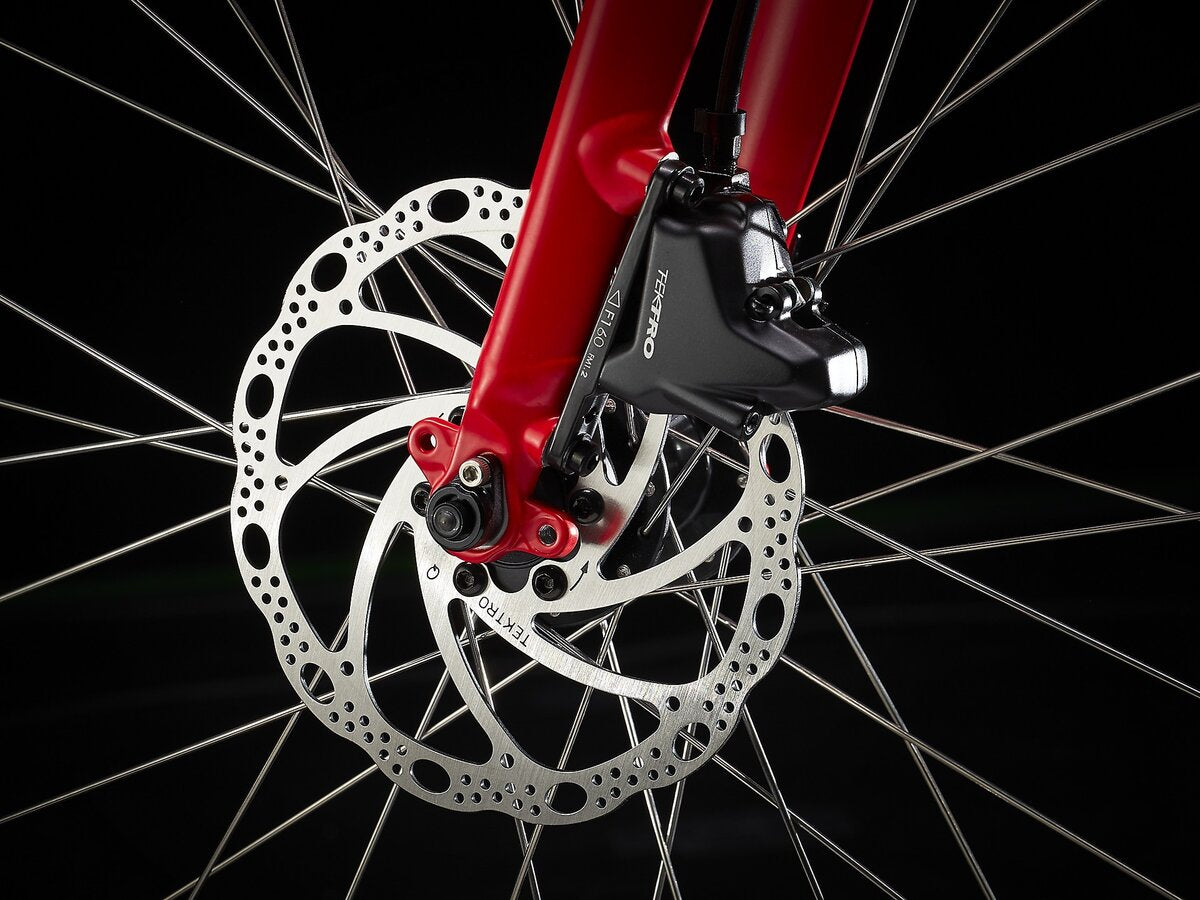

| Brakes | Tektro HD-R280 hydraulic disc, flat mount, 160mm rotor |

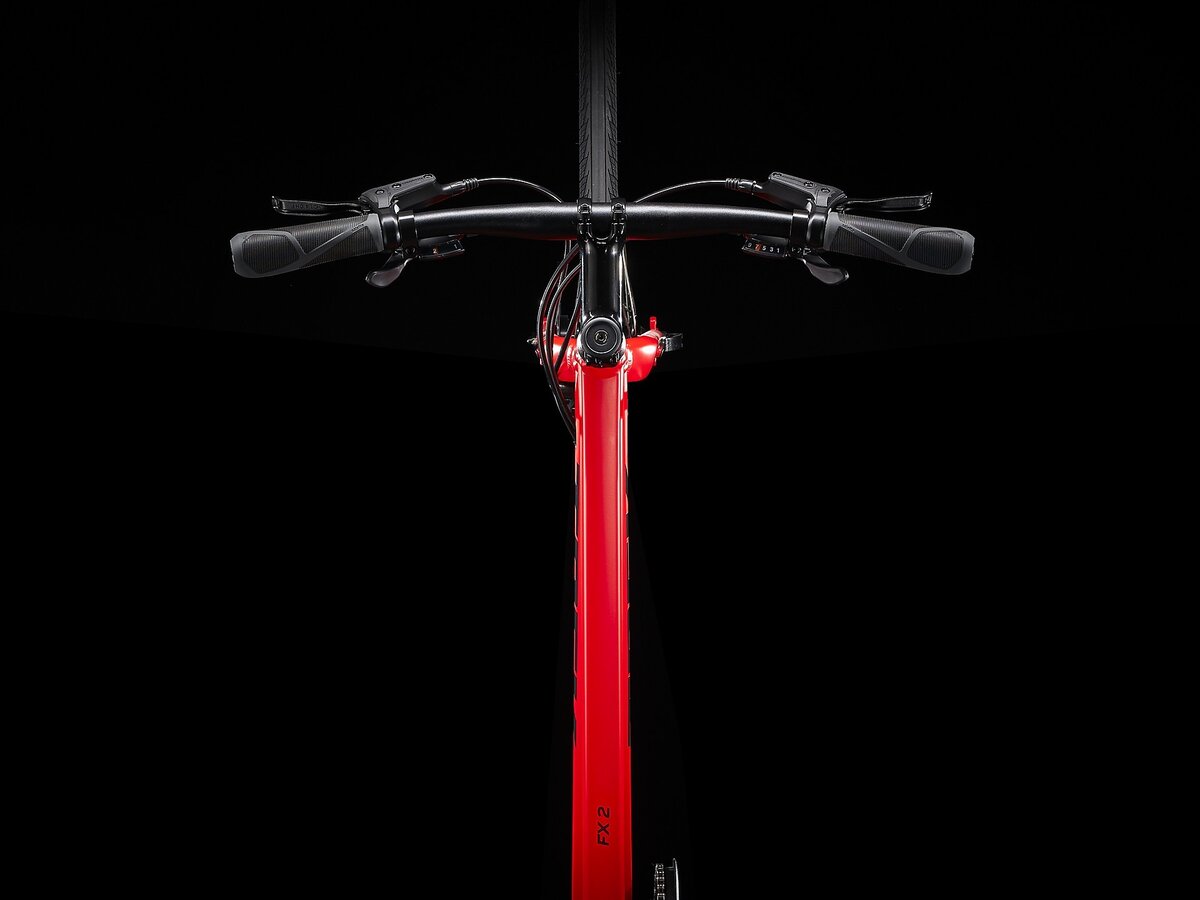

| Handlebars | Bontrager alloy, 31.8mm, 15mm rise |

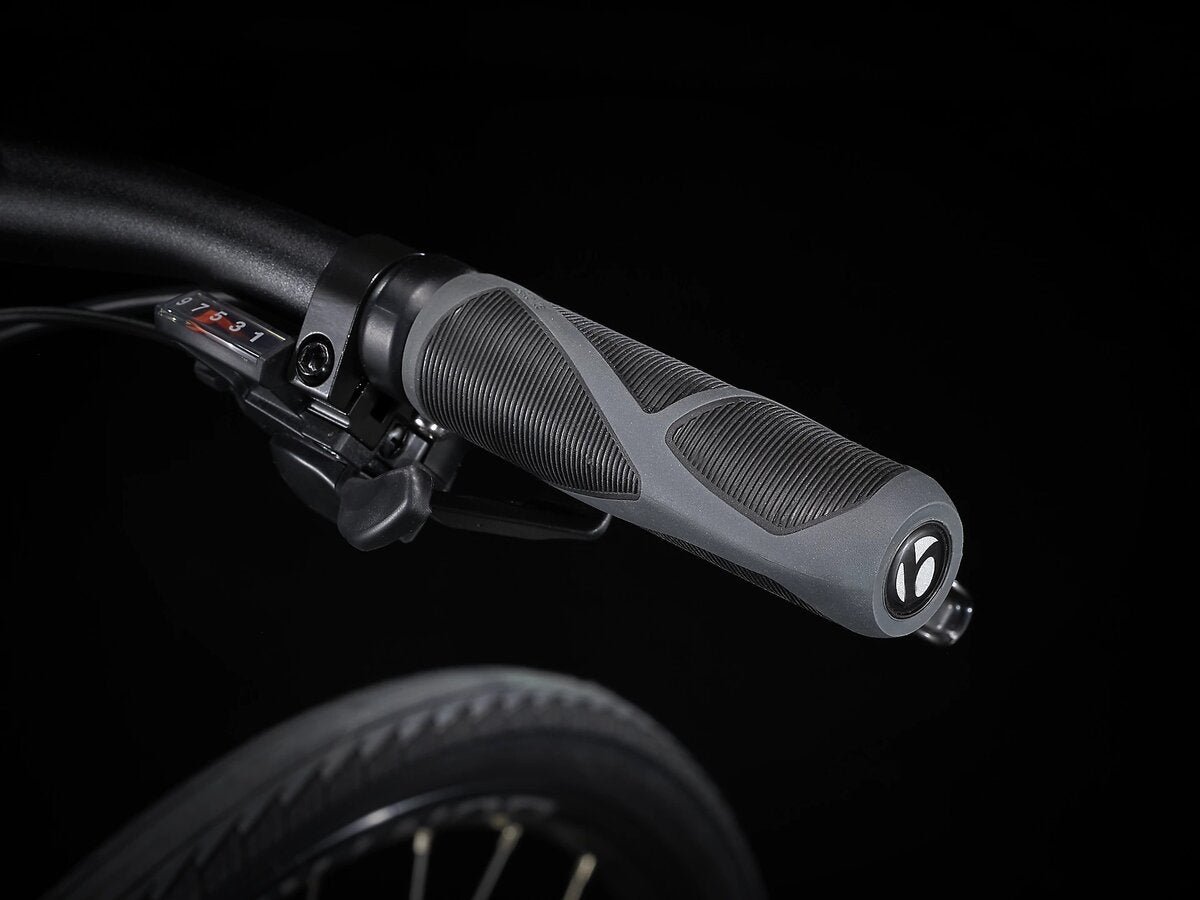

| Tape/Grips | Bontrager Satellite |
| Stem | Bontrager alloy, 31.8mm, Blendr compatible, |
| Headset | 1-1/8'' threadless, sealed cartridge bearings |
| Seatpost | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |

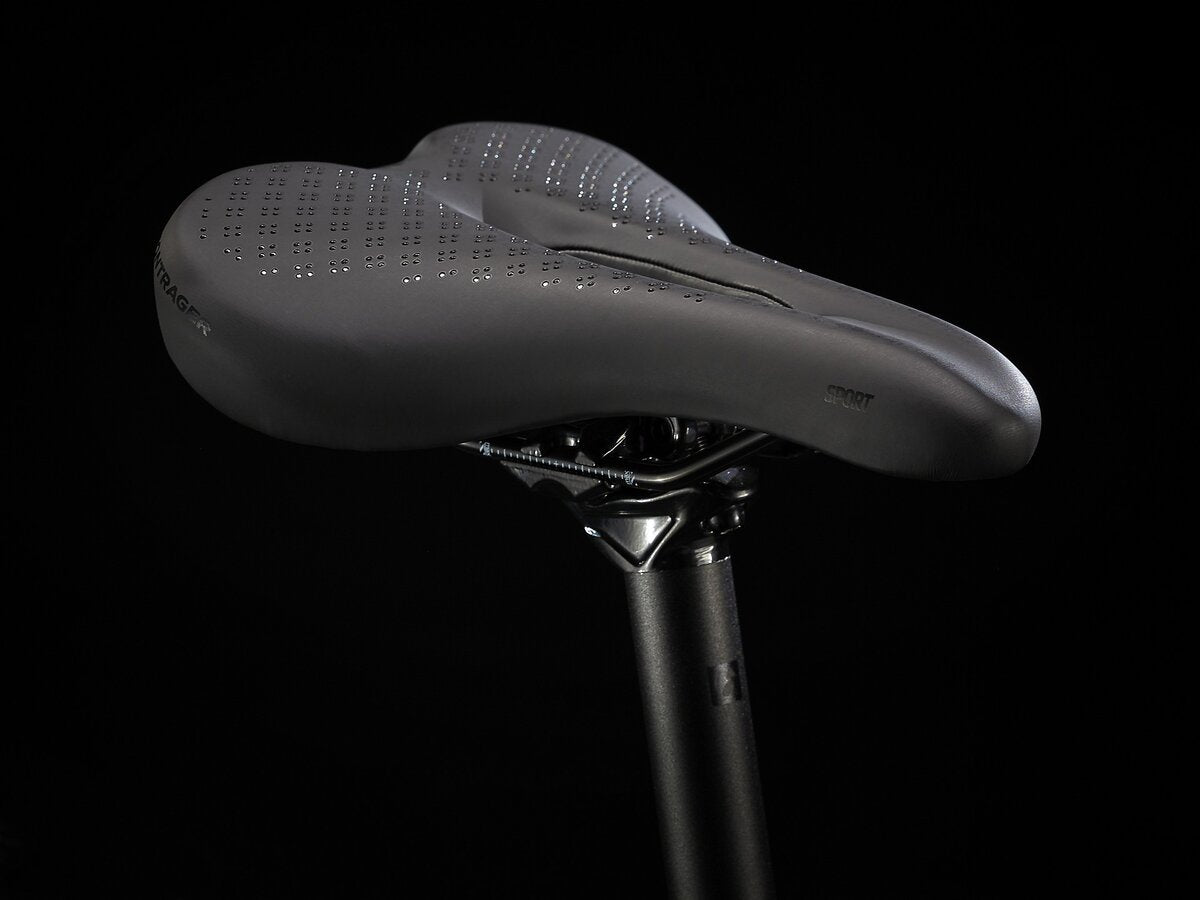

| Saddle | Bontrager Sport Women's |
| Pedals | Bontrager City pedals |
* Subject to change without notice.
